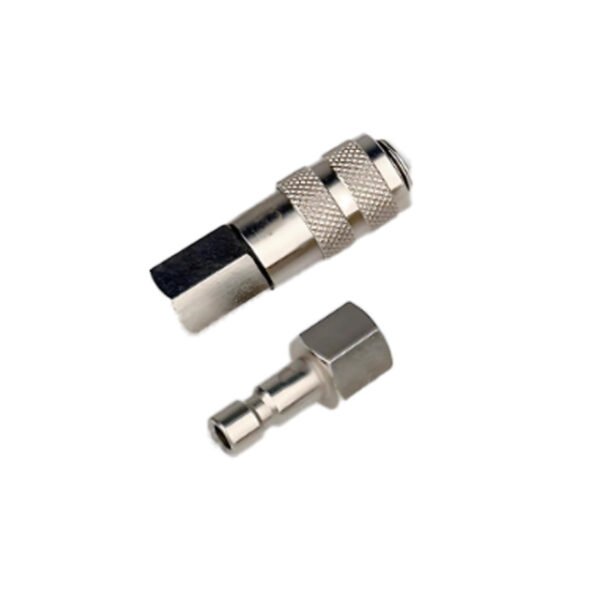

OSF+OPF American female quick coupler

Improve efficiency: switch between pneumatic tools in 10 seconds
Strong sealing performance; sealing leakage rate <0.1%, four-layer rubber sealing ring protection
Self-locking one-hand operation reduces the labor intensity of staff
Strong compatibility: There are internal thread style, external thread style, direct connection air pipe style, and each model can be connected to each other

SKU:

Model:	Interface thread specifications：	Model:	Interface thread specifications：
ASF-01	PT1/8	APF-01	PT1/8
ASF-02	PT1/4	APF-02	PT1/4
ASF-03	PT3/8	APF-03	PT3/8

Share with friends:

OSF+OPF American female quick coupler Introduction:

MYFEQD’s OSF+OPF American female quick coupler Introduction is a mini pneumatic quick connector with internal threads at both ends, suitable for pneumatic tools and pneumatic components with external thread interfaces. It adopts a mechanical lock structure, which can be connected and disassembled instantly, greatly reducing the labor intensity of manual installation.
Its overall structural material is all copper and nickel-plated, which is more beautiful, corrosion-resistant, wear-resistant, and not easy to rust. It has the inherent characteristics of copper material and strong thermal conductivity, which reduces the heat brought by air pressure flow and makes the pneumatic pressure flow more stable.
CNC precision-processed threads, its standard matching threads are PT (R, ZG) threads, which are PT1/8=01.PT1/4=02.PT3/8=03. It can also be adapted to M threads and G threads. MYFEQD can also undertake customized threads according to needs.

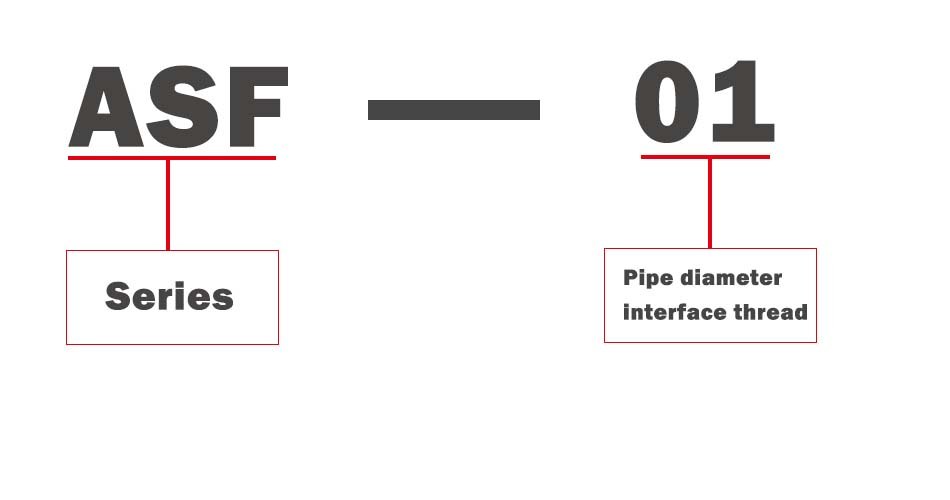

Order Code:

Technical parameters:

Fluid:	Air,If use liquid please contact factory
Max.proof Pressure:	1.32Mpa (13.5kgf/cm²）
Working Pressure Range:	0~0.9Mpa (0~10.2kgf/cm²）
Ambient Temperature:	0~60℃
Applicable Pipe:	PU/PA/PE/PEE Tube

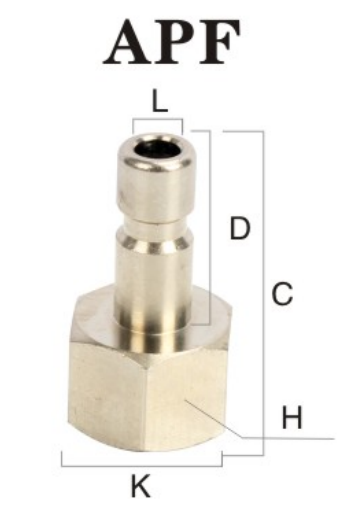

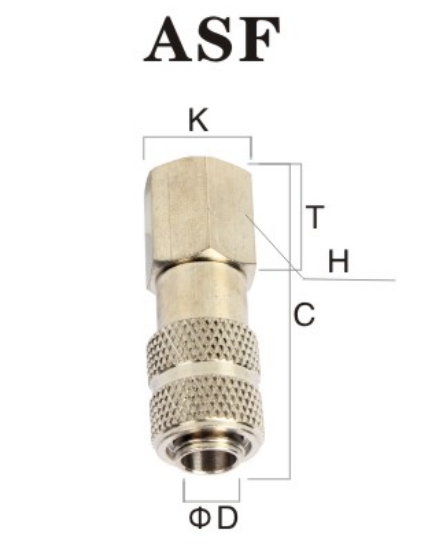

Selection Catalog：
