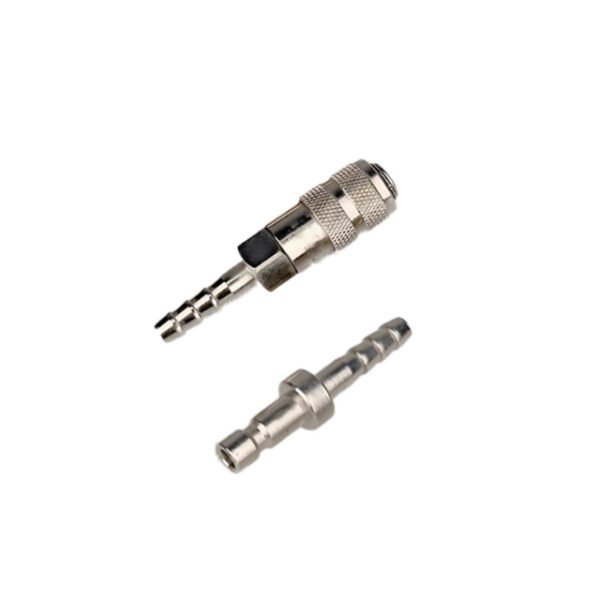

OSH+OPH American air quick coupler

Improve efficiency: switch between pneumatic tools in 10 seconds
Strong sealing performance; sealing leakage rate <0.1%, four-layer rubber sealing ring protection
Self-locking one-hand operation reduces the labor intensity of staff
Strong compatibility: There are internal thread style, external thread style, direct connection air pipe style, and each model can be connected to each other

SKU:

Share with friends:

OSH+OPH American air quick coupler Introduction:

MYFEQD’s OSH+OPH American air quick coupler Introduction: It is a miniature pneumatic quick coupler that directly connects pneumatic hoses at both ends, suitable for pneumatic components that quickly connect and disconnect air pressure. It adopts a mechanical locking structure that can be connected and disassembled instantly, greatly reducing the labor intensity of manual installation.
Its overall structural material is copper and nickel-plated, which is more beautiful, corrosion-resistant, wear-resistant, and not easy to rust. It has the inherent characteristics of copper material and has strong thermal conductivity, which reduces the heat brought by the air pressure flow and makes the air pressure flow more stable.
The sawtooth type process structure is commonly known as the pagoda pneumatic joint. It is suitable for connecting PU air pipes with an outer diameter of 6mm and an inner diameter of 4mm, an outer diameter of 8mm and an inner diameter of 6mm, and an outer diameter of 12mm and an inner diameter of 8mm.

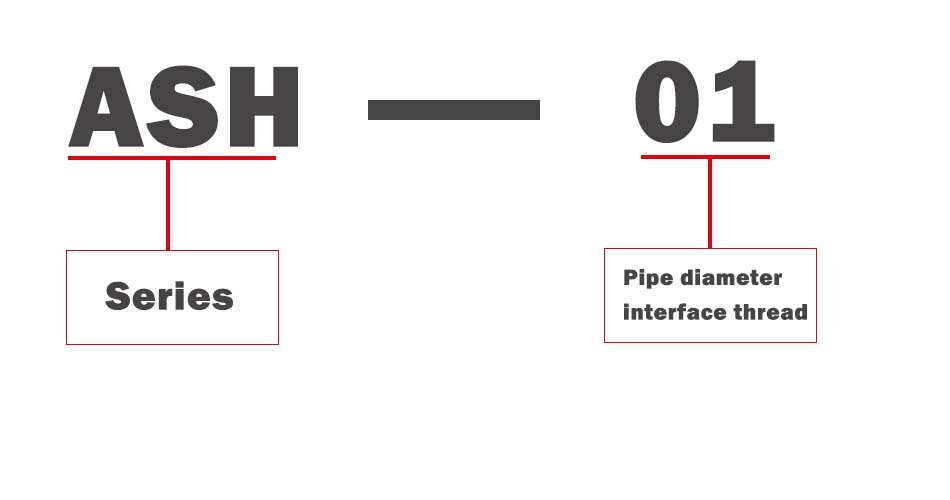

Order Code:

Technical parameters:

Fluid:	Air,If use liquid please contact factory
Max.proof Pressure:	1.32Mpa (13.5kgf/cm²）
Working Pressure Range:	0~0.9Mpa (0~10.2kgf/cm²）
Ambient Temperature:	0~60℃
Applicable Pipe:	PU/PA/PE/PEE Tube

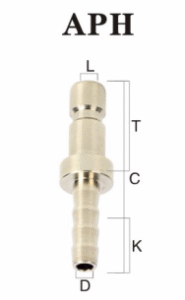

Selection Catalog :Unit: mm
