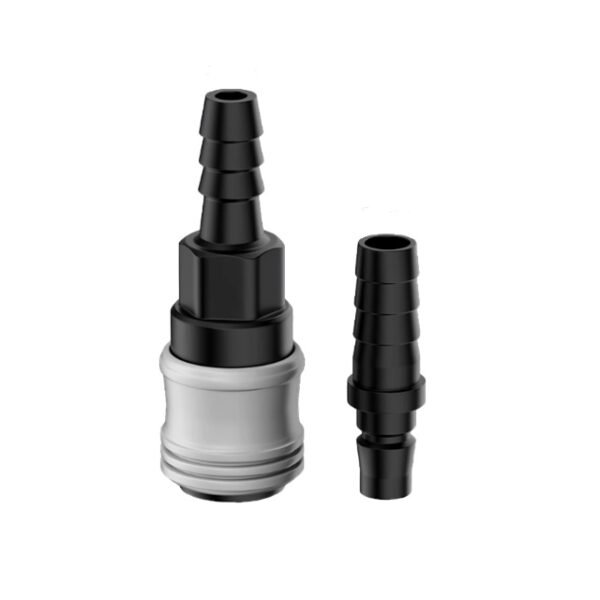

OSH+OPH Plastic steel air quick coupler

Improve efficiency: switch between pneumatic tools in 10 seconds
Strong sealing performance; sealing leakage rate <0.1%, four-layer rubber sealing ring protection
Self-locking one-hand operation reduces the labor intensity of staff
Strong compatibility: There are internal thread style, external thread style, direct connection air pipe style, and each model can be connected to each other

SKU:

Share with friends:

OSH+OPH Plastic steel air quick coupler Introduction:

MYFEQD’s OSH+OPH Plastic steel air quick coupler is a pneumatic quick coupler that is directly connected to the pneumatic hose at both ends. It is suitable for convenient and quick air pressure on and off. The mechanical locking structure can achieve instant connection and disassembly, greatly reducing the labor intensity of manual installation.
Its overall structure is made of plastic steel through die-casting, which is beautiful, corrosion-resistant, wear-resistant, high strength and not easy to rust. Its main feature is lightness.
Applicable to pneumatic hose PU/PA/PE/PEE.

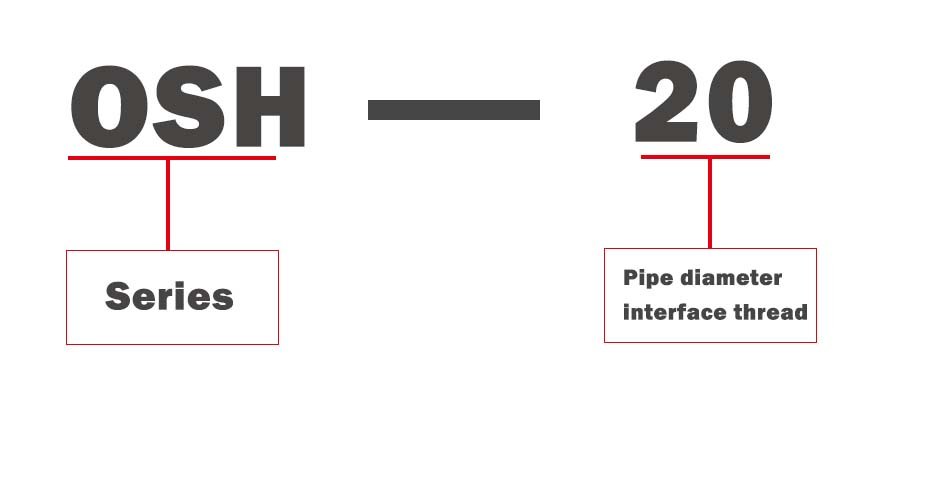

Order Code:

Technical parameters:

Fluid:	Air,If use liquid please contact factory
Max.proof Pressure:	1.32Mpa (13.5kgf/cm²）
Working Pressure Range:	0~0.9Mpa (0~10.2kgf/cm²）
Ambient Temperature:	0~60℃
Applicable Pipe:	PU/PA/PE/PEE Tube

Interface requirements:

OSH-20	It requires a pneumatic hose with an inner diameter of 8mm for connection.
OSH-30	It requires a pneumatic hose with an inner diameter of 10mm for connection.
OSH-40	It requires a pneumatic hose with an inner diameter of 12mm for connection.
OPH-20	It requires a pneumatic hose with an inner diameter of 8mm for connection.
OPH-30	It requires a pneumatic hose with an inner diameter of 10mm for connection.
OPH-40	It requires a pneumatic hose with an inner diameter of 12mm for connection.
