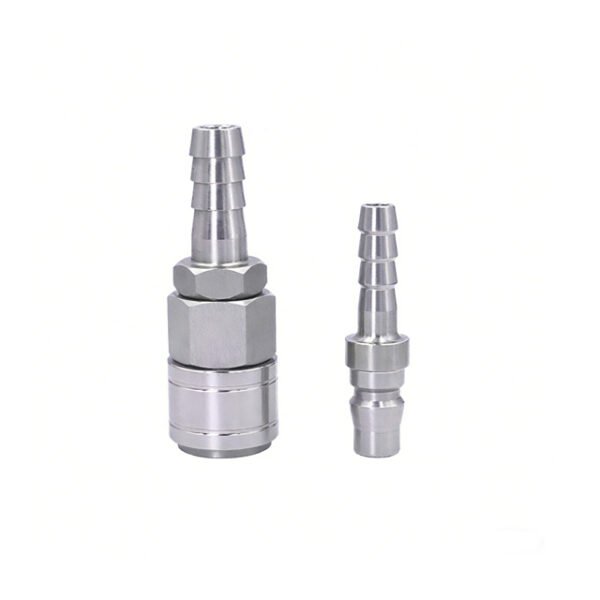

OSH+OPH Stainless steel air quick coupler

Improve efficiency: switch between pneumatic tools in 10 seconds
Strong sealing performance; sealing leakage rate <0.1%, four-layer rubber sealing ring protection
Self-locking one-hand operation reduces the labor intensity of staff
Strong compatibility: There are internal thread style, external thread style, direct connection air pipe style, and each model can be connected to each other

SKU:

Model:	Connecting pneumatic hose type：	Model:	Connecting pneumatic hose type：
OSH-20	PU Tube：12*8	OPH-20	PU Tube：12*8
OSH-30	PU Tube：14*10	OPH-30	PU Tube：14*10
OSH-40	PU Tube：16*12	OPH-40	PU Tube：16*12

Share with friends:

OSH+OPH Stainless steel air quick coupler Introduction:

MYFEQD’s OSH+OPH Stainless Steel Air Quick Coupler is a pneumatic quick coupler that directly connects pneumatic hoses at both ends, suitable for convenient and quick disconnection and connection of air pressure. It adopts a mechanical locking structure, which can achieve quick connection and disassembly, greatly reducing the labor intensity of manual installation.
Its overall structure is made of 304 stainless steel, which is more beautiful, corrosion-resistant, wear-resistant and not easy to rust. It has 4 layers of fluororubber sealing rings inside, which can withstand high temperatures of -20℃~200℃.
Connect various types of pneumatic hoses. Such as: PU/PA/PE/PEE/tube

Order Code:

Technical parameters:

Fluid:	Air,If use liquid please contact factory
Max.proof Pressure:	1.32Mpa (13.5kgf/cm²）
Working Pressure Range:	0~0.9Mpa (0~10.2kgf/cm²）
Ambient Temperature:	-20~200℃
Applicable Pipe:	PU/PA/PE/PEE Tube

Interface requirements:

OSH-20	It requires a pneumatic hose with an inner diameter of 8mm for connection.
OSH-30	It requires a pneumatic hose with an inner diameter of 10mm for connection.
OSH-40	It requires a pneumatic hose with an inner diameter of 12mm for connection.
OPH-20	It requires a pneumatic hose with an inner diameter of 8mm for connection.
OPH-30	It requires a pneumatic hose with an inner diameter of 10mm for connection.
OPH-30	It requires a pneumatic hose with an inner diameter of 12mm for connection.
