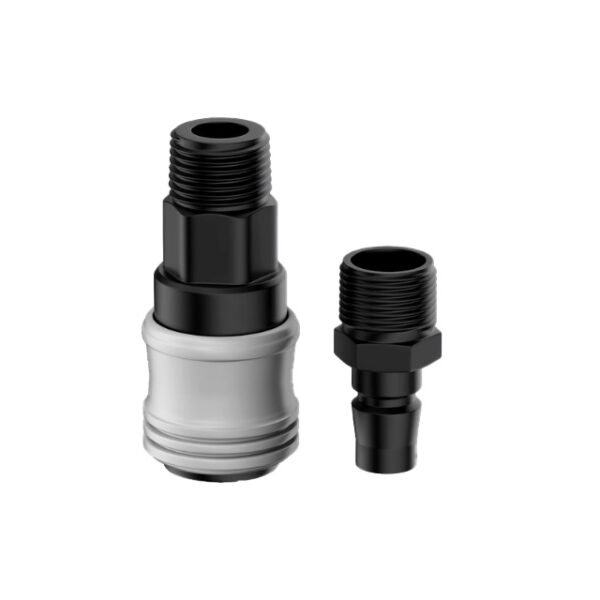

OSM+OPM Plastic steel quick coupler male

Improve efficiency: switch between pneumatic tools in 10 seconds
Strong sealing performance; sealing leakage rate <0.1%, four-layer rubber sealing ring protection
Self-locking one-hand operation reduces the labor intensity of staff
Strong compatibility: There are internal thread style, external thread style, direct connection air pipe style, and each model can be connected to each other

SKU:

Model:	Interface thread specifications：	Model:	Interface thread specifications：
OSM-20	PT1/4	OPM-20	PT1/4
OSM-30	PT3/8	OPM-30	PT3/8
OSM-40	PT1/2	OPM-40	PT1/2

Share with friends:

OSM+OPM Plastic steel quick coupler male Introduction:

MYFEQD’s OSM+OPM Plastic steel quick coupler male is a pneumatic quick connector with external thread connections on both ends, suitable for pneumatic tools and pneumatic components with internal thread interfaces. The mechanical locking structure allows for instant connection and disassembly, greatly reducing the labor intensity of manual installation.
Its overall structure is made of plastic steel through die-casting, which is beautiful, corrosion-resistant, wear-resistant, high strength and not easy to rust. Its main feature is lightness.
Its standard matching thread is PT (R, ZG) thread, which are PT1/8=01, PT1/4=02, and PT3/8=03. It can also be matched with M thread and G thread. MYFEQD can also undertake customized thread according to requirements.

Order Code:

Technical parameters:

Fluid:	Air,If use liquid please contact factory
Max.proof Pressure:	1.32Mpa (13.5kgf/cm²）
Working Pressure Range:	0~0.9Mpa (0~10.2kgf/cm²）
Ambient Temperature:	0~60℃
Applicable Pipe:	PU/PA/PE/PEE Tube

Interface requirements:

The threaded end of the OSM-20 female socket + OSM20 male plug is approximately 13mm, and the connecting internal thread component is PT1/4 thread.
The threaded end of the OSM-30 female socket + OSM30 male plug is approximately 16mm, and the connecting internal thread component is PT3/8 thread.
The threaded end of the OSM-40 female socket + OSM40 male plug is approximately 20mm, and the connecting internal thread component is PT3/8 thread.
