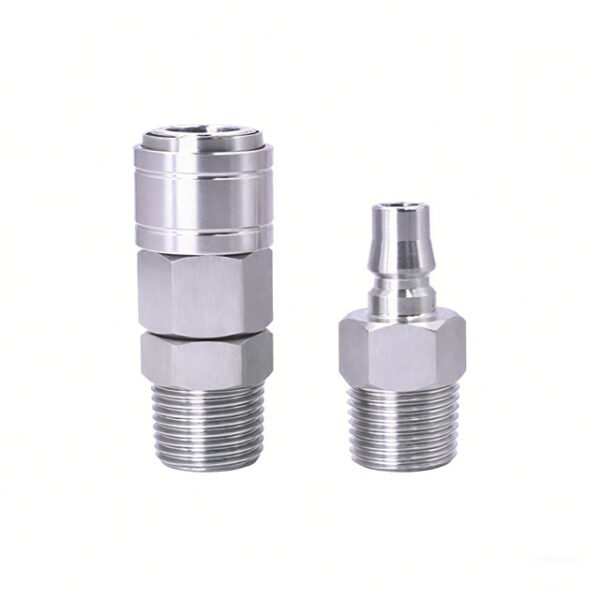

OSM+OPM Stainless steel quick coupler male

Improve efficiency: switch between pneumatic tools in 10 seconds
Strong sealing performance; sealing leakage rate <0.1%, four-layer rubber sealing ring protection
Self-locking one-hand operation reduces the labor intensity of staff
Strong compatibility: There are internal thread style, external thread style, direct connection air pipe style, and each model can be connected to each other

SKU:

Model:	Interface thread specifications：	Model:	Interface thread specifications：
OSM-10	PT1/8	OPM-10	PT1/8
OSM-20	PT1/4	OPM-20	PT1/4
OSM-30	PT3/8	OPM-30	PT3/8
OSM-40	PT1/2	OPM-40	PT1/2
OSM-600	PT3/4	OPM-600	PT3/4
OSM-800	G1	OPM-800	G1

Share with friends:

OSM+OPM Stainless steel quick coupler male Introduction:

MYFEQD’s OSM+OPM Stainless steel quick coupler male is a pneumatic quick coupler with external thread connections at both ends, suitable for pneumatic tools and pneumatic components with internal thread interfaces. It adopts a mechanical locking structure, which can achieve quick connection and disassembly, greatly reducing the labor intensity of manual installation.
Its overall structure is made of 304 stainless steel, which is more beautiful, corrosion-resistant, wear-resistant and not easy to rust. It has 4 layers of fluororubber sealing rings inside, which can withstand high temperatures of -20℃~200℃.
CNC precision-machined threads, its standard compatible threads are PT (R, ZG) threads, which are PT1/8=01.PT1/4=02.PT3/8=03. It can also be adapted to M threads and G threads. MYFEQD can also undertake customized threads as required.

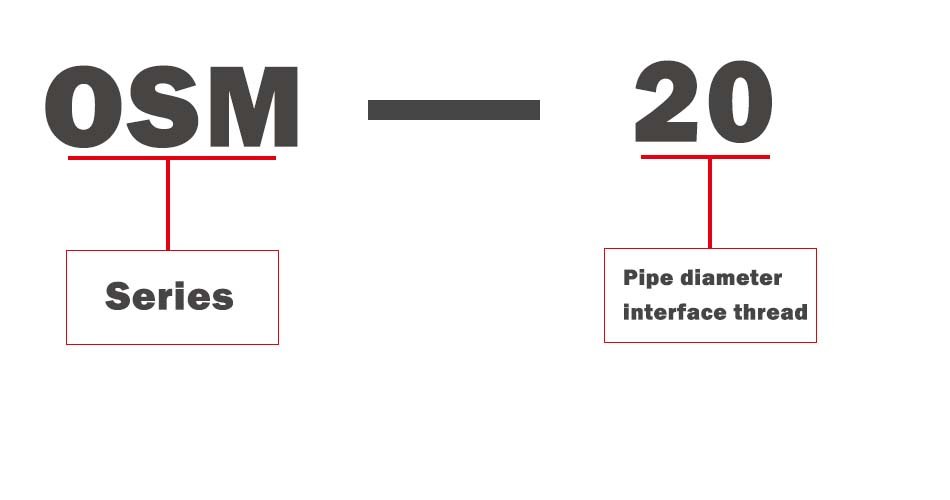

Order Code:

Technical parameters:

Fluid:	Air,If use liquid please contact factory
Max.proof Pressure:	1.32Mpa (13.5kgf/cm²）
Working Pressure Range:	0~0.9Mpa (0~10.2kgf/cm²）
Ambient Temperature:	-20~200℃
Applicable Pipe:	PU/PA/PE/PEE Tube

OSM10+OPM10 is suitable for pneumatic tools with internal thread PT1/8 interface.
OSM20+OPM20 is suitable for pneumatic tools with internal thread PT1/4 interface.
OSM30+OPM30 is suitable for pneumatic tools with internal thread PT3/8 interface.
OSM40+OPM40 is suitable for pneumatic tools with internal thread PT1/2 interface.
OSM600+OPM600 is suitable for pneumatic tools with internal and external thread PT3/4 interface.
OSM800+OPM800 is suitable for pneumatic tools with internal and external thread PT1 inch interface.
