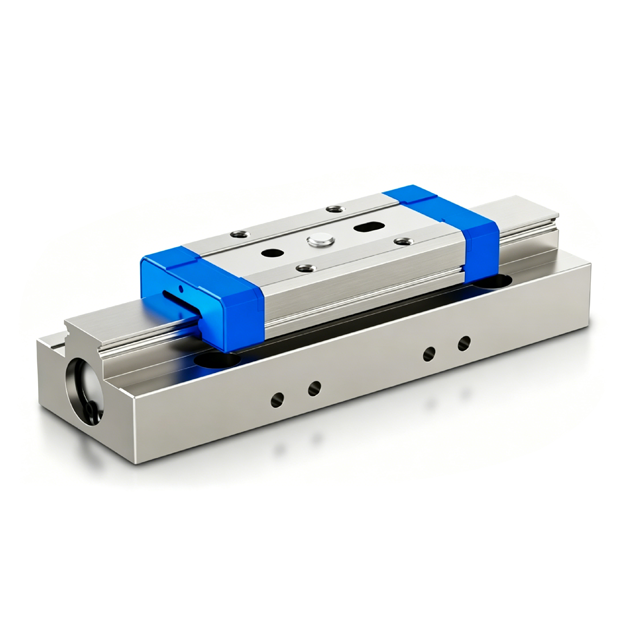

HGS Series Miniature Precision Slide Cylinder

HGS Series Miniature Precision Slide Cylinder

The guide rails are made of special stainless steel, offering high rigidity and corrosion resistance.
The connecting pins are made of high-strength alloy steel, providing impact resistance and a long service life.

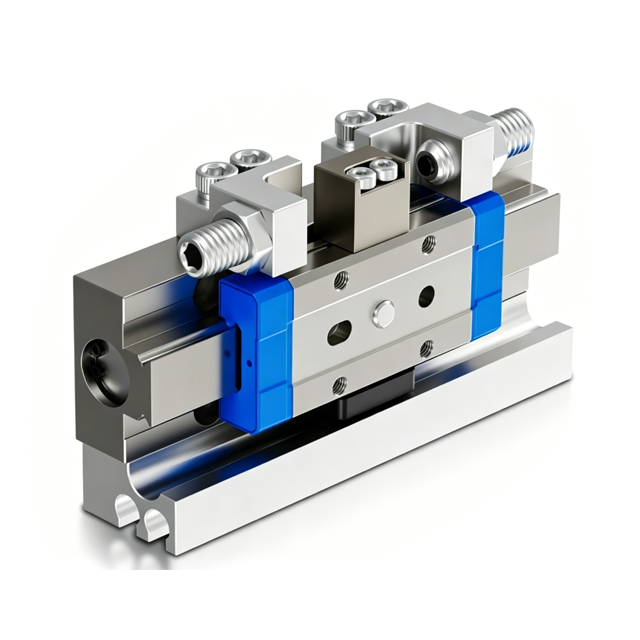

An adjustable stroke mechanism is available as an option and can directly replace the hydraulic shock absorber.
The guide rails feature excellent straightness and rotational accuracy.
Magnetic sensing accessories are available as options across the entire product range.
The body and slider are equipped with locating pin holes to effectively enhance installation accuracy and improve consistency in positioning during repeated disassembly and reassembly.

Share with friends:

HGS series miniature precision slide cylinder is a compact pneumatic actuator from AirTAC, specifically designed for applications requiring high-precision positioning within confined installation spaces. Characterized by extreme compactness, high precision, high rigidity, and a maintenance-free design, it is a prime choice for micro-precision automation sectors—such as 3C electronics, semiconductors, and medical instrumentation—perfectly meeting the needs for compact integration and high-precision movement in miniature equipment.

The linear guideways utilize special stainless steel and feature high rigidity.

The connecting pin is made of high-strength alloy steel, offering impact resistance and a long service life.

An optional adjustable stroke device is available, allowing for direct replacement of the hydraulic shock absorber.

Sensor mounting grooves are provided on both sides of the body, making it convenient to install magnetic switch sensors.

The guide rail features excellent straightness and non-rotating accuracy.

All models in the series feature sensor mounting grooves.

The main body and the slider are equipped with locating pin holes, effectively enhancing installation accuracy and improving consistency in positioning during repeated disassembly and reassembly.

Technical Specifications

Bore diameter (mm)		6	8	10	12
Forms of exercise		Double-acting type
Working Medium		Air (filtered through a 40 µm mesh screen)
Operating pressure range	φ6/8/10	0.25~0.7Mpa(36~100psi)(2.5~7.0bar)
	φ12	0.2~0.7Mpa(29~100psi)(2.0~7.0bar)
Guaranteed pressure resistance		1.2Mpa（175psi)(12.0bar)
Buffering Form		Fixed cushioning at both ends		Fixed cushioning at both ends/Hydraulic Buffer Damping
Operating Temperature		-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Is the throttle being applied?		NO Need
Operating Speed Range		50–500 mm/s
Stroke Tolerance Range		+0.5
Compatible with magnetic switch sensors		DMSH/EMSH
Interface thread size		M3*0.5	M5*0.8

Standard Stroke

Inner diameter mm (bore diameter)	Standard Stroke（mm）	Maximum Stroke
6	5.10	10
8	5.10.15.20	20
10	5.10.15.20	20
12	5.10.15.20.25	25

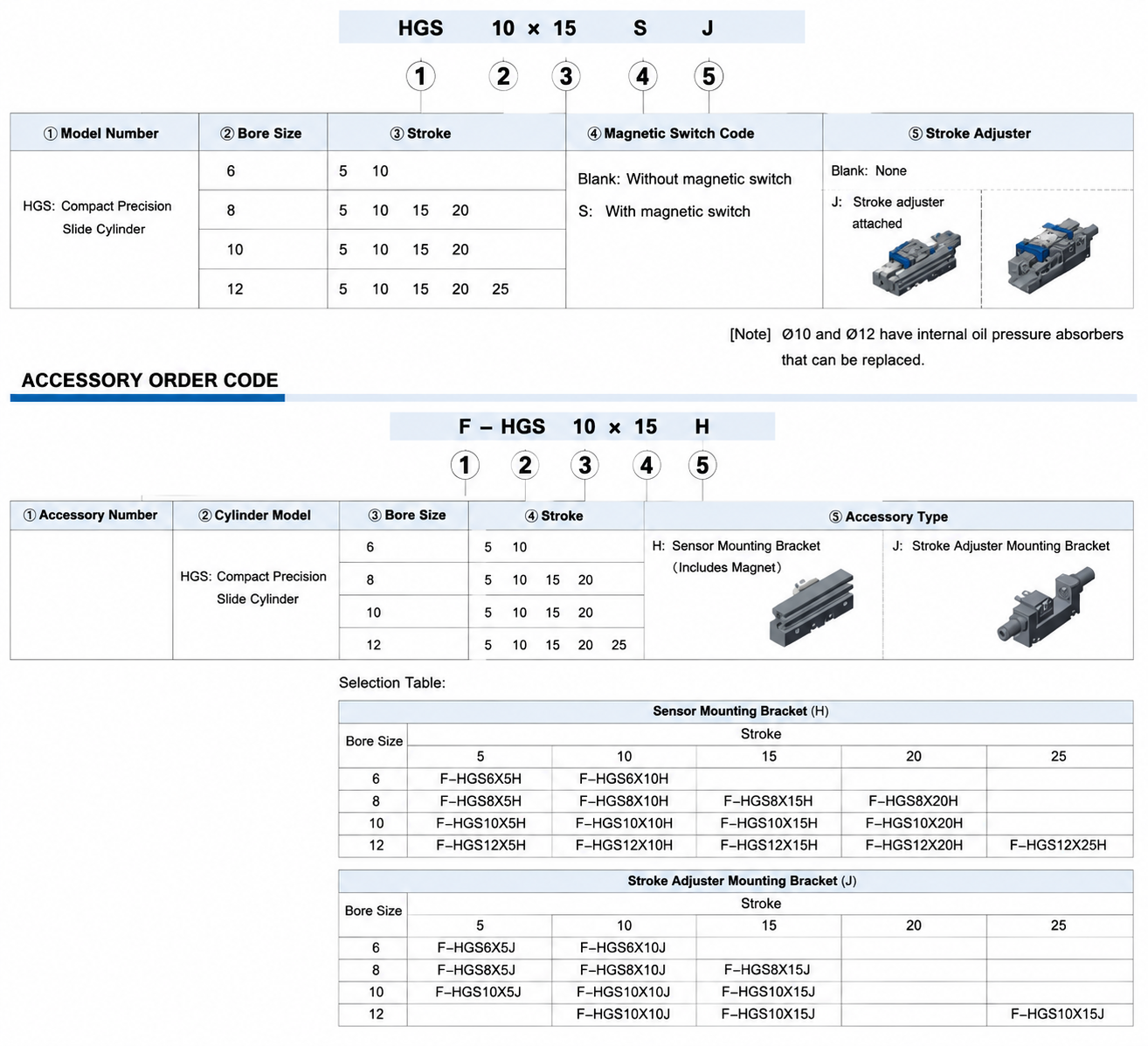

HGS Series Miniature Precision Slide Cylinder Finished Product Order Code

Platform accuracy


Model		HGS6	HGS8	HGS10	HGS12
Parallelism	The C-side corresponding to the A-side	0.02
	The D-side corresponding to the B-side	0.02
Travel parallelism	The C-side corresponding to the A-side	0.004
	The D-side corresponding to the B-side	0.004
Tolerance for dimension E		±0.05
Tolerance for dimension F		±0.05

Maximum permissible load weight

Model	HGS6	HGS8	HGS10	HGS12
No stroke adjustment device	0.3kg	0.3kg	0.8kg	1.2kg
Equipped with a stroke adjustment device	0.2kg	0.3kg	0.8kg	1.2kg
Equipped with a hydraulic damping device	..	..	1.6kg	2.0kg

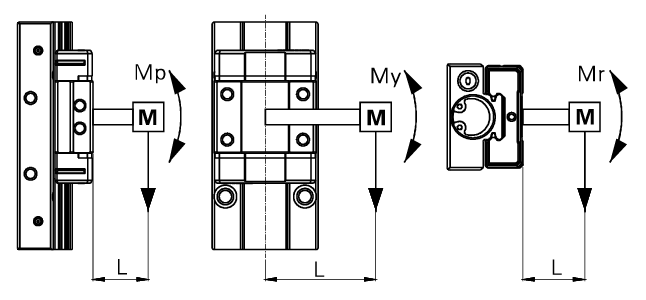

Maximum permissible torque


Model	Maximum permissible torque N.m
	Pitching moment Mp	Oscillating torque My	Rolling moment Mr
HGS 6X5	0.42	0.42	0.87
HGS 6X10
HGS 8X5	0.42	0.42	0.87
HGS 8X10
HGS 8X15	1.7	1.7	1.8
HGS 8X20
HGS 10X5	1.2	1.4	2.3
HGS 10X10
HGS 10X15	2.8	3.1	3.3
HGS 10X20
HGS 12X5	2.4	2.9	4.7
HGS 12X10
HGS 12X15
HGS 12X20	6.5	7.7	7.3
HGS 12X25
