stainless steel pneumatic male fittings - Image 2

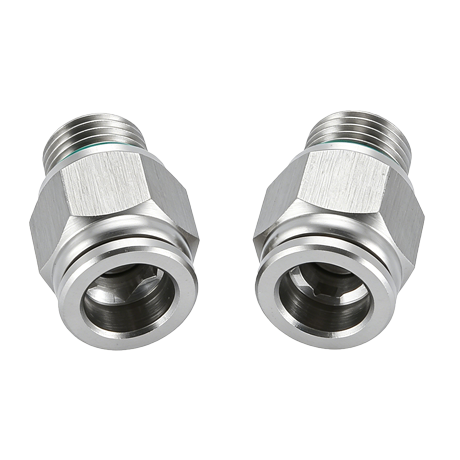

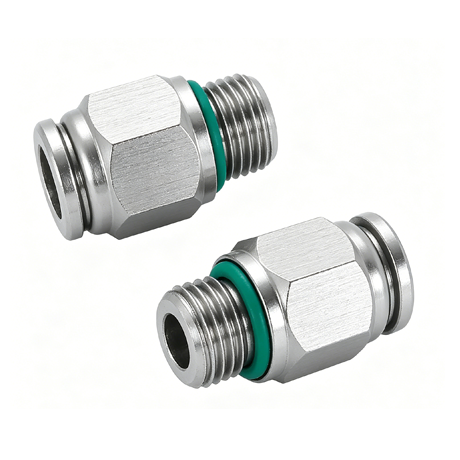

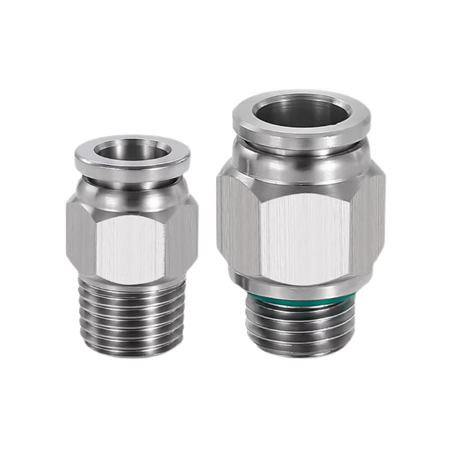

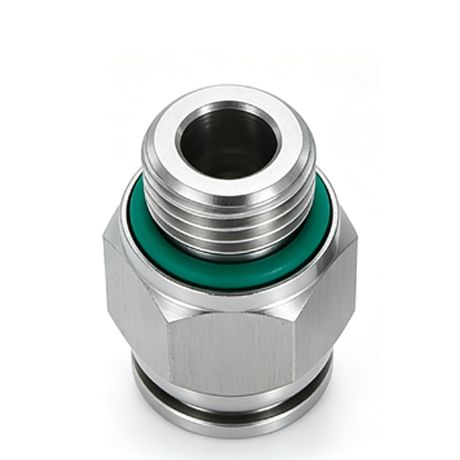

stainless steel pneumatic male fittings

Easy to install and remove—simply insert for a quick, one-step fit.
Constructed from 304 stainless steel, it is oxidation-resistant, rust-proof, and resistant to acids and alkalis.
Utilizes fluororubber sealing rings, offering high-temperature resistance with a temperature range of -20°C to 200°C.

Share with friends:

Stainless steel pneumatic male fittings is the most widely used and versatile type of connector within the realm of pneumatic quick-connect fittings.

Featuring a threaded connection at one end and a quick-connect port for tubing at the other, it offers convenient and efficient installation.

It enables the rapid serial connection—via pneumatic tubing—of various components such as pneumatic cylinders, solenoid valves, and oil-water separators, thereby utilizing compressed air pressure to power the system’s actuators; as such, it serves as an indispensable and critical accessory within pneumatic circuits.

Constructed from stainless steel and featuring an internal fluororubber sealing ring, this pneumatic fitting offers exceptional environmental adaptability, ensuring stable performance even under complex operating conditions. It combines resistance to high temperatures, corrosion, acids, alkalis, and abrasion, making it suitable for a wider range of applications and ensuring a longer service life.

Product Specifications:

Product Name:	stainless steel pneumatic male fittings	Product Material:	S304/S316
Product Series:	PC Passthrough Series	Pressure Range:	0-1.2Mpa
Applicable Hoses:	PU Hose/PE Hose	Temperature Range:	-20°C~200°C
Features:	Resistant to high and low temperatures, acids and alkalis, corrosion, and aging.

Thread Reference Chart

British Terminology	Chinese Terminology	Standard Nominal	External Thread Diameter	Internal thread diameter
G1/8	01（1 Point）	DN6	9.5±0.2 mm	8.8±0.2 mm
G1/4	02（2 Point）	DN8	12.5±0.3 mm	11.5±0.3 mm
G3/8	03（3 Point）	DN10	16.2±0.3 mm	15.3±0.3 mm
G1/2	04（4 Point）	DN15	20.3±0.3 mm	19.5±0.3 mm
G3/4	06（6 Point）	DN20	25.7±0.5 mm	24±0.5 mm
G1	10（1 Cun）	DN25	32.5±0.5 mm	30.5±0.5 mm

Product Structure

Product Applications

Widely applied in harsh and hazardous environments such as automotive manufacturing, chemical production, pharmaceuticals, and new energy lithium-ion battery sectors.

To learn more about stainless steel push-in fittings, please contact us. With 15 years of knowledge and experience in the pneumatic industry, we are your trusted experts in pneumatic systems.
