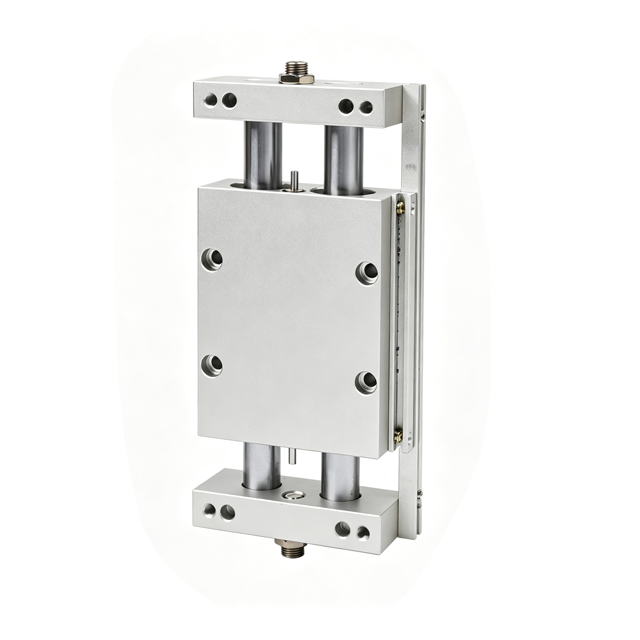

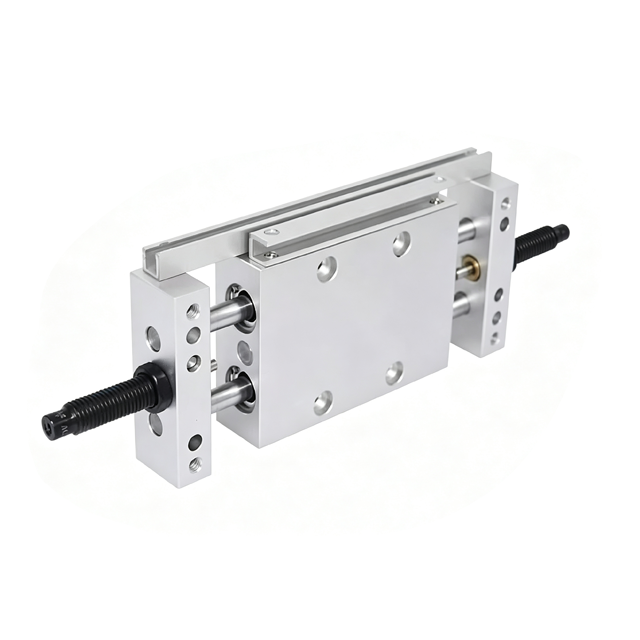

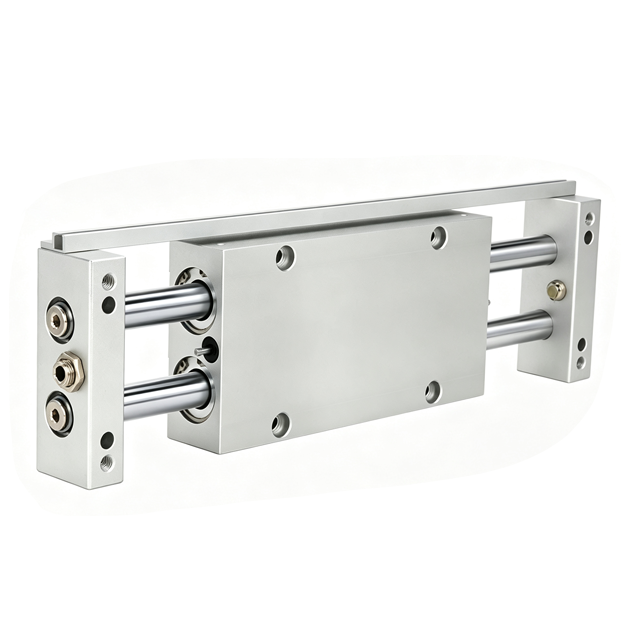

STW Series air slide cylinder

Both the slider and the main body can be mounted, ensuring ease of use;
Three sets of air intake and exhaust ports are available for selection, facilitating piping connections;
The dual-piston rod structure provides superior resistance to bending and torsion, allowing the cylinder to withstand significant dynamic and lateral loads;
Integrated cushioning devices, such as hydraulic shock absorbers, effectively reduce impact velocity and extend the cylinder’s service life.

Share with friends:

STW Series air slide cylinder (comprising the STWA fixed-plate type and STWB fixed-body type) consists of double-acting slide table cylinders featuring dual-rod guidance and synchronized dual-piston-rod drive. Designed as a direct alternative to the original AirTAC STW slide table, these cylinders utilize a parallel dual-rod sliding guide structure to deliver high torsional rigidity and substantial lateral load capacity. Positioned as economical, heavy-duty transfer cylinders—and distinct from the precision HLQ/HLS ball/roller slide tables—they are optimized for general-purpose linear transfer applications requiring long strokes, high load-bearing capacity, and cost-effectiveness.

Comes with a mounting rail for magnetic sensor switches.

The dual-piston-rod structure offers excellent resistance to bending and torsion, enabling it to withstand substantial dynamic and lateral loads.

Equipped with built-in cushioning devices, such as hydraulic shock absorbers, it effectively reduces impact velocity and extends the service life of the pneumatic cylinder.

Three inlet/outlet configurations are available: via the end faces of the mounting plates on both sides, or via the side of the main body.

Pneumatic cylinder specifications available: STWA (fixed mounting plate type) and STWB (body-mounted type).

Mounting options: body-mount type, mounting plate type.

Cylinder Theoretical Output Force Chart Unit: Newton (N)

Cylinder bore	Cylinder outer diameter	Action Type	Compressed area (mm²)	Air Pressure (MPa)
Cylinder bore	Cylinder outer diameter	Action Type	Compressed area (mm²)	0.1	0.2	0.3	0.4	0.5	0.6	0.7
10	6	Double-acting	100.5	10.1	20.1	30.2	40.2	50.3	60.3	70.4
16	10	Double-acting	245	24.5	49	73.5	98	122.5	147	171.5
20	12	Double-acting	402.1	40.2	80.4	120.6	160.8	201.1	241.3	281.5
25	16	Double-acting	579.6	58	115.9	173.9	231.8	289.8	347.8	405.7
32	20	Double-acting	980.2	98	196	294.1	392.1	490.1	588.1	686.1

Technical Specification

Bore diameter (mm)	10	16	20	25	32
Action Type	Double-acting type
Working Medium	Air (filtered through a 40 µm mesh screen)
Operating pressure range	0.2~1.0Mpa(29~145psi)(2.0~10bar)	0.15~10Mpa(22~145psi)(1.5~10bar)
Guaranteed pressure resistance	1.5Mpa（215psi)(15.0bar)
Operating Temperature	-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Operating Speed Range	30–500 mm/s
Stroke Tolerance Range	Stroke ≦100 +1.0 Stroke＞100 +1.5
Buffering Form	Hydraulic shock absorber
Non-reversal accuracy	±0.1°	±0.05°		±0.03°
Interface thread size	M5*0.8			PT1/8

Standard Stroke

Inner diameter mm (bore diameter)	Standard Stroke（mm）	Maximum Stroke
10	25.50.75.100	100
16	25.50.75.100.125.150.175.200	200
20	25.50.75.100.125.150.175.200	200
25	25.50.75.100.125.150.175.200	200
32	25.50.75.100.125.150.175.200	200

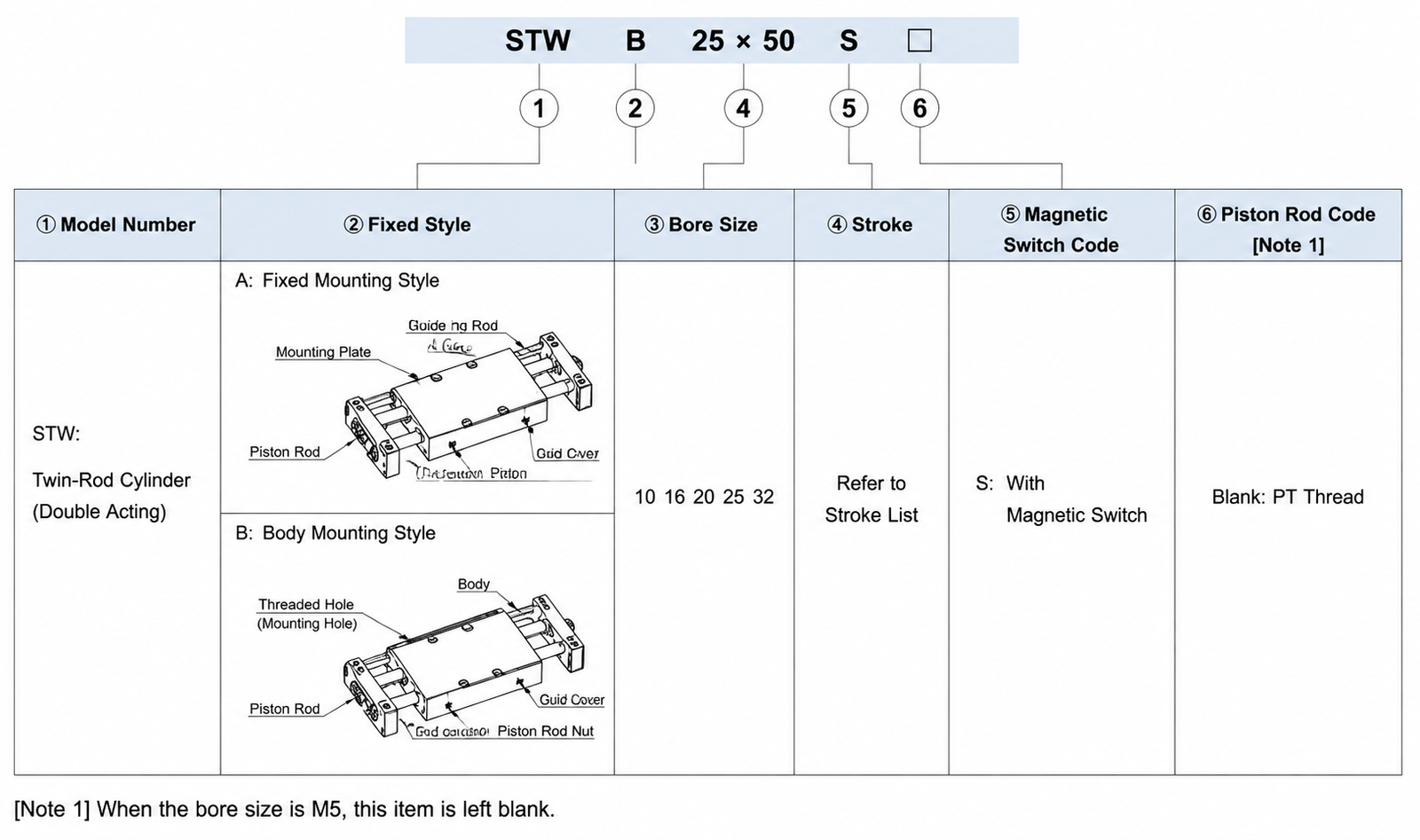

Finished Product Order Code

To select the right product, determine the specific model and specifications based on actual application requirements, perform a verification check, and obtain the external dimensions. Please contact us (Wenzhou Maifeng Pneumatic Co., Ltd. / MYFEQD).
