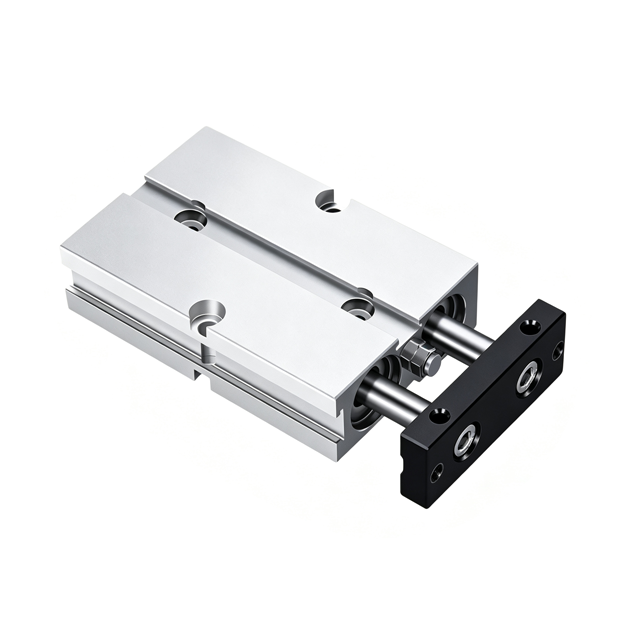

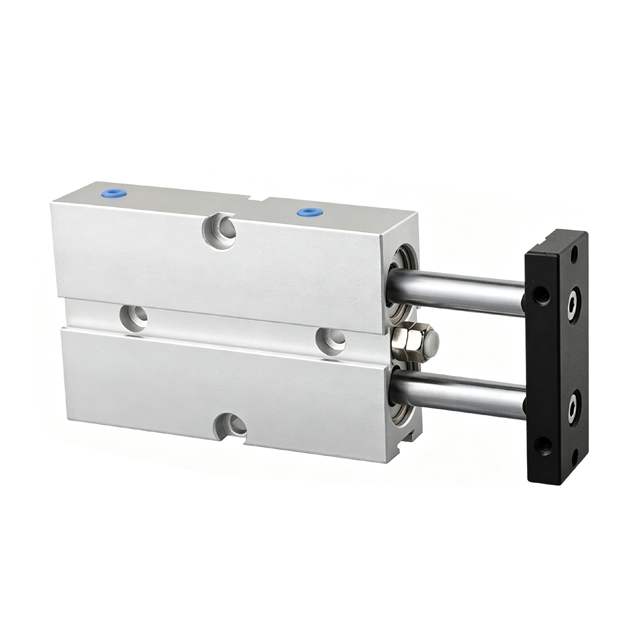

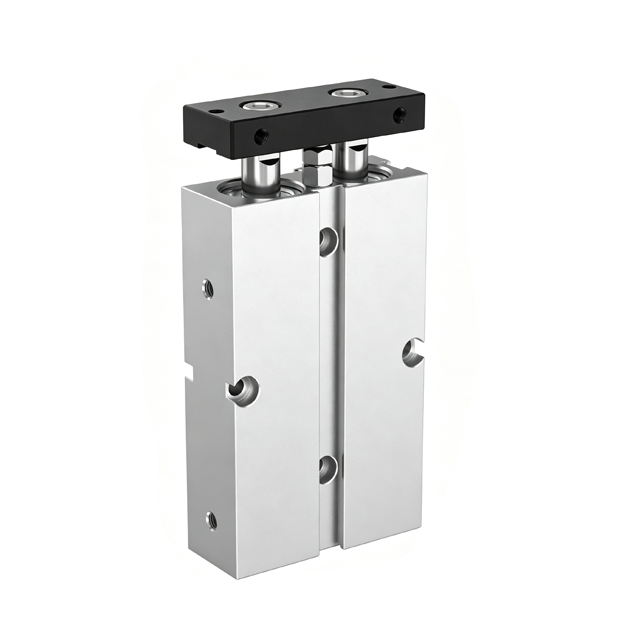

TN series double rod cylinder

Complies with enterprise standards;
Embedded body mounting design saves installation space;
Features resistance to bending and torsion, capable of withstanding certain lateral loads;
Mounting holes on three sides of the mounting plate facilitate multi-position loading;
A bumper at the front of the body allows for cylinder stroke adjustment and impact cushioning;
This series comes standard with a built-in magnet; non-magnetic versions are not available.

شارك مع الأصدقاء:

TN series double rod cylinder is a double-acting pneumatic actuator featuring synchronized dual pistons and an integrated dual-rod design. Classified as a compact guided cylinder, it adheres to domestic industry standards and is widely used in automation equipment for clamping, pushing/pulling, and precision positioning.
The two piston rods move in synchronization and feature built-in anti-rotation guidance. Delivering twice the thrust of a single-rod cylinder of the same bore size and capable of withstanding lateral loads, it effectively resolves the common issues of rotation and deflection associated with standard single-rod cylinders.

Comply with the enterprise’s technical standards.

Equipped with an external bumper; the bumper at the front of the unit allows for adjustment of the cylinder stroke and helps absorb impact.

The dual-piston rod structure delivers double the output force and offers resistance to bending and torsion, enabling it to withstand certain lateral loads.

A multi-directional mounting fixture; the mounting plate features mounting holes on three sides, facilitating loading from multiple positions.

Features built-in mounting grooves for sensors (magnetic switches).

This pneumatic cylinder supports multi-directional mounting; in addition to the axial direction, the cylinder body features mounting holes on all other sides, offering a variety of installation options.

Cylinder Theoretical Output Force Chart

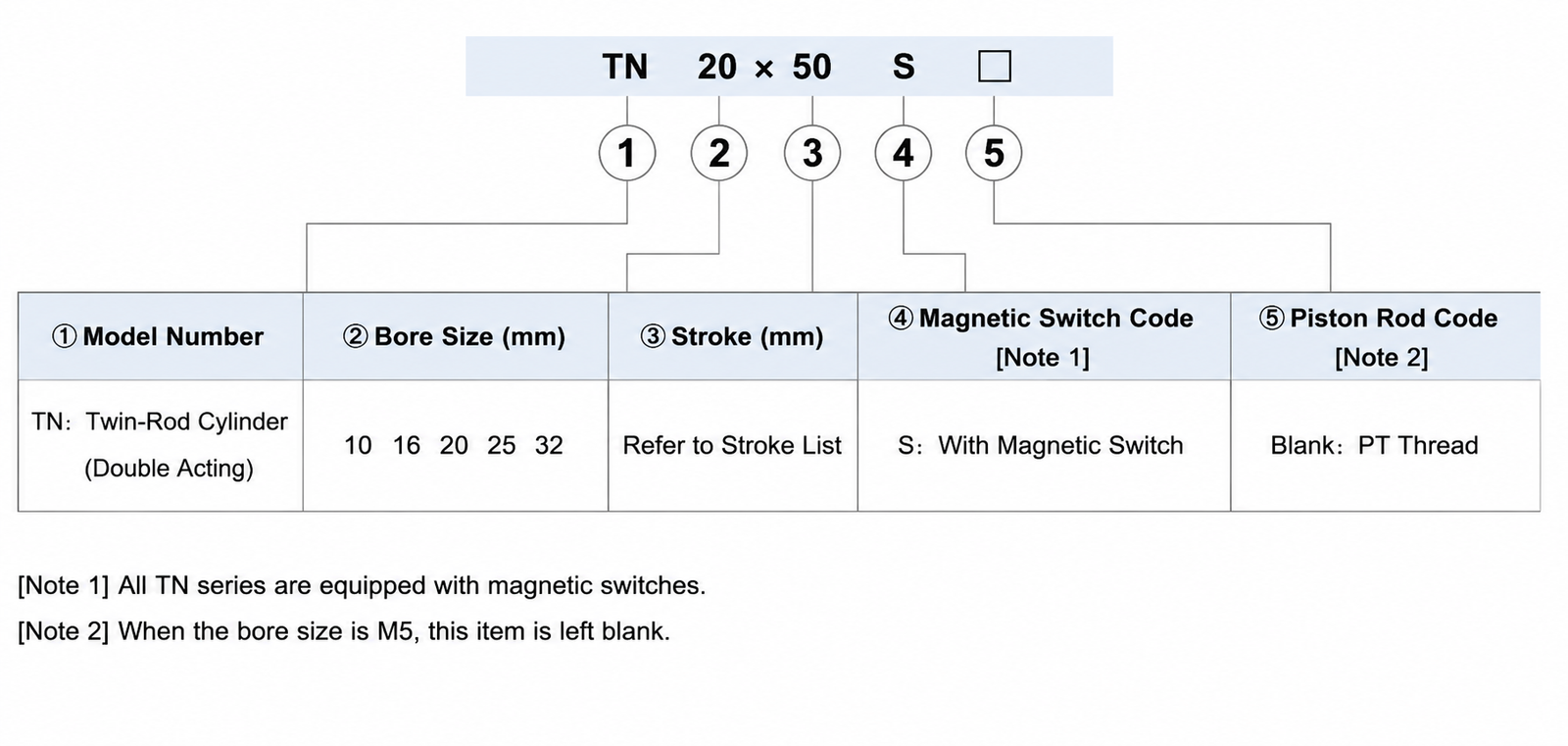

Technical Specifications

Bore diameter (mm)	10	16	20	25	32
Form of action	Double-acting type
Working Medium	Air (filtered through a 40 µm mesh screen)
Operating pressure range	0.2~1.0Mpa(29~145psi)	0.15~1.0Mpa(22~145psi)
Guaranteed pressure resistance	1.5Mpa(215psi)
Operating Temperature	-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Operating Speed Range	30~500mm/s
Adjust stroke.	-5~0
Stroke Tolerance Range	≼100 +1.0 ＞100+1.5
Buffering Form	Anti-collision pad
Non-reversal accuracy	±0.4°	±0.3°
Interface thread size	M5*0.8				بي تي 1/8
Compatible with magnetic switch sensors	DS1 Series, CS1 Series, DMSG Series, DMSE Series, DMSH Series, CMS Series, D-A93 Series, D-Z73 Series, D-C73 Series

Available thread types for the connection include PT, G, and NPT.

Standard Stroke

Inner diameter mm (bore diameter)	Standard Stroke（mm）	Maximum Stroke
10	10.20.30.40.50.60.70.80.90.100	100
16	10.20.30.40.50.60.70.80.90.100.125.150.175.200	200
20	10.20.30.40.50.60.70.80.90.100.125.150.175.200	200
25	10.20.30.40.50.60.70.80.90.100.125.150.175.200	200
32	10.20.30.40.50.60.70.80.90.100.125.150.175.200	200
