ACQ series compact cylinder

Complies with JIS standards;
The cylinder body is secured to the front and rear covers using C-clips, while the piston and piston rod feature a riveted connection for a compact and reliable design;
The cylinder bore is honed, ensuring excellent wear resistance and durability;
The extended guide length of the front cover provides superior guiding performance;
Compact structure effectively saves installation space;
Sensor slots are provided on the cylinder body for convenient sensor installation; 7. A wide range of mounting accessories is available.

Share with friends:

ACQ series compact cylinder is a line of general-purpose, ultra-compact cylinders from AirTAC that comply with Japanese JIS industrial standards; it stands as one of the most widely used and prevalent compact cylinder series in the field of industrial automation. Characterized by compact mounting, a lightweight design, a comprehensive range of specifications, and excellent cost-performance, these cylinders serve as core pneumatic actuators for small-to-medium-sized automation equipment. They offer exceptional compatibility, allowing for direct replacement of equivalent products from major international brands.

Mounting groove for integrated magnetic sensor switch.

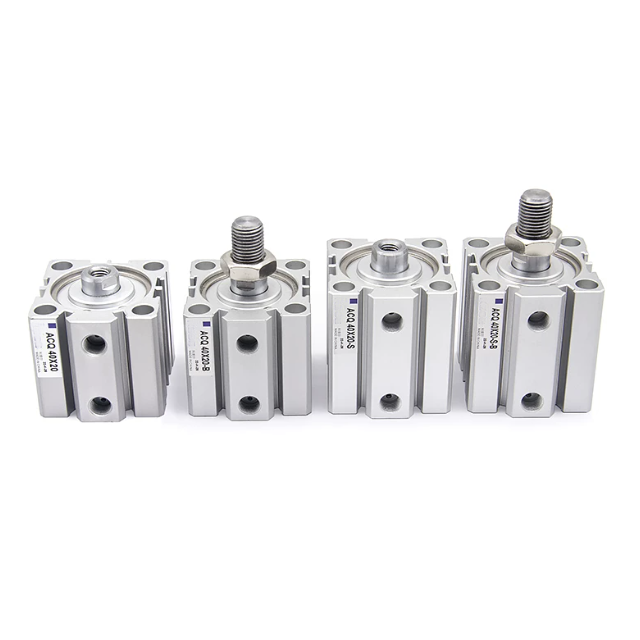

Piston rod ends are available in internal thread and external thread configurations.

The compact design effectively saves installation space; the cylinder barrel is secured to the front and rear caps using C-clips, and the piston and piston rod are joined via riveting, ensuring a compact and reliable assembly.

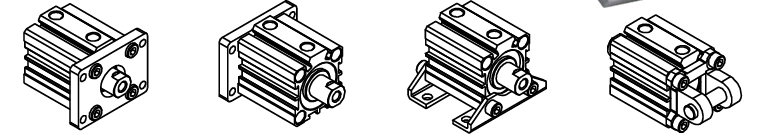

Mounting types: FA front flange, FB rear flange, LB axial mounting bracket, CB double clevis mount.

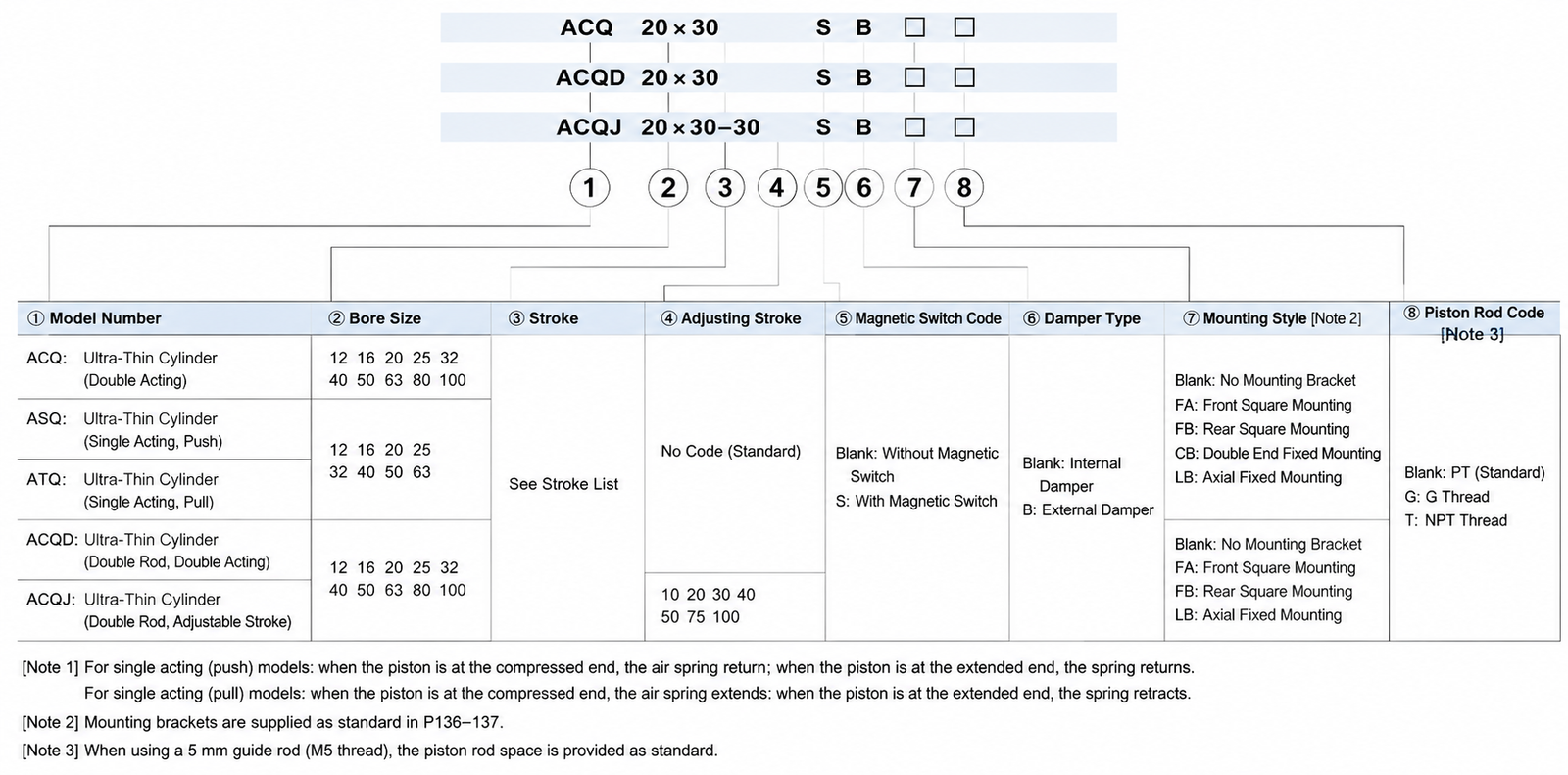

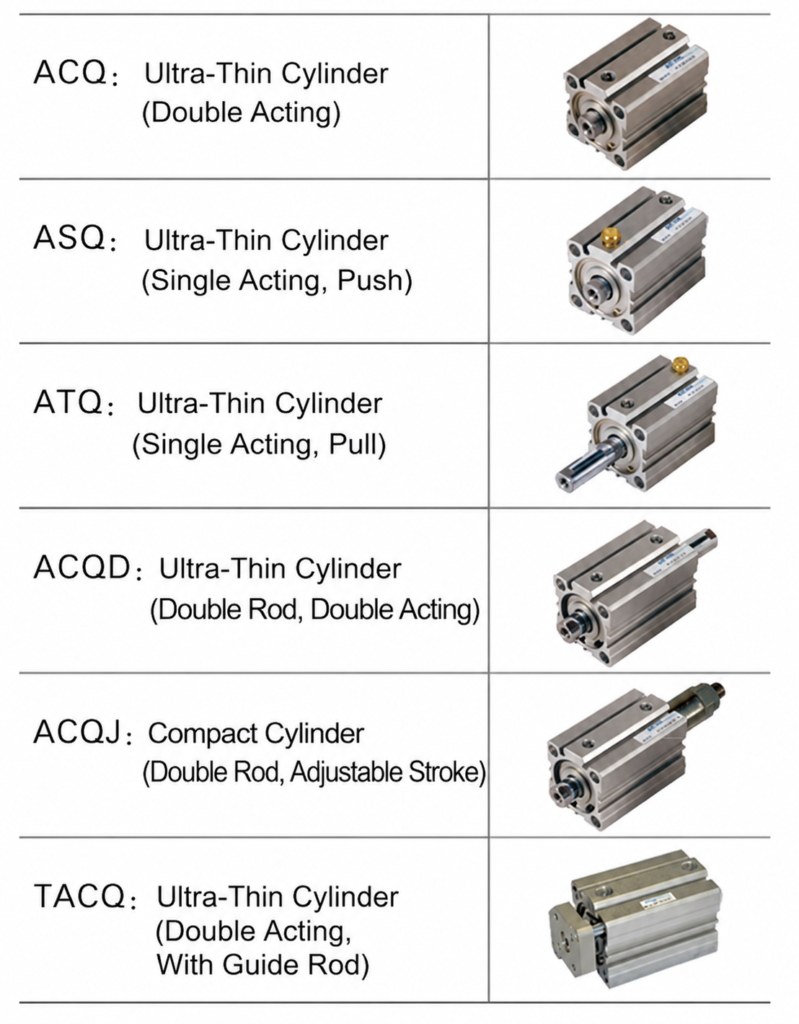

Available specifications and models:

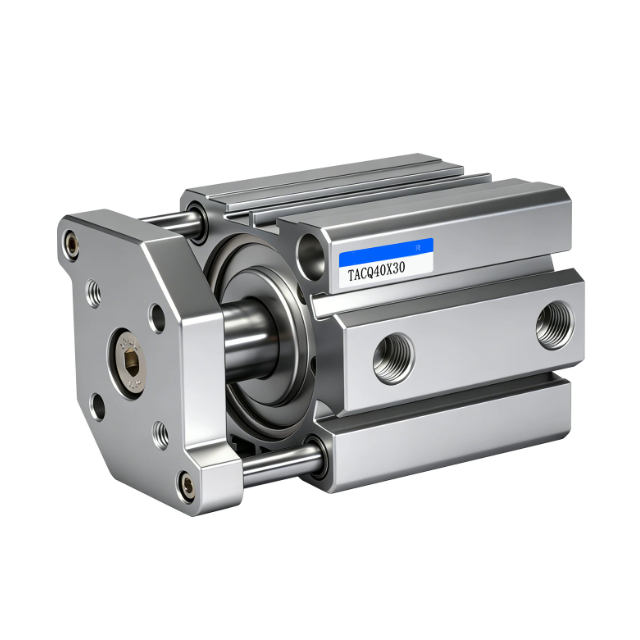

ACQ (double-acting), ASQ (single-acting, push type), ATQ (single-acting, pull type), ACQD (double-acting, dual-rod), ACQJ (double-acting, dual-rod, adjustable stroke), TACQ (double-acting, with guide rods).

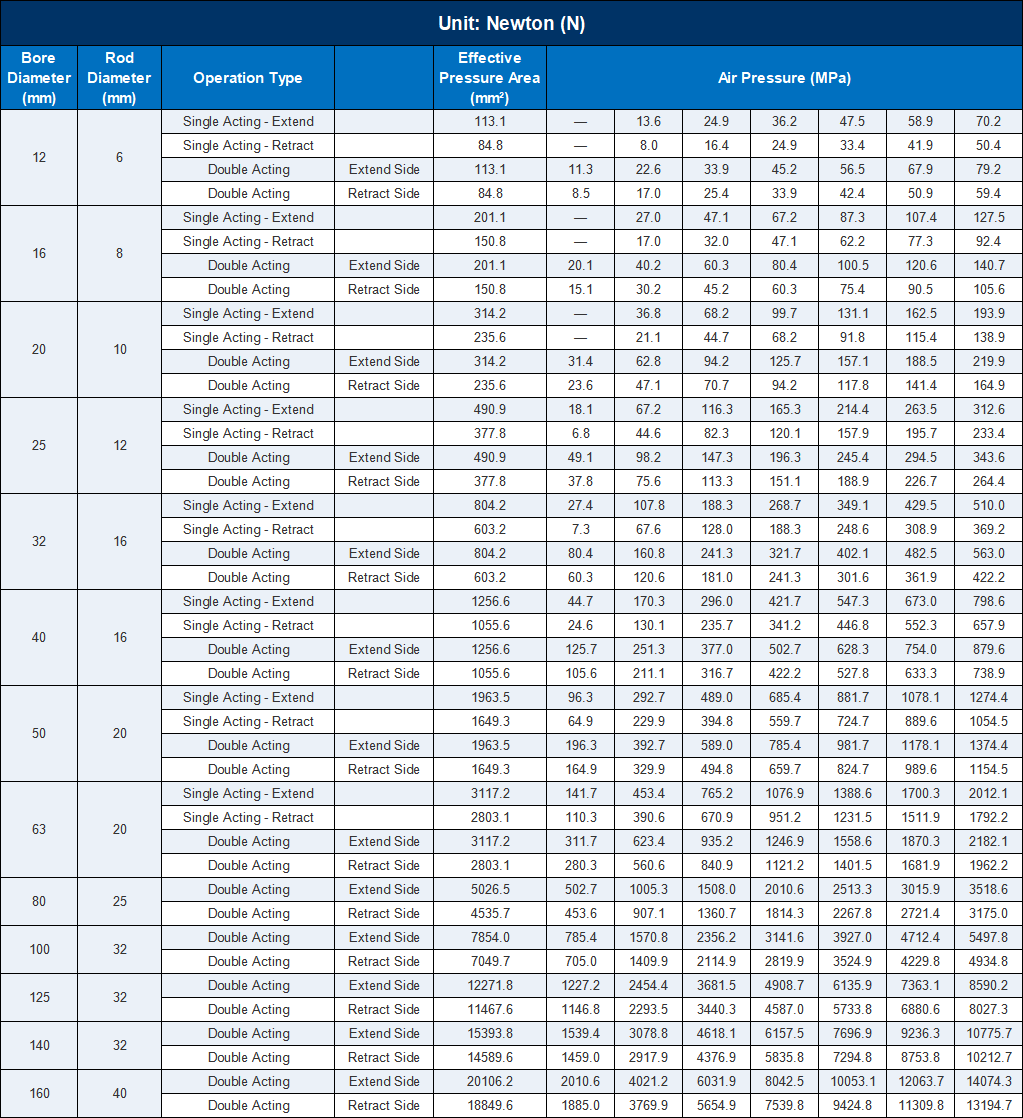

Cylinder Theoretical Output Force Chart

Technical Specifications

Bore diameter (mm)

100

125

140

160

Movement pattern

Double-acting type

Single-acting extrusion type / Single-acting retraction type

Working Medium

Air (filtered through a 40 µm mesh screen)

Operating pressure range

Double-acting type

0.15~1.0Mpa(22~145psi)(1.5~10bar)

Single-acting type

0.2~1.0Mpa(28~145psi)(2.0~10bar)

Guaranteed pressure resistance

1.5Mpa(215psi)(15bar)

Operating Temperature

-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)

Operating Speed Range

Double-acting type: 30–800 mm/s Single-acting type: 50–800 mm/s

Stroke Tolerance Range

0~150 +1.0 ＞150 +1.5

Buffering Form

Anti-collision rubber pad

Interface thread size

M5*0.8

PT1/8

PT1/4

PT3/8

Compatible with magnetic switch sensors

CS1 Series, DMS Series, D-Z73/A93 Series, SME Series

Available thread types for the connection include PT, G, and NPT.

Standard Stroke

Inner diameter mm (bore diameter)			Standard Stroke（mm）	Intermediate stroke range	Maximum Stroke
ACQ	12	Double-acting type	5.10.15.20.25.30.35.40.45.50	..	50
	12	Single-acting type	5.10.15.20	..	20
	16	Double-acting type	5.10.15.20.25.30.35.40.45.50.55.60	..	60
	16	Single-acting type	5.10.15.20	..	20
	20/25	Double-acting type	5.10.15.20.25.30.35.40.45.50.55.60.70.75.80.90.100	..	100
	20/25	Single-acting type	5.10.15.20.25.30	..	30
	32~63	Double-acting type	5.10.15.20.25.30.35.40.45.50.55.60.70.75.80.90.100	..	100
	32~63	Single-acting type	5.10.15.20.25.30	..	..
	80/100	Double-acting type	5.10.15.20.25.30.35.40.45.50.55.60.70.75.80.90.100	..	100
ACQ Large Bore Series	125/140/160	Double-acting type	10.20.30.40.50.75.100.125.150.175.200.250.300	..	300
ACQ Long-Stroke Series	32~100	Double-acting type	125.150.175.200.250.300	..	300
TACQ Series Compact Guided Cylinder (Three-Rod Type)	12/16	Double-acting type	5.10.15.20.25.30	1~29	30
	20/25	Double-acting type	5.10.15.20.25.30.35.40.45	1~49	50
	32/40	Double-acting type	5.10.15.20.25.30.35.40.45.50.75.100	1~99	100
	50/63/80/100	Double-acting type	10.15.20.25.30.35.40.45.50.75.100	5~99	100
