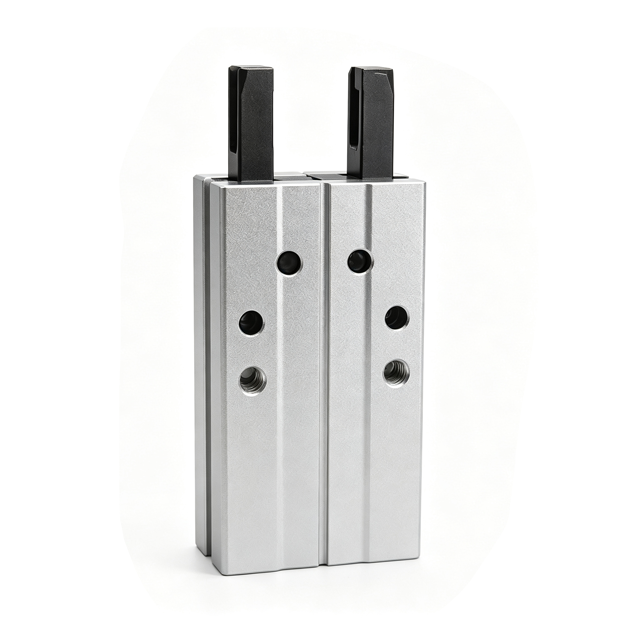

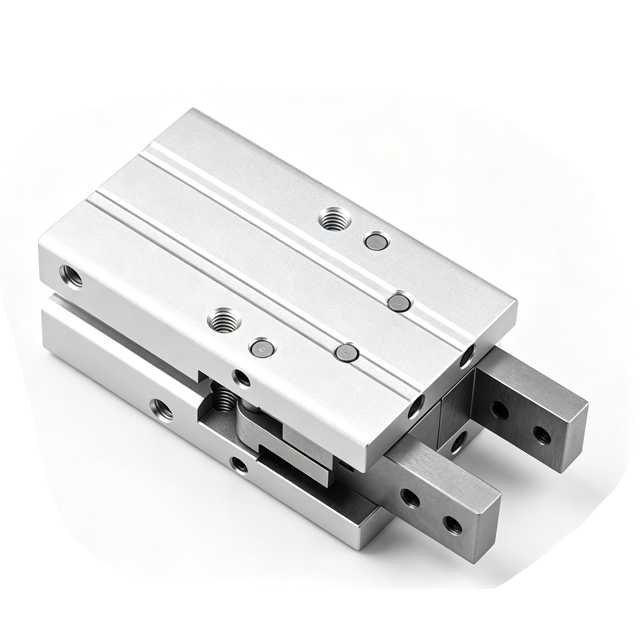

HFP Series pneumatic parallel gripper is a parallel gripper featuring a mechanical lever drive mechanism; it is an economical, standard parallel gripper designed to offer excellent cost-performance and stable gripping. Distinct from the HFZ (ball-bearing guide) and HFD (low-profile dual-guide) series, the HFP utilizes a mechanical lever amplification structure in which a single piston actuates an internal lever to drive the two gripper jaws to open and close synchronously in parallel.

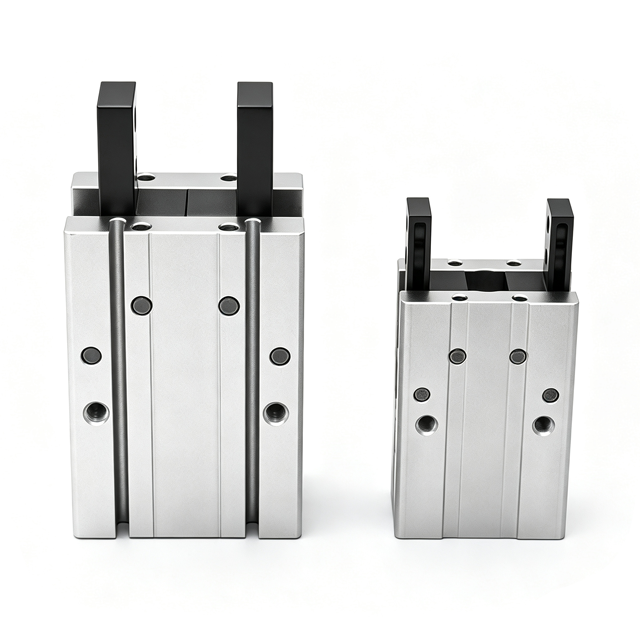

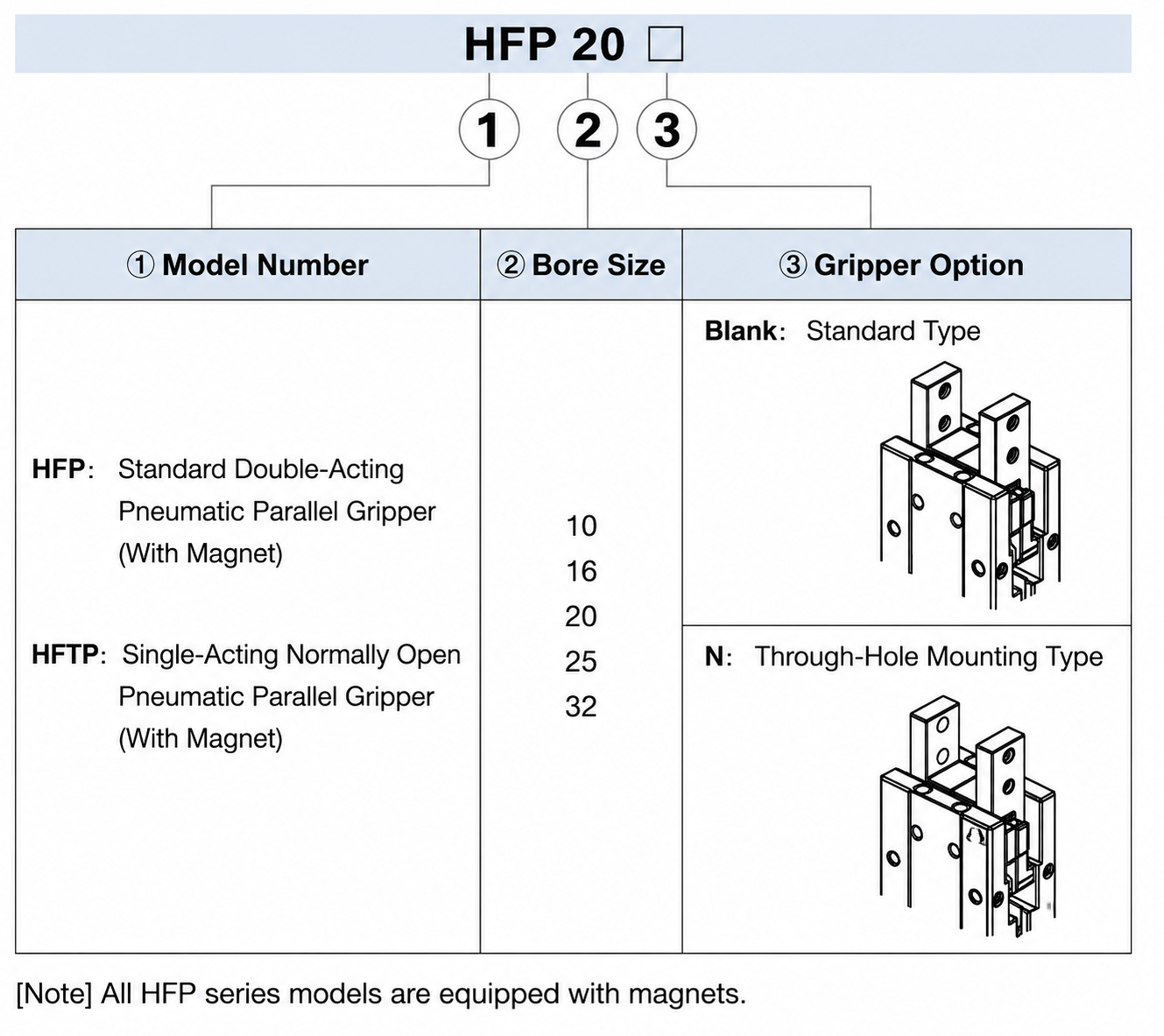

A variety of gripper types are available: standard type and through-hole mounting type.
Mechanical lever-type gripping structure: Parallel opening and closing reduces costs and enhances cost-effectiveness while meeting precision requirements. It employs a piston-rod extension mechanism for clamping and retraction for opening; the clamping force is 20%–30% greater than the opening force.
Wear resistance: A metal shim separating the gripper jaws from the main body reduces wear and extends service life.
High gripping accuracy: The increased contact area between the gripper jaws and the main body reduces wobble and enhances gripping precision.
Three-sided mounting: Mounting holes are provided on both the sides and the bottom, facilitating installation and use under various conditions (side mounting, rear mounting, and front mounting).
Integrated sensor mounting slots: This face and the opposite side feature circular sensor mounting slots, eliminating the need for external mounting brackets and offering convenience and flexibility.
| Bore diameter (mm) | 10 | 16 | 20 | 25 | 32 | |
| Cylinder action type | Double-acting type, single-acting normally open type | |||||
| Working Medium | Air (filtered through a 40 µm mesh screen) | |||||
| Operating pressure range | Double-acting type | 0.2~0.7Mpa(29~100psi) | 0.15~0.7Mpa(22~100psi) | |||
| Single-acting type | 0.35~0.7Mpa(50~100psi) | 0.25~0.7Mpa(36~100psi) | ||||
| Operating Temperature | -20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.) | |||||
| Apply oil / Add oil / Lubricate | Cylinder section: Not required; Gripper moving parts: Required (apply grease to parts with relative motion). | |||||
| Maximum gripping length (mm) | 30 | 40 | 60 | 70 | 90 | |
| Maximum operating frequency | Medium/short stroke: 180 (c.p.m.) | Medium/short stroke: 60 (c.p.m.) | ||||
| Installation Method | Side mounting, front threaded hole mounting, rear mounting | |||||
| Interface thread size | M3*0.5 | M5*0.8 | ||||
| Magnetic sensor switch | CMSG.DMSG.EMSG.CMSH.DMSH.EMSH | |||||
