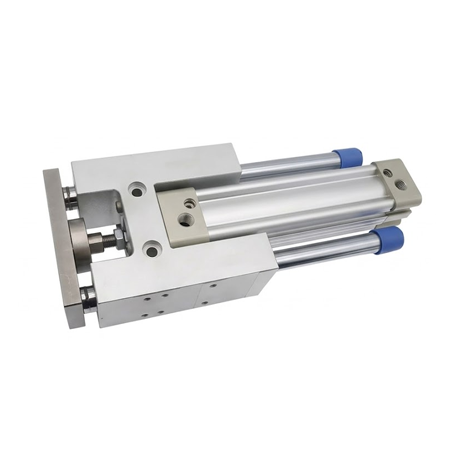

TSAI Series Guided Air Cylinder

Pneumatic Cylinder with Guide Unit and Standard Cylinder
The guided cylinder features smooth buffer adjustment.

Share with friends:

TSAI Series Guided Air Cylinder Summary

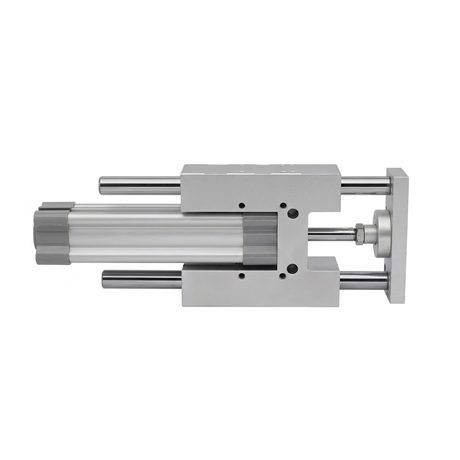

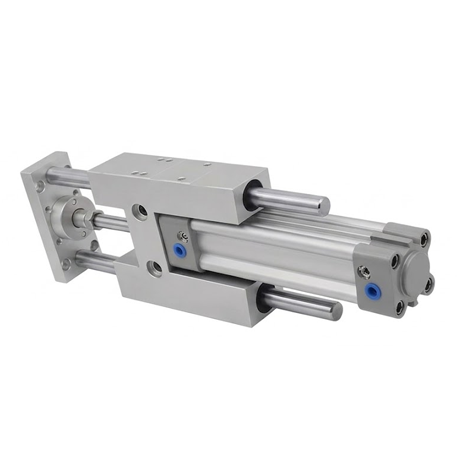

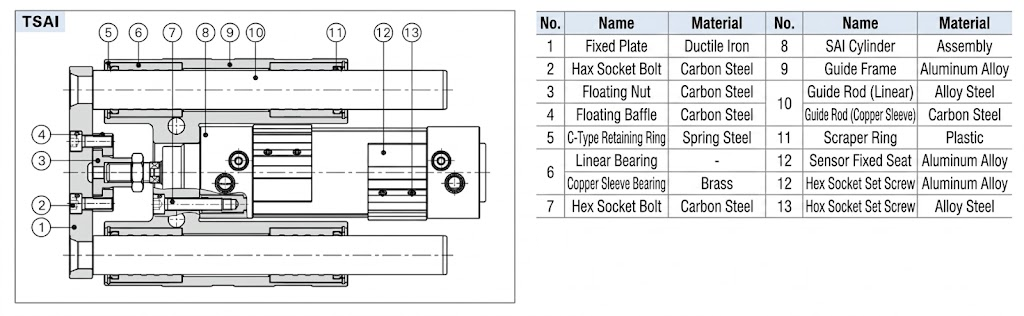

This is a novel type of pneumatic cylinder formed by combining a standard cylinder with a guide rod assembly.
Dual-Guide Rod System: Offers superior resistance to torsional forces and lateral loads.
Sliding Bearings: Suitable for applications involving radial loads—such as braking operations—and provide enhanced torsional rigidity.
Linear Bearings: Ideal for lifting applications, or in scenarios requiring high precision and high load-bearing capacity; particularly well-suited for applications demanding low-friction motion.
Specially Designed Guide Frame Body: Facilitates versatile mounting and installation configurations.

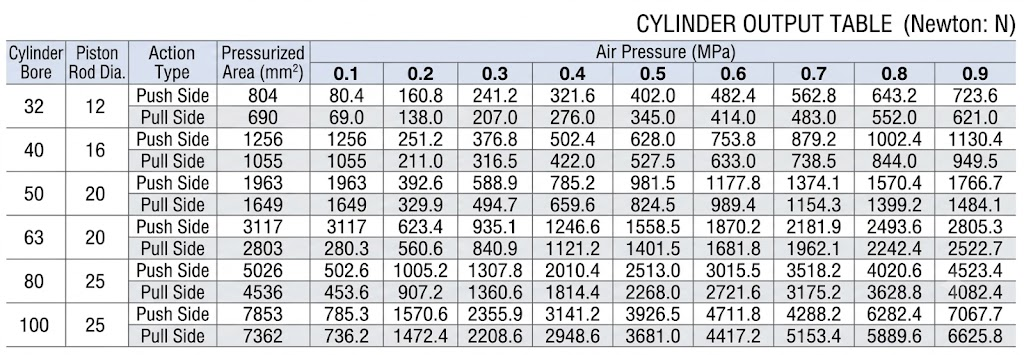

Cylinder Theoretical Output Table

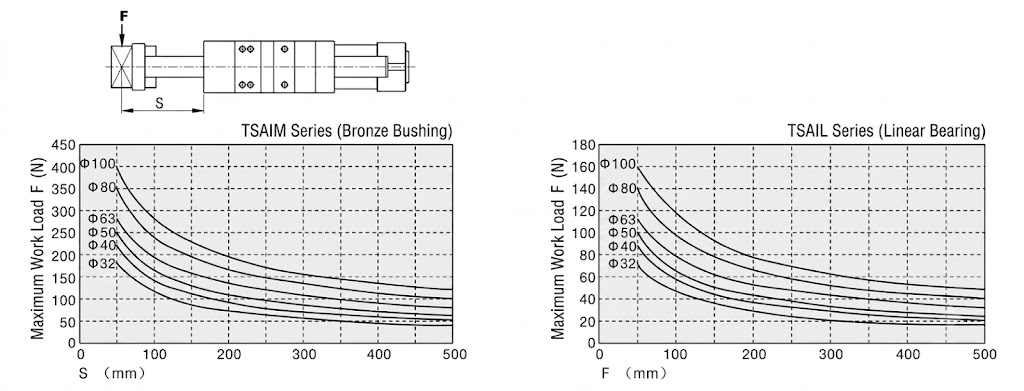

Maximum Load Relationship Curve

Technical Parameters

Inner diameter mm (bore diameter)	32	40	50	63	80	100
Action Form	Double-acting type
Working Medium	Air (filtered through a 40 µm mesh screen)
Operating Pressure Range	0.15~1.0Mpa（22~145Psi）（1.5~10.0bar）
Guaranteed Pressure Resistance	1.5Mpa（215Psi）（15bar）
Operating Temperature	-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Operating Speed Range	30~500mm/s
Stroke Tolerance Range	（0~250 +1.0）（250~1000 +1.5）
Buffering Form	Adjustable Cushioning (Air Cushioning)
Connection Thread Type	PT1/8	PT1/4		PT3/8		PT1/2

Interface threads are available in PT and G thread options.

Cylinder Stroke Information

Inner diameter mm (bore diameter)	Standard Stroke（mm）	Maximum Stroke
32	50.100.150.200.250.300.350.400.450.500	500
40	50.100.150.200.250.300.350.400.450.500	500
50	50.100.150.200.250.300.350.400.450.500	500
63	50.100.150.200.250.300.350.400.450.500	500
80	50.100.150.200.250.300.350.400.450.500	500
100	50.100.150.200.250.300.350.400.450.500	500

For other special itineraries or custom-tailored arrangements, please contact us.

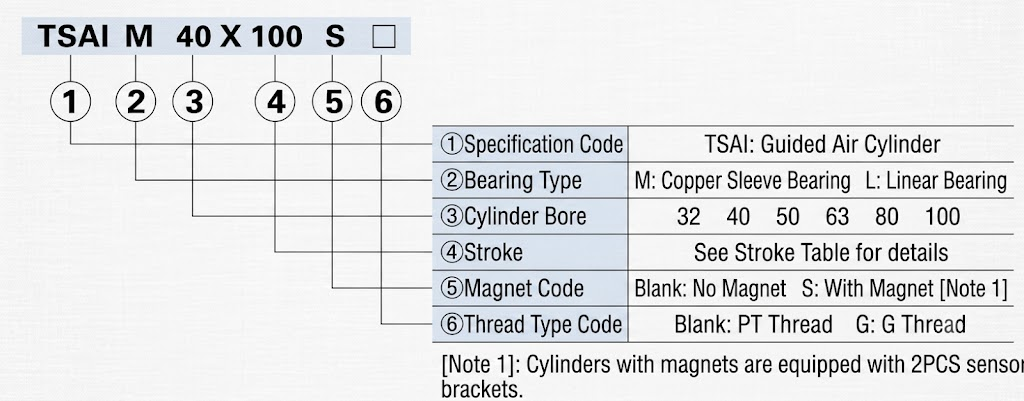

Finished Product Order Code

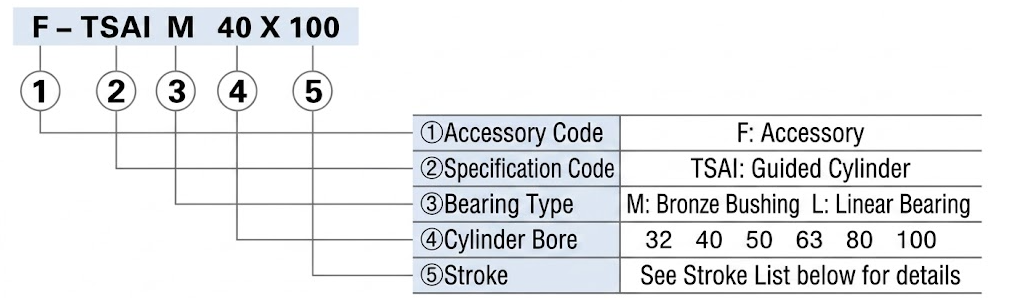

Cylinder Guide Rod Bracket Finished Product Order Code

Note: If you require guide units for other cylinder series, please contact us for inquiries.

Ordering Instructions:

When ordering a cylinder guide unit separately, only standard cylinders listed in the stroke table may be selected. (Other stroke lengths must be ordered as non-standard items.)

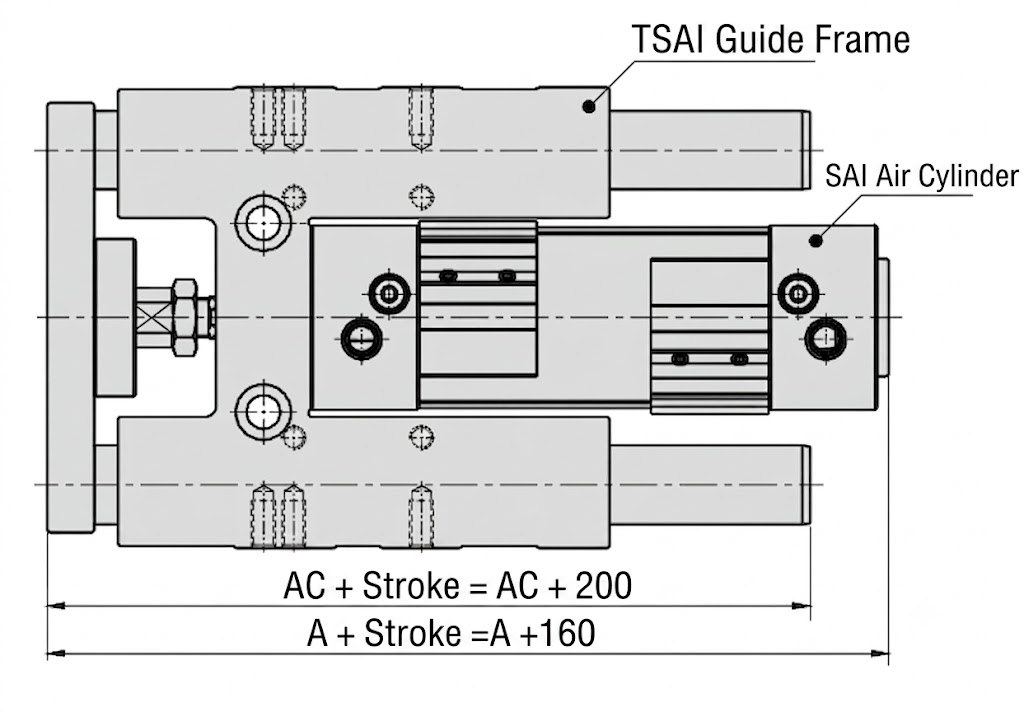

To order a guided cylinder with a non-standard stroke, the configuration is as follows: (Non-standard stroke cylinder + Guide unit corresponding to the next-larger standard stroke size).

Example: SAI32*160 (Non-standard stroke cylinder)

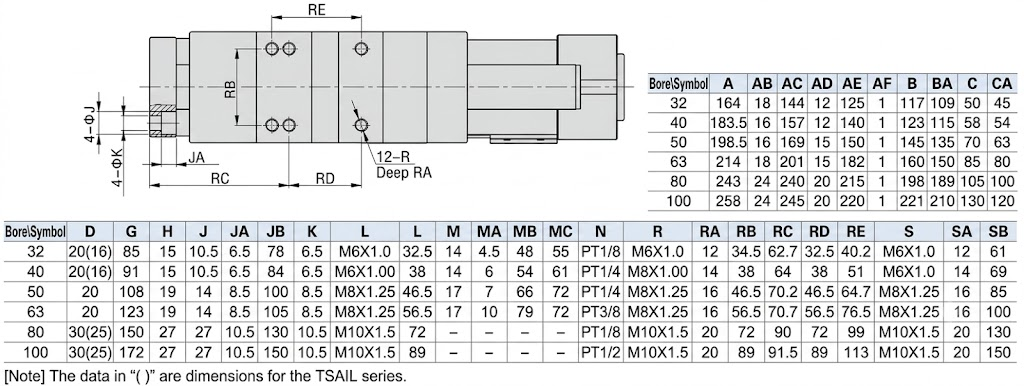

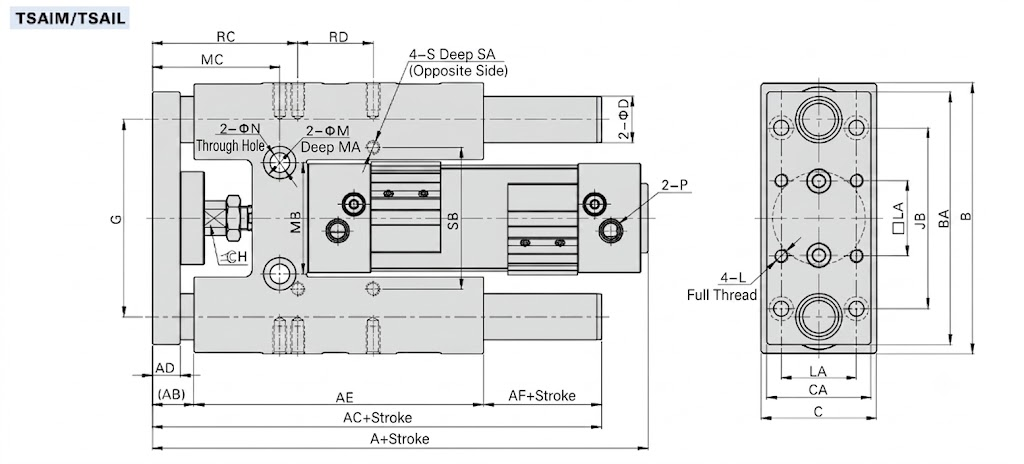

+F-TSAIM32*200 (Standard stroke guide unit). The external dimensions are shown below.
