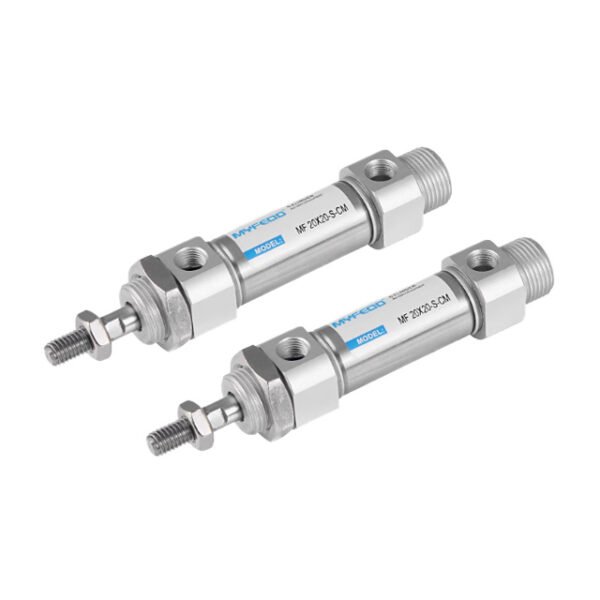

MF Series miniature pneumatic cylinder is a JIS-standard, compact stainless steel pneumatic actuator—a widely used miniature round cylinder characterized by its small size and lightweight design, making it ideal for the restricted installation spaces found in automation equipment.
Various mounting accessories: axial mounting bracket (LB), front flange (FA), rear clevis bracket (SDB), and intermediate trunnion bracket (TC).
Riveted and rolled-seam structure: The front and rear covers are joined to the stainless steel cylinder body using a riveted and rolled-seam structure, ensuring a reliable connection.
Multiple rear cover configurations are available:
CA (clevis mount), U (radial air inlet), and CM (round end cap) options facilitate installation and use across various operating conditions.
A wide range of cylinder specifications is available: MF (double-acting), MSF (single-acting, push type), MTF (single-acting, pull type), MFD (dual-shaft, double-acting), MFJ (dual-shaft, double-acting, adjustable stroke), MFC (double-acting, adjustable cushioning), MFCD (dual-shaft, double-acting, adjustable cushioning), and MFCJ (dual-shaft, double-acting, adjustable stroke and cushioning).
The front and rear covers feature fixed anti-collision cushioning pads, and the adjustable cylinder utilizes an air-cushioning mode.
| Inner diameter mm (bore diameter) | 20 | 25 | 32 | 40 | |
| Cylinder action type | Double-acting, double-acting with cushioning, single-acting (push type), single-acting (pull type) | ||||
| Working Medium | Air (filtered through a 40 µm mesh screen) | ||||
| Operating pressure range | Double-acting type | 0.15~1.0Mpa(22~145psi)(1.5~10bar) | |||
| Single-acting type | 0.2~1.0Mpa(28~145psi)(2.0~10bar) | ||||
| Guaranteed pressure resistance | 1.5Mpa(215psi)(15bar) | ||||
| Operating Temperature | -20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.) | ||||
| Operating Speed Range | Double-acting type: 30–800 mm/s Single-acting type: 50–800 mm/s | ||||
| Stroke Tolerance Range | 0~150 +1.0 ＞150 +1.5 | ||||
| Buffering Form | MFC, MFCD, and MFCJ series feature adjustable air cushioning, while other series utilize rubber bumpers for cushioning. | ||||
| Interface thread size | PT1/8 | PT1/4 | |||
| Compatible with magnetic switch sensors | Airtac-style CS1 series, Airtac-style DMS series, SMC-style D-Z73/A93 series | ||||
| Inner diameter mm (bore diameter) | Standard Stroke（mm） | Maximum Stroke | Allow Stroke | |
| MF MFC | 20 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 |
| 25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 | |
| 32 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 | |
| 40 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | 800 | |
| MFD MFCD MFJ MFCJ | 20 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | .. |
| 25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 | 300 | .. | |
| 32 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | .. | |
| 40 | 10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 500 | .. | |
| MSF MTF | 20 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | .. | .. |
| 25 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | .. | .. | |
| 32 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | .. | .. | |
| 40 | 10 15 20 25 30 40 50 60 75 80 100 125 150 | .. | .. | |
