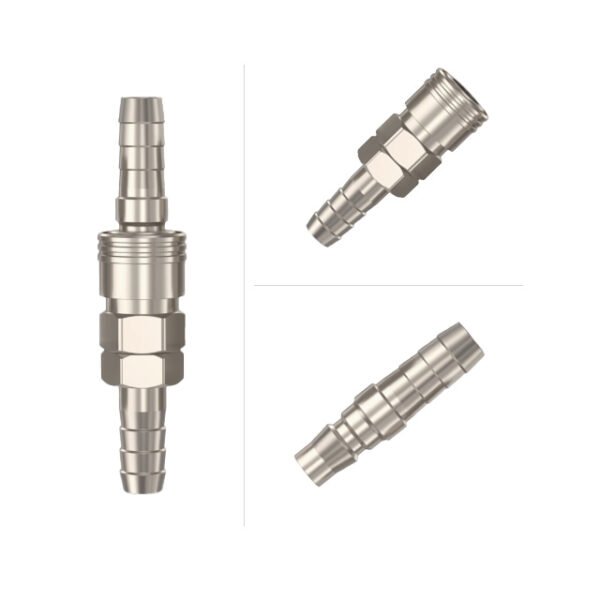

OSH+OPH air quick coupler

Improve efficiency: switch between pneumatic tools in 10 seconds
Strong sealing performance; sealing leakage rate <0.1%, four-layer rubber sealing ring protection
Self-locking one-hand operation reduces the labor intensity of staff
Strong compatibility: There are internal thread style, external thread style, direct connection air pipe style, and each model can be connected to each other

SKU:

Model:	Connection pipe diameter specifications：	Model:	Connection pipe diameter specifications：
OSH-20	PU Tube：12*8	OPH-20	PU Tube：12*8
OSH-30	PU Tube：14*10	OPH-30	PU Tube：14*10
OSH-40	PU Tube：16*12	OPH-40	PU Tube：16*12

Share with friends:

OSH+OPH air quick coupler Introduction:

MYFEQD’s OSH+OPH air quick coupler is a pneumatic hose with serrated ends that is directly connected, commonly known as a pagoda-style pneumatic quick coupler. It uses a mechanical locking structure that allows for quick connection and disassembly, greatly reducing the labor intensity of manual installation. It is suitable for quick on and off in the air circuit.
Its overall structure is made of carbon steel (steel 08al), pickled, then plated with acid copper, then plated with pearl nickel, and then sealed with oil, a series of process treatments, more beautiful, corrosion-resistant, wear-resistant, high strength, not easy to rust. One-hand operation is commonly known as self-locking pneumatic quick connector. The embedded locking steel ball is not easy to corrode and jam, making it plug and unplug lasting and smooth.
The pneumatic hoses at both ends are connected with serrations that match the inner diameter, and then locked with a rolled band, making the pipe more pressure-resistant and anti-detachable.

Order Code:

Technical parameters:

Fluid:	Air,If use liquid please contact factory
Max.proof Pressure:	1.32Mpa (13.5kgf/cm²）
Working Pressure Range:	0~0.9Mpa (0~10.2kgf/cm²）
Ambient Temperature:	0~60℃
Applicable Pipe:	PU/PA/PE/PEE Tube
