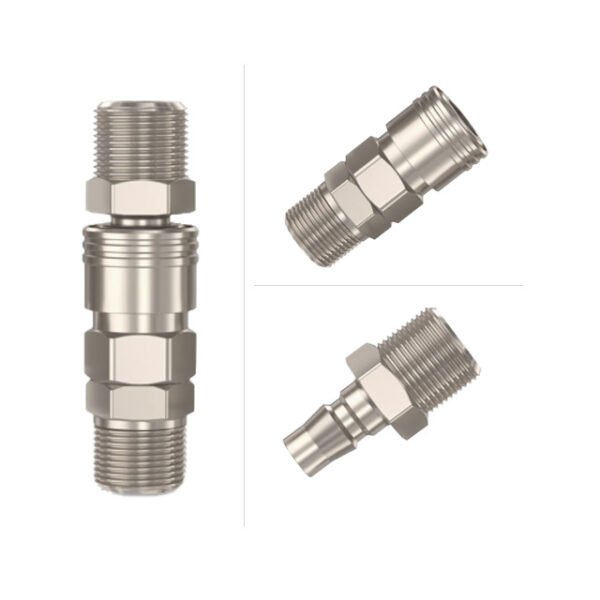

OSM+OPM quick coupler male

Improve efficiency: switch between pneumatic tools in 10 seconds
Strong sealing performance; sealing leakage rate <0.1%, four-layer rubber sealing ring protection
Self-locking one-hand operation reduces the labor intensity of staff
Strong compatibility: There are internal thread style, external thread style, direct connection air pipe style, and each model can be connected to each other

SKU:

Model:	Interface thread specifications：	Model:	Interface thread specifications：
OSM-20	PT1/4	OPM-20	PT1/4
OSM-30	PT3/8	OPM-30	PT3/8
OSM-40	PT1/2	OPM-40	PT1/2

Share with friends:

OSM+OPM quick coupler male Introduction:

MYFEQD’s OSM+OPM quick coupler male is a pneumatic quick connector with external threads at both ends, suitable for pneumatic tools and pneumatic components with internal thread interfaces. It adopts a mechanical locking structure, which can achieve quick connection and disassembly, greatly reducing the labor intensity of manual installation.
Its overall structure is made of carbon steel (steel 08al), pickled, then plated with acid copper, then plated with pearl nickel, and then sealed with oil, a series of process treatments, more beautiful, corrosion-resistant, wear-resistant, high strength, not easy to rust. One-hand operation is commonly known as self-locking pneumatic quick connector. The embedded locking steel ball is not easy to corrode and jam, making it plug and unplug lasting and smooth.
CNC precision-machined threads, its standard compatible threads are PT (R, ZG) threads, which are PT1/4=02.PT3/8=03.PT1/2=04. It can also be adapted to M threads, G threads, and MYFEQD can also undertake customized threads as required.

Order Code:

Technical parameters:

Fluid:	Air,If use liquid please contact factory
Max.proof Pressure:	1.32Mpa (13.5kgf/cm²）
Working Pressure Range:	0~0.9Mpa (0~10.2kgf/cm²）
Ambient Temperature:	0~60℃
Applicable Pipe:	PU/PA/PE/PEE Tube

Its locking steel ball is embedded and hidden.
No direct contact with air to prevent corrosion.
Reduces blockage by tiny impurities and is not easy to get stuck.
