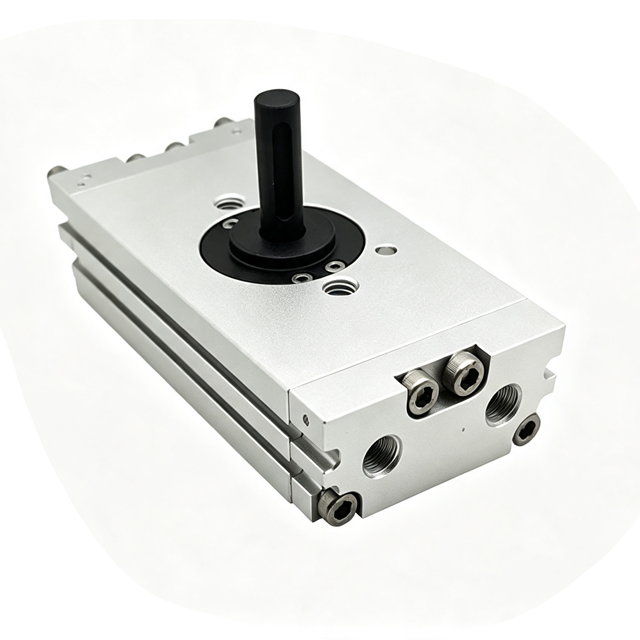

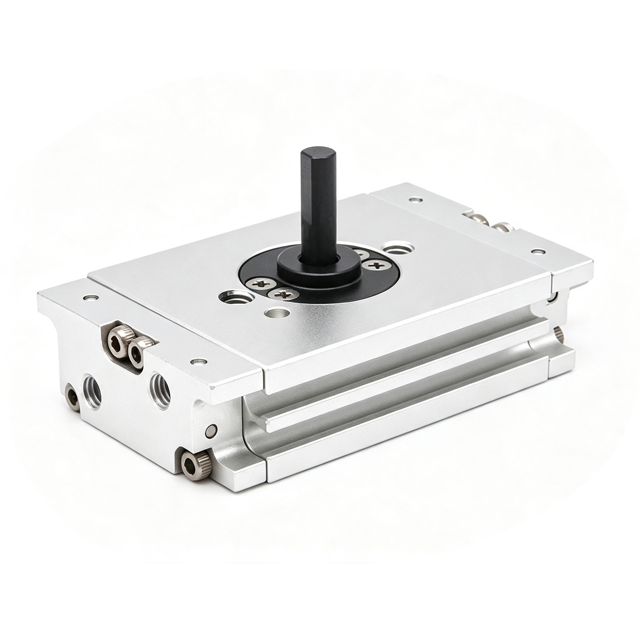

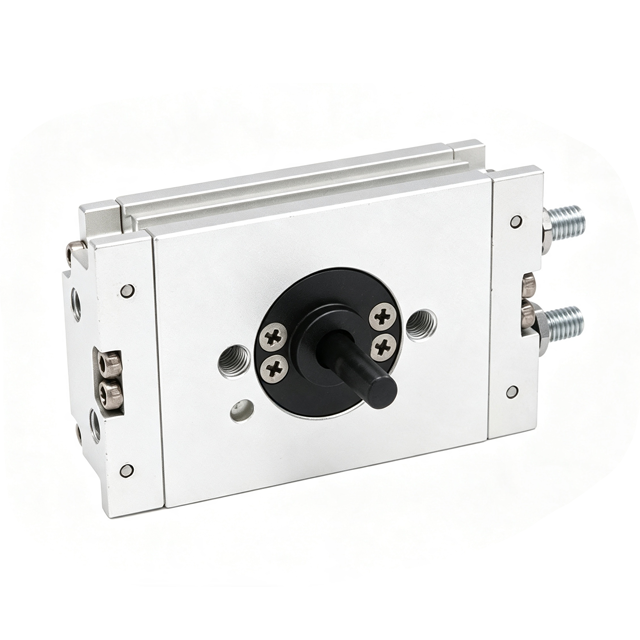

HRS series Rotary table cylinder is an ultra-thin rack-and-pinion rotary actuator featuring a dual-cylinder, dual-rack-and-pinion drive mechanism. Compared to the HRQ series, it offers a slimmer profile to save installation space while delivering higher output torque, and is designed to perform 90° or 180° reciprocating rotary motions for workpieces.
Operating principle: Compressed air drives the piston racks on both sides to move linearly; the racks drive a central gear, converting the linear motion into the rotary oscillation of the turntable. It features a built-in magnetic ring, allowing for the installation of magnetic switches to detect rotation completion signals.
Dual-cylinder structure: Delivers double the output force.
Rack-and-pinion structure: smooth operation.
Built-in sensor mounting slots: The body features mounting slots for sensors (magnetic switches) on both sides.
Flexible installation: The pneumatic cylinder body features positioning holes on both sides, allowing for flexible installation and convenient use.
Multiple cushioning types: Features both bumper pads and air cushioning for superior cushioning performance.
| Specification | 10 | 15 | 20 | 30 | 40 |
| Cylinder action type | Double-piston rack-and-pinion double-acting type | ||||
| Working Medium | Air (filtered through a 40 µm mesh screen) | ||||
| Operating pressure range | 0.25~0.7Mpa(37~100psi) | 0.15~0.7Mpa(22~100psi) | |||
| Guaranteed pressure resistance | 1.2Mpa（175psi)(12.0bar) | ||||
| Operating Temperature | -20°C~70°C | ||||
| Rotation angle range | 0~190° | ||||
| Repeatability | 0.2° | ||||
| Theoretical torque (Nm) (0.5 MPa) | 0.33 | 1.1 | 2.2 | 2.8 | 5 |
| Cushioning type | Cushioning pad | Cushioning pad + air cushioning | |||
| Interface thread size | M5*0.8 | PT1/8 | |||
| Weight (g) | 145 | 359 | 822 | 1120 | 1806 |

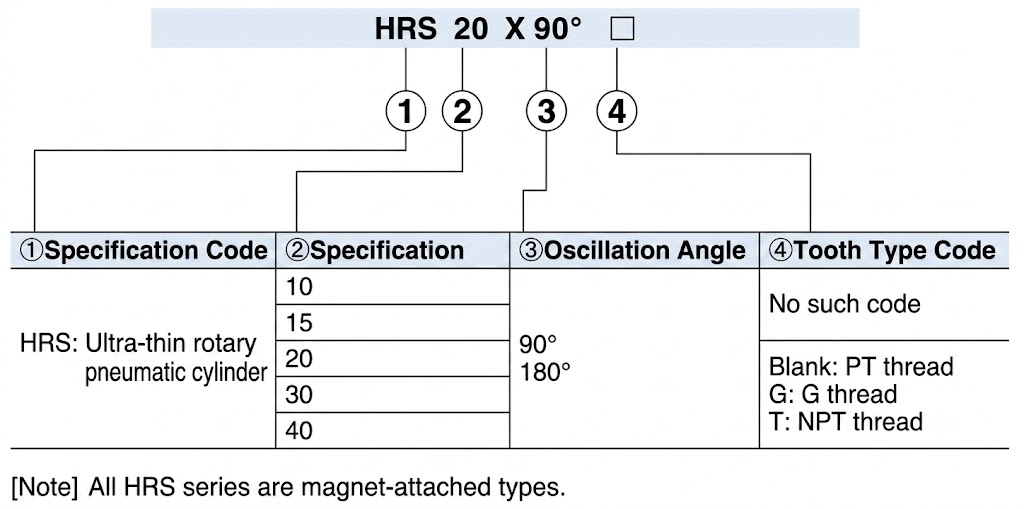

Available thread types for the connection port include PT, G, and NPT.
