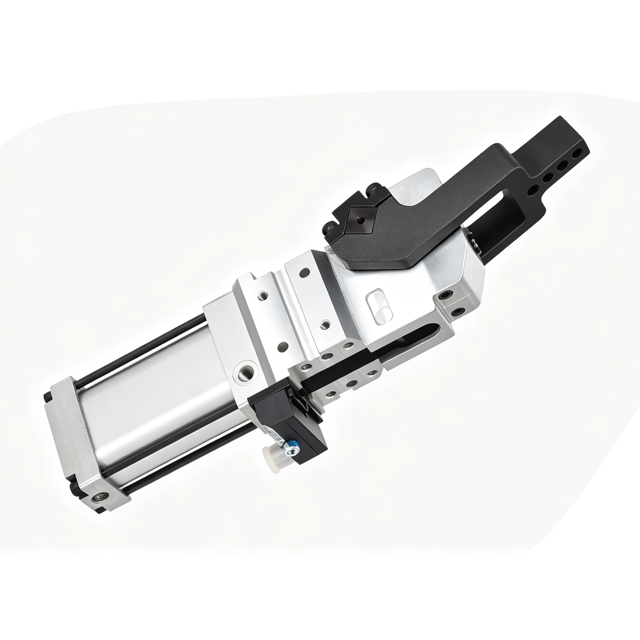

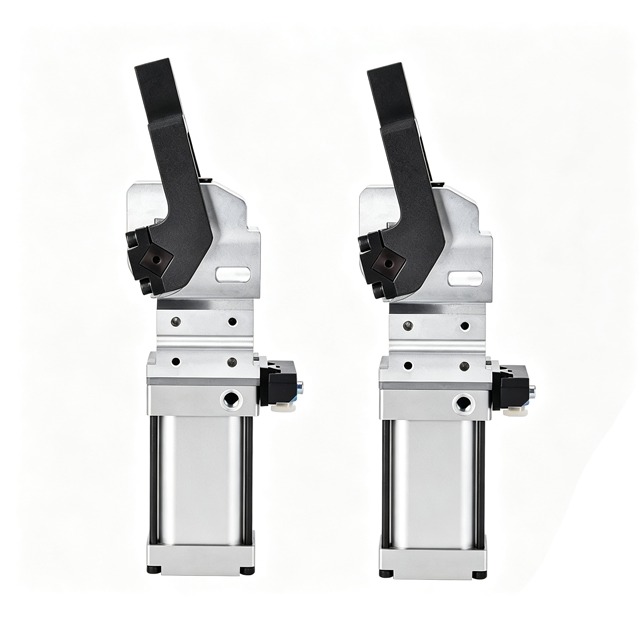

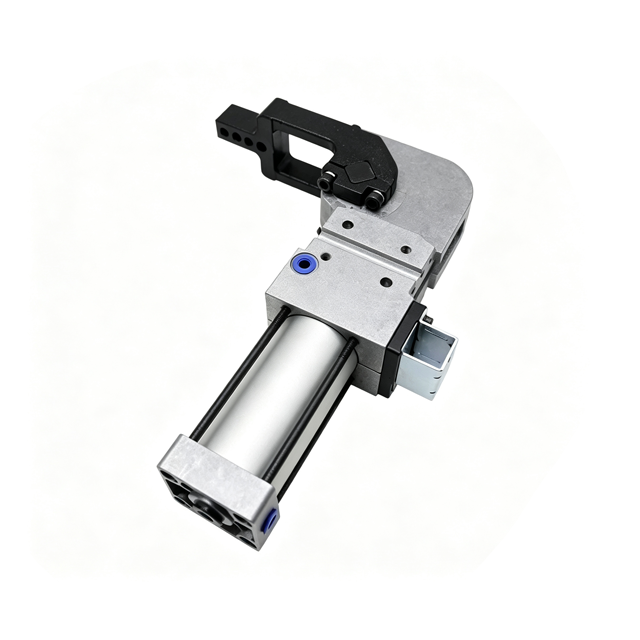

JSK series welding clamping Pneumatic cylinder

Infinitely adjustable angle: Field-adjustable via hex key within the 5°–135° range—no need to replace limit screws or the cylinder body itself, ensuring high commissioning efficiency; fixed body length means the cylinder’s external dimensions remain constant regardless of the opening angle.
Mechanical self-locking function: The clamping mechanism reaches a dead-center position, maintaining clamping torque even upon air supply interruption or pressure loss, thereby ensuring safety in welding and assembly operations.
No manual release handle (compared to the older JCK/JSCK models); clamping arms AM1/AM2/AM3/AM4 (L/C/R) are interchangeable with the JCK/JSCK series.
Features an elliptical cylinder body and pneumatic cushioning to reduce clamping impact; supports inductive sensors for clamping/opening signal feedback; and includes a weld-spatter-resistant coating on the cylinder body, making it suitable for welding applications.
Supports multi-directional mounting on all four sides; can be installed horizontally, vertically, or inverted.

Поделитесь с друзьями:

JSK series welding clamping Pneumatic cylinder is a new-generation welding clamp cylinder from AirTAC, designed to replace the older JCK/JSCK models for use in automotive welding fixtures. It features a crank-slider mechanical self-locking mechanism and offers a continuously adjustable opening angle for on-site flexibility, making it the preferred choice for new projects.

Operating Principle: A double-acting cylinder drives an internal crank-slider mechanism to actuate the clamping arm. Once clamped, the mechanism locks via a mechanical dead-point, maintaining clamping force even if the air supply is cut off. The opening angle can be adjusted on-site from 5° to 135° using an internal adjustment nut—without replacing parts—and the overall length of the unit remains unchanged regardless of the angle.

Clamping arms available in various specifications: AM1, AM2, AM3, AM4.

Multi-directional mounting: four-sided mounting; mounting dimensions comply with DIN standards.

Integrated design: clamping section, mechanism section, and pneumatic cylinder section.

Oval cylinder body, saving installation space.

Crank-slider mechanism: Constructed from high-strength, highly wear-resistant materials, the design is stable and reliable. It generates substantial clamping force from low operating air pressure and features a self-locking mechanism at the clamping position, ensuring the clamping force is maintained even in the event of air supply failure.

Technical Specifications

Модель	JSK40	JSK50	JSK63	JSK80
Output torque (0.5 MPa)	120N.m	160N.m	380N.m	800N.m
Action Type	Double-acting type
Working Medium	Air (filtered through a 40 µm mesh screen)
Operating pressure range	0.3~0.8Mpa(43~116psi)
Guaranteed pressure resistance	1.2Mpa（175psi)(12.0bar)
Operating Temperature	-20°C~70°C
Opening angle	5°~135°
Minimum opening and closing time	Clamps in 1 second, opens in 1 second.
Position sensing	Inductive proximity sensor
Buffering Form	Air cushioning
Weight (kg)	2.0	3.7	5.0	11.5
Connection port size	PT1/8	PT1/4

Available thread types for the connection include PT, G, and NPT.

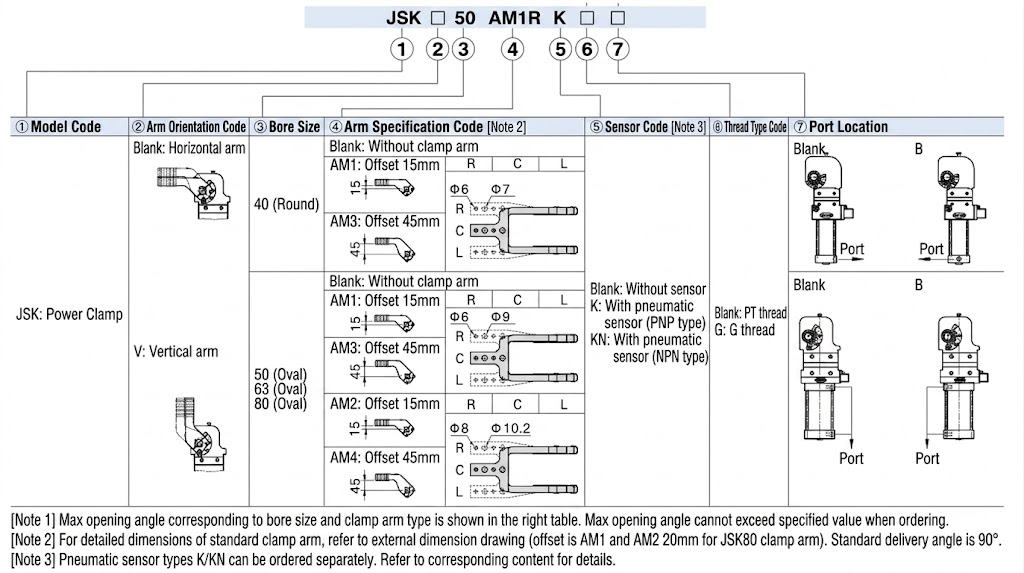

JSK series welding clamping Pneumatic cylinder Finished Product Order Code

Functional Information

Inner diameter mm (bore diameter)	Clamping arm position	Clamping arm type	Maximum opening angle
40	Clamping arm horizontal	AM1	135°
	Clamping arm horizontal	AM3	105°
	Clamping arm vertical	AM1	120°
	Clamping arm vertical	AM3	105°
50.63.80	Clamping arm horizontal	AM1.AM2.AM3.AM4	135°
50.63.80	Clamping arm vertical	AM1.AM2.AM3.AM4	105°
