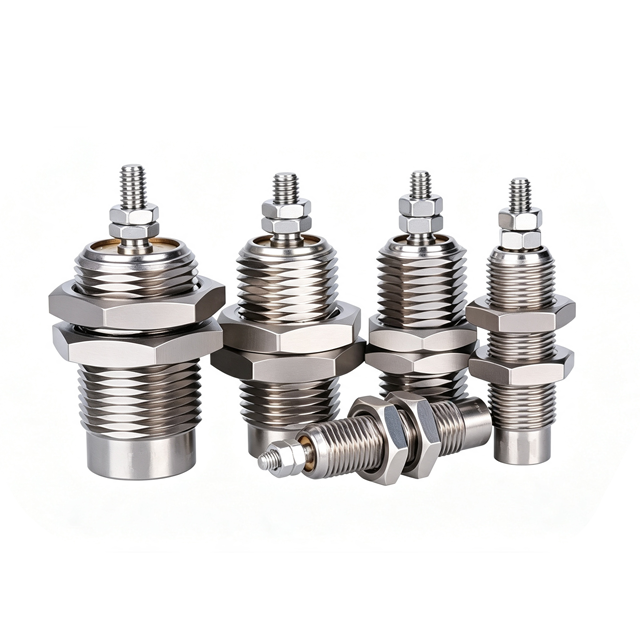

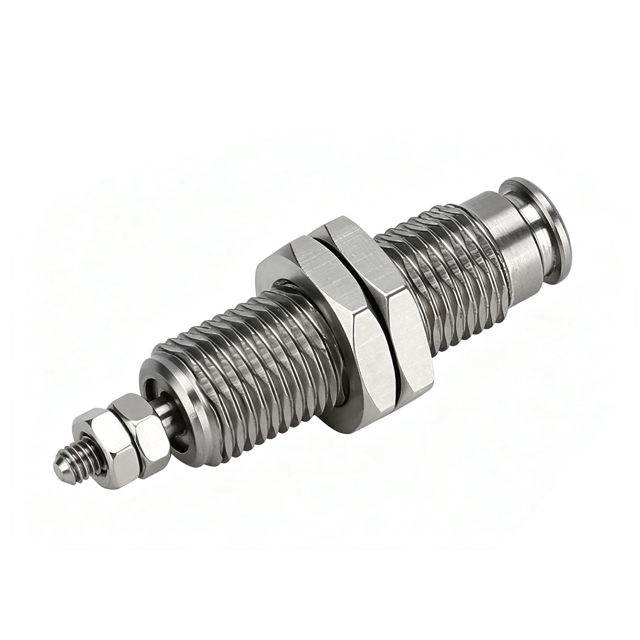

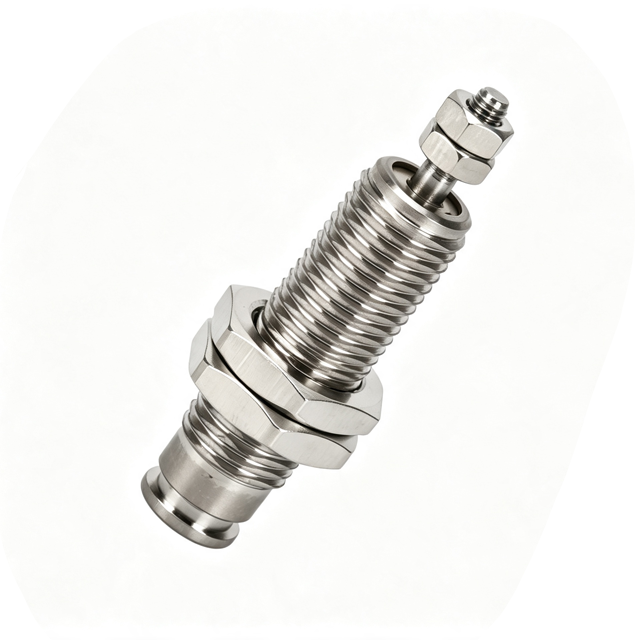

MPE Threaded type pin cylinder is a miniature pneumatic cylinder (pin cylinder) featuring single-acting, spring-return operation and a fully threaded body; it mounts directly through a panel and is secured with a nut, eliminating the need for a mounting bracket and offering a highly compact design.

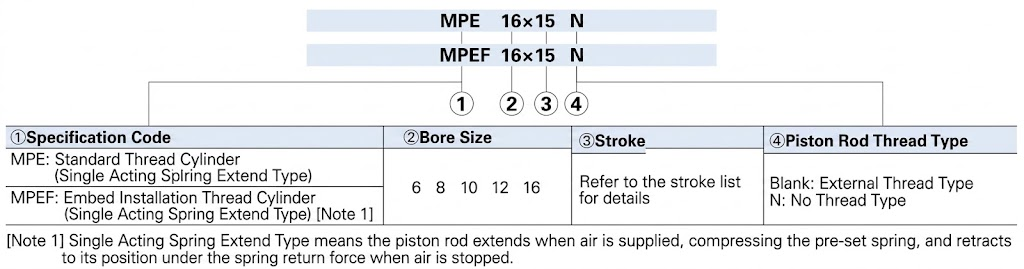

Optional piston rod end types: default is male thread; non-threaded type is indicated by (N).
Mounting methods requiring no mounting accessories: panel mounting (MPE) and flush mounting (MPEF).
Single-acting extrusion type

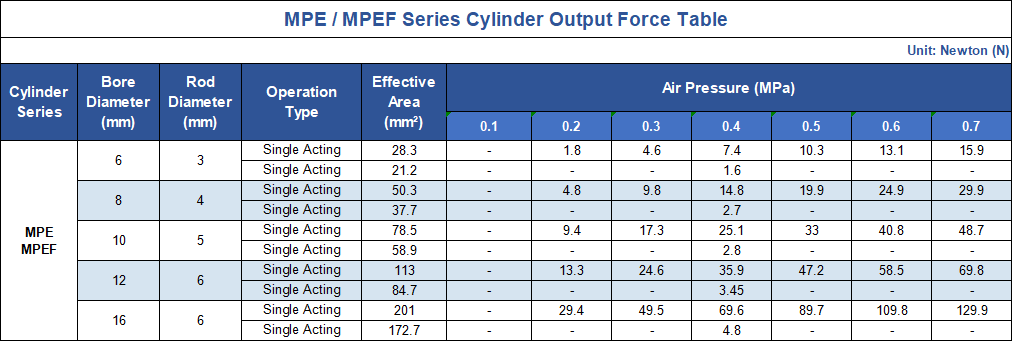

| Inner diameter mm (bore diameter) | 6 | 8 | 10 | 12 | 16 |
| Form of action | Single-acting extrusion type | ||||
| Working Medium | Air (filtered through a 40 µm mesh screen) | ||||
| Operating pressure range | 0.2~0.7Mpa（28~100Psi） | 0.15~0.7Mpa（22~100Psi） | |||
| Guaranteed pressure resistance | 1.2Mpa（215Psi） | ||||
| Fixed type | Standard type (panel mount), flush-mount type | ||||
| Operating Temperature | -20°C~70°C | ||||
| Operating speed range | 50~500 mm/s | ||||
| Travel tolerance range | +1.0 | ||||
| Cushioning type | Unbuffered | ||||
| Port thread size | M5*0.8 | ||||
| Inner diameter mm (bore diameter) | Standard stroke (mm) | Maximum stroke |
| 6 | 5.10.15 | 15 |
| 8 | 5.10.15 | 15 |
| 10 | 5.10.15 | 15 |
| 12 | 5.10.15 | 15 |
| 16 | 5.10.15 | 15 |
