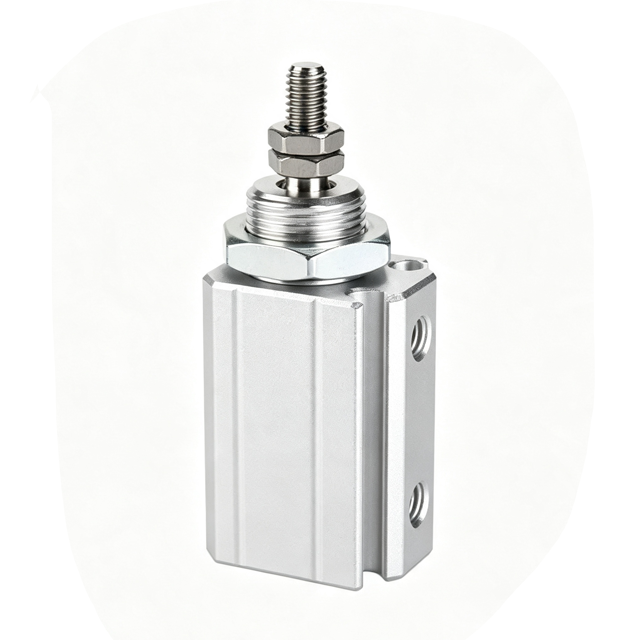

MPG series Panel-mount type pin cylinder is a compact, panel-mountable, double-acting cylinder featuring a flat, square body with integrated mounting holes; it can be bolted directly onto equipment panels or mounting plates without the need for additional brackets, making it a miniature, short-stroke cylinder.

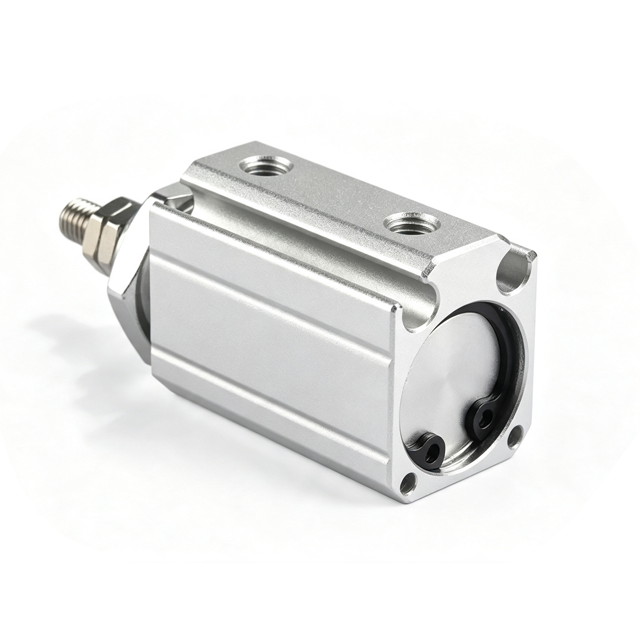

Built-in sensor mounting grooves: The cylinder body features sensor mounting slots, making the installation of magnetic switches convenient.

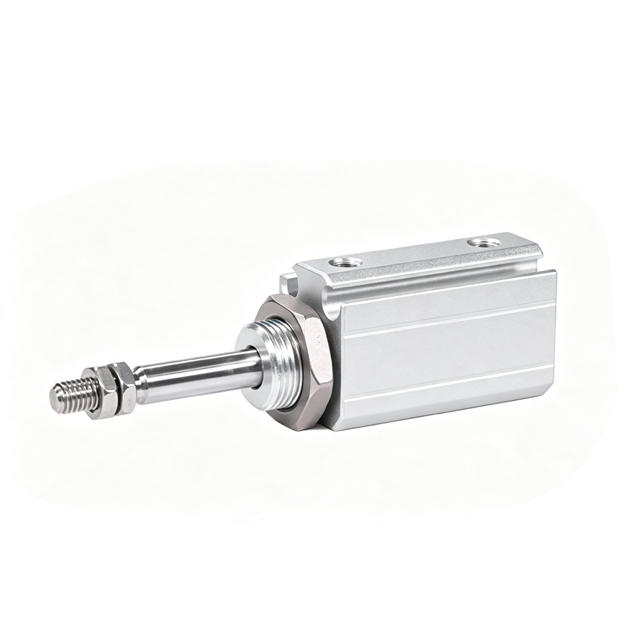

Piston rod end types available: male-threaded piston rod or non-threaded piston rod.
Optional piston rod end attachments: (I-type connector) (Y-type connector) (FC flat-head bumper cap) (RC ball-head bumper cap)
Optional mounting styles and accessories: axial mounting bracket (LB), front flange (FA), and rear clevis (SDB).

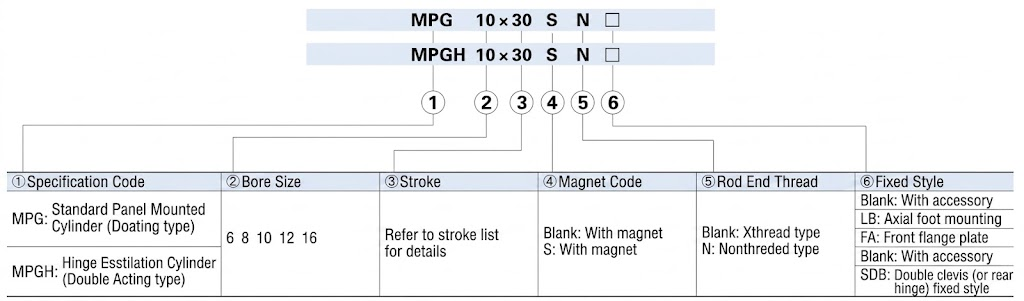

Cylinder specifications available: MPG standard mounting plate type pneumatic cylinder (double-acting), MPGH hinge-mount type pneumatic cylinder (double-acting).

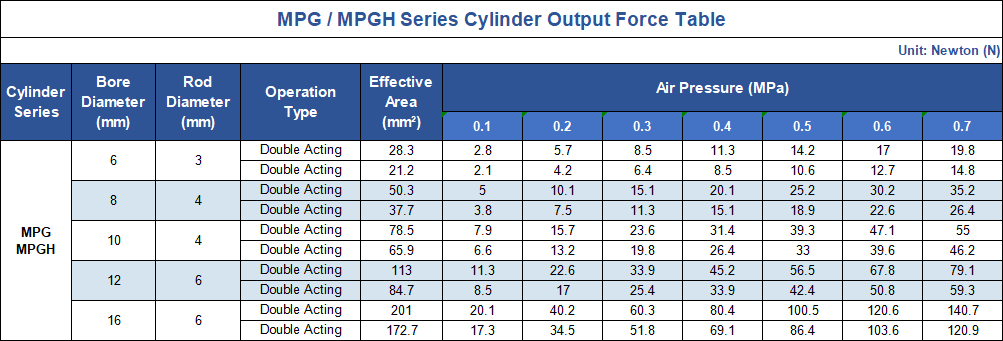

| Inner diameter mm (bore diameter) | 6 | 8 | 10 | 12 | 16 |
| Form of action | Double-acting type | ||||
| Working Medium | Air (filtered through a 40 µm mesh screen) | ||||
| Operating pressure range | 0.15~0.7Mpa（22~100Psi） | ||||
| Guaranteed pressure resistance | 1.2Mpa（215Psi） | ||||
| Fixed type | Basic Type: Earring Type: FA:LB:SDB | ||||
| Operating Temperature | -20°C~70°C | ||||
| Operating speed range | 30~500 mm/s | ||||
| Travel tolerance range | +1.0 | ||||
| Cushioning type | Anti-collision pad | ||||
| Port thread size | M3*0.5 | M5*0.8 | |||
| Inner diameter mm (bore diameter) | Standard stroke (mm) | Maximum stroke |
| 6 | 5.10.15.20.25 | 25 |
| 8 | 5.10.15.20.25.30.35.40 | 40 |
| 10 | 5.10.15.20.25.30.35.40 | 40 |
| 12 | 5.10.15.20.25.30.35.40 | 40 |
| 16 | 5.10.15.20.25.30.35.40 | 40 |
