MA Series miniature cylinder 2
⁦MA Series miniature cylinder⁩ - الصورة ⁦2⁩

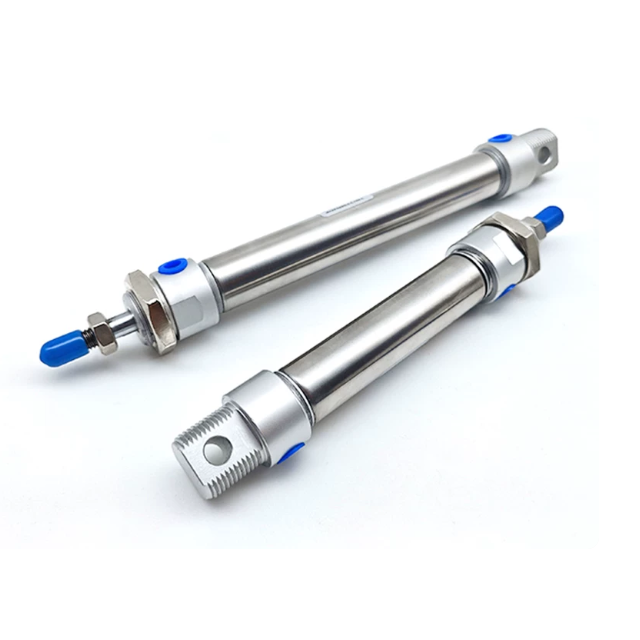

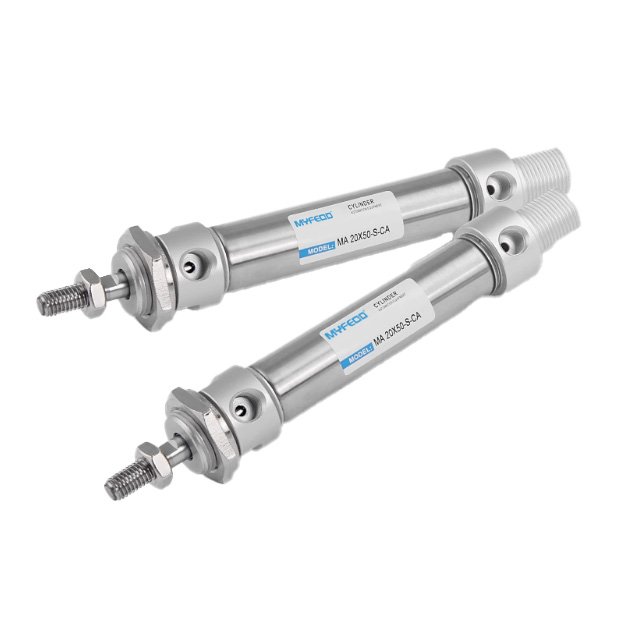

MA Series miniature cylinder 1

اسطوانة مصغرة سلسلة MA

  • Complies with company standards;
  • Features a compact, double-acting piston seal with a specialized profile and oil-retention capability;
  • Equipped with fixed bumpers on the front and rear caps to reduce impact during stroke reversal;
  • Offers various rear cap configurations for convenient installation;
  • Utilizes a reliable riveted and rolled-seam construction to join the front and rear caps to the stainless steel cylinder barrel;
  • Features a high-precision stainless steel cylinder barrel offering high strength and corrosion resistance;
  • Available in a wide range of specifications and mounting accessories to suit customer needs;
  • All cylinders in this series are equipped with a built-in magnet.
أرسل الاستفسار الآن
احصل على عينة مجانية

شارك مع الأصدقاء:

واتس آب فيسبوك انستقرام ويكسين يوتيوب

اسطوانة مصغرة سلسلة MA is a compact, double-acting pneumatic actuator featuring a cylindrical stainless steel design that complies with the industry-standard ISO 6432; it is one of the most widely used micro-cylinders in automation equipment.

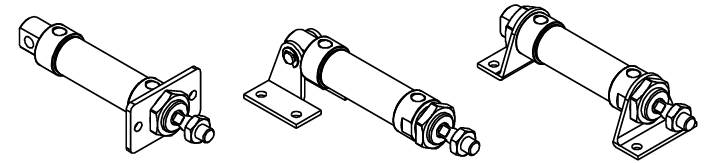

Various mounting accessories: front flange (FA), rear clevis (SDB), and axial mounting bracket (LB).

Mounting Accessories for MA Mini Cylinders

Riveted and rolled-seam structure: The front and rear end caps are joined to the stainless steel pneumatic cylinder barrel using a riveted and rolled-seam structure, ensuring a reliable connection.

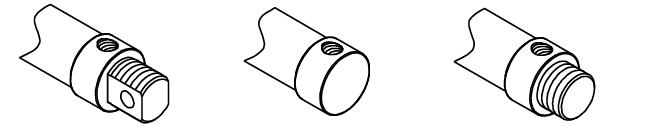

Optional rear cap configurations include the CA (clevis) type, U (flat) type, and CM (round) type.

MA Mini Stainless Steel Cylinder Rear Cap Types

A wide range of cylinder specifications available:

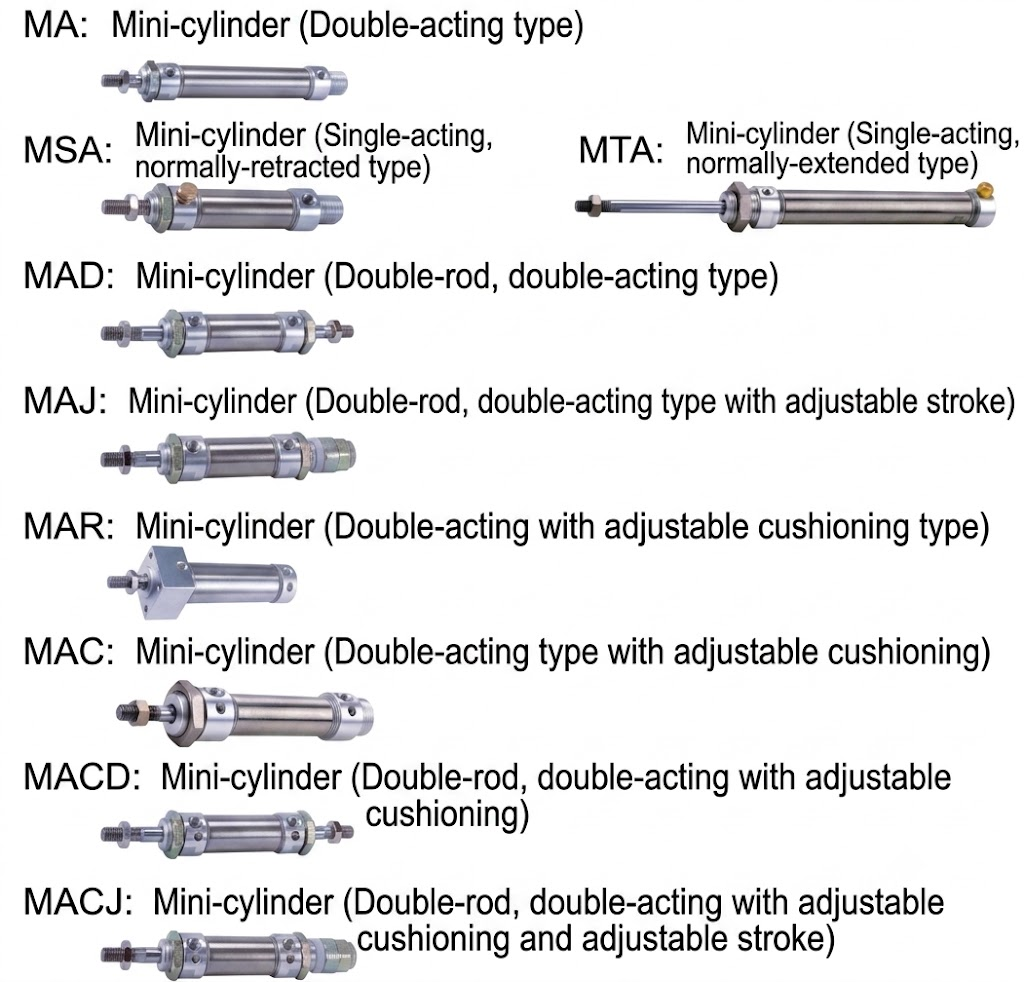

MA (double-acting), MSA (single-acting, push type), MTA (single-acting, pull type), MAD (double-rod, double-acting), MAJ (double-rod, double-acting, adjustable stroke), MAR (double-acting, adjustable cushioning), MAC (double-acting, adjustable cushioning), MACD (double-rod, double-acting, adjustable cushioning), and MACJ (double-rod, double-acting, adjustable stroke and cushioning).

MA Stainless Steel Mini Cylinders – Various Specifications and Types

Cylinder Force and Profitability Chart

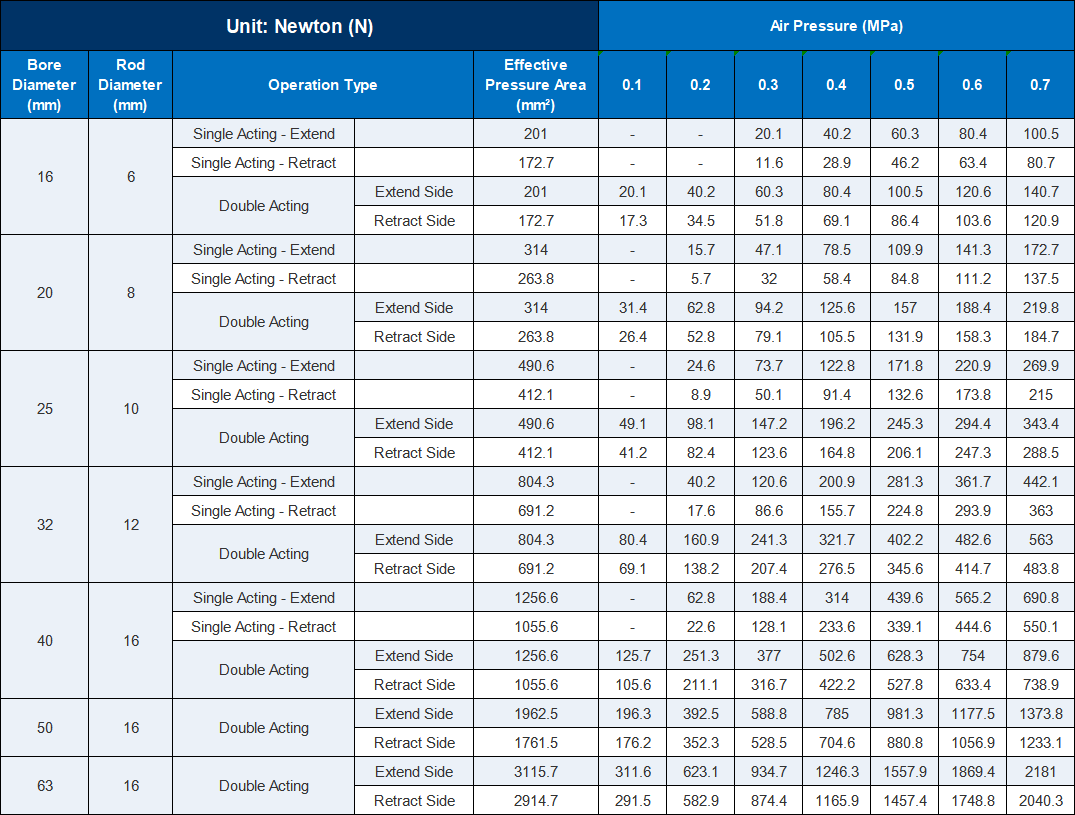

Theoretical Output Force Chart for MA Stainless Steel Mini Cylinders

Technical Specifications

Inner diameter mm (bore diameter) 16 20 25 32 40 50 63
Cylinder action type MSA    MTA Single-acting type ..
MA  MAD  MAJ Double-acting type ..
MAR .. Double-acting type
MAC  MACD  MACJ Double-acting cushioned type
Working Medium Air (filtered through a 40 µm mesh screen)
Operating pressure range Double-acting type 0.15~1.0Mpa(22~145psi)(1.5~10bar)
Single-acting type 0.2~1.0Mpa(28~145psi)(2.0~10bar)
Guaranteed pressure resistance 1.5Mpa(215psi)(15bar)
Operating Temperature -20°C~70°C  (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Operating Speed ​​Range Double-acting type: 30–800 mm/s Single-acting type: 50–800 mm/s
Stroke Tolerance Range 0~150  +1.0 ＞150 +1.5
Buffering Form MAC, MACD, and MACJ series feature adjustable air cushioning, while other series utilize rubber bumpers for cushioning.
Interface thread size M5*0.8 بي تي 1/8 بي تي 1/4
Compatible with magnetic switch sensors Airtac-style CS1 series, Airtac-style DMS series, SMC-style D-Z73/A93 series

Available thread types for the connection include PT, G, and NPT.

Standard Stroke

Inner diameter mm (bore diameter) Standard Stroke（mm） Maximum Stroke Allow Stroke
MA  MAC 16 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 800
MA MAC MAR 20 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 800
25 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 800
32 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 800
40 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 800
MAC MAR 50 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 800
63 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 800
MAD MAJ MACD MACJ 16 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 500 ..
20 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 500 ..
25 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 500 ..
32 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 ..
40 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 ..
MACD MACJ 50 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 ..
63 10  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500 500 ..
MSA 16 10  15  20  25  30  40  50  60  75  80  100 .. ..
20 10  15  20  25  30  40  50  60  75  80  100  125  150 .. ..
25 10  15  20  25  30  40  50  60  75  80  100  125  150 .. ..
32 10  15  20  25  30  40  50  60  75  80  100  125  150 .. ..
40 10  15  20  25  30  40  50  60  75  80  100  125  150 .. ..
MTA 16 10  15  20  25  30  40  50  60  75  80  100 .. ..
20 10  15  20  25  30  40  50  60  75  80  100 .. ..
25 10  15  20  25  30  40  50  60  75  80  100 .. ..
32 10  15  20  25  30  40  50  60  75  80  100 .. ..
40 10  15  20  25  30  40  50  60  75  80  100 .. ..

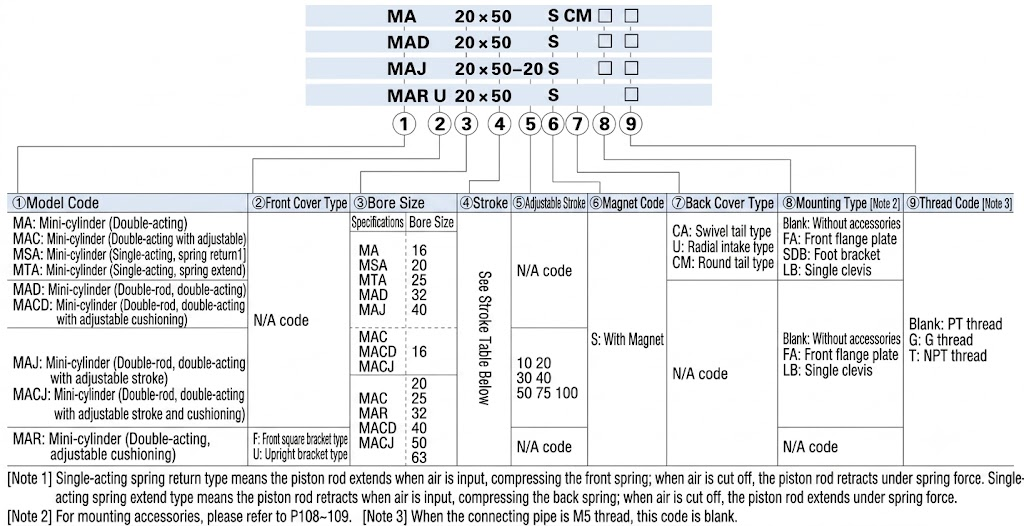

MA Series miniature cylinder Finished Product Order Code

MA Series miniature cylinder Finished Product Order Code

To learn more about the internal structure, material specifications, external dimensions, and accessories,

click “Contact Us.”
