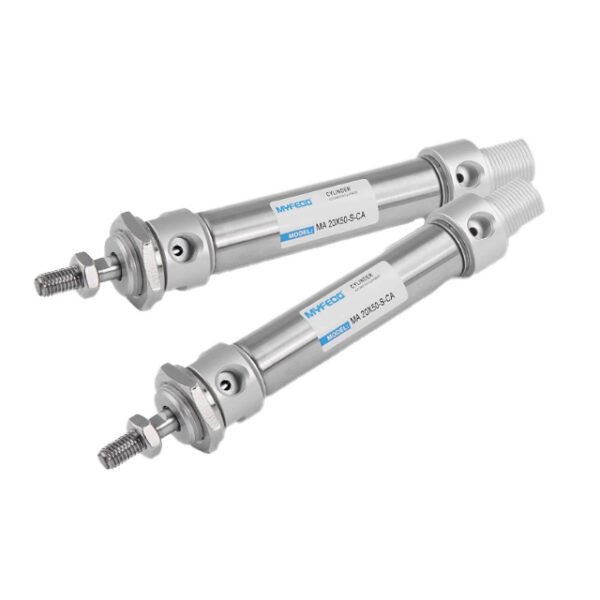

MA Series miniature cylinder

  • Complies with company standards;
  • Features a compact, double-acting piston seal with a specialized profile and oil-retention capability;
  • Equipped with fixed bumpers on the front and rear caps to reduce impact during stroke reversal;
  • Offers various rear cap configurations for convenient installation;
  • Utilizes a reliable riveted and rolled-seam construction to join the front and rear caps to the stainless steel cylinder barrel;
  • Features a high-precision stainless steel cylinder barrel offering high strength and corrosion resistance;
  • Available in a wide range of specifications and mounting accessories to suit customer needs;
  • All cylinders in this series are equipped with a built-in magnet.
Send inquiry now
Get Free Sample

Share with friends:

Whatsapp Facebook Instagram Weixin Youtube

MA Series miniature cylinder is a compact, double-acting pneumatic actuator featuring a cylindrical stainless steel design that complies with the industry-standard ISO 6432; it is one of the most widely used micro-cylinders in automation equipment.

Various mounting accessories: front flange (FA), rear clevis (SDB), and axial mounting bracket (LB).

Mounting Accessories for MA Mini Cylinders

Riveted and rolled-seam structure: The front and rear end caps are joined to the stainless steel pneumatic cylinder barrel using a riveted and rolled-seam structure, ensuring a reliable connection.

Optional rear cap configurations include the CA (clevis) type, U (flat) type, and CM (round) type.

MA Mini Stainless Steel Cylinder Rear Cap Types

A wide range of cylinder specifications available:
MA (double-acting), MSA (single-acting, push type), MTA (single-acting, pull type), MAD (double-rod, double-acting), MAJ (double-rod, double-acting, adjustable stroke), MAR (double-acting, adjustable cushioning), MAC (double-acting, adjustable cushioning), MACD (double-rod, double-acting, adjustable cushioning), and MACJ (double-rod, double-acting, adjustable stroke and cushioning).

MA Stainless Steel Mini Cylinders – Various Specifications and Types

Cylinder Force and Profitability Chart

Theoretical Output Force Chart for MA Stainless Steel Mini Cylinders

Technical Specifications

Inner diameter mm (bore diameter)16202532405063
Cylinder action typeMSA    MTASingle-acting type..
MA  MAD  MAJDouble-acting type..
MAR..Double-acting type
MAC  MACD  MACJDouble-acting cushioned type
Working MediumAir (filtered through a 40 µm mesh screen)
Operating pressure rangeDouble-acting type0.15~1.0Mpa(22~145psi)(1.5~10bar)
Single-acting type0.2~1.0Mpa(28~145psi)(2.0~10bar)
Guaranteed pressure resistance1.5Mpa(215psi)(15bar)
Operating Temperature-20°C~70°C  (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Operating Speed ​​RangeDouble-acting type: 30–800 mm/s Single-acting type: 50–800 mm/s
Stroke Tolerance Range0~150  +1.0 ＞150 +1.5
Buffering FormMAC, MACD, and MACJ series feature adjustable air cushioning, while other series utilize rubber bumpers for cushioning.
Interface thread sizeM5*0.8PT1/8PT1/4
Compatible with magnetic switch sensorsAirtac-style CS1 series, Airtac-style DMS series, SMC-style D-Z73/A93 series

Available thread types for the connection include PT, G, and NPT.

Standard Stroke

Inner diameter mm (bore diameter)Standard Stroke（mm）Maximum StrokeAllow Stroke
MA  MAC1610  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500800
MA MAC MAR2010  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500800
2510  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500800
3210  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500800
4010  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500800
MAC MAR5010  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500800
6310  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500800
MAD MAJ MACD MACJ1610  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300500..
2010  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300500..
2510  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300500..
3210  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500..
4010  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500..
MACD MACJ5010  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500..
6310  15  20  25  30  40  50  60  75  80  100  125  150  160  175  200  250  300 350 400 450 500500..
MSA1610  15  20  25  30  40  50  60  75  80  100....
2010  15  20  25  30  40  50  60  75  80  100  125  150....
2510  15  20  25  30  40  50  60  75  80  100  125  150....
3210  15  20  25  30  40  50  60  75  80  100  125  150....
4010  15  20  25  30  40  50  60  75  80  100  125  150....
MTA1610  15  20  25  30  40  50  60  75  80  100....
2010  15  20  25  30  40  50  60  75  80  100....
2510  15  20  25  30  40  50  60  75  80  100....
3210  15  20  25  30  40  50  60  75  80  100....
4010  15  20  25  30  40  50  60  75  80  100....

MA Series miniature cylinder Finished Product Order Code

MA Series miniature cylinder Finished Product Order Code

To learn more about the internal structure, material specifications, external dimensions, and accessories,

click “Contact Us.”
