PB Series small pneumatic cylinders

Complies with JIS standards
Belongs to the mini/compact cylinder category; features a compact structure, small size, and light weight.
The piston rod offers high guidance accuracy, and the guide bearing requires no additional lubrication.
Cylinders with 4mm and 6mm bores can only be mounted via the front cover, whereas cylinders with 10mm, 12mm, and 16mm bores can be mounted via either the front or rear cover.
The piston rod and cylinder barrel are made of stainless steel, enabling the cylinder to operate in mildly corrosive environments.
With a small bore and rapid response, it is suitable for high-frequency operating environments.
The PBR series mini pen-style cylinders feature mounting holes in the front and rear caps, allowing for direct mounting without the need for additional mounting accessories.

Share with friends:

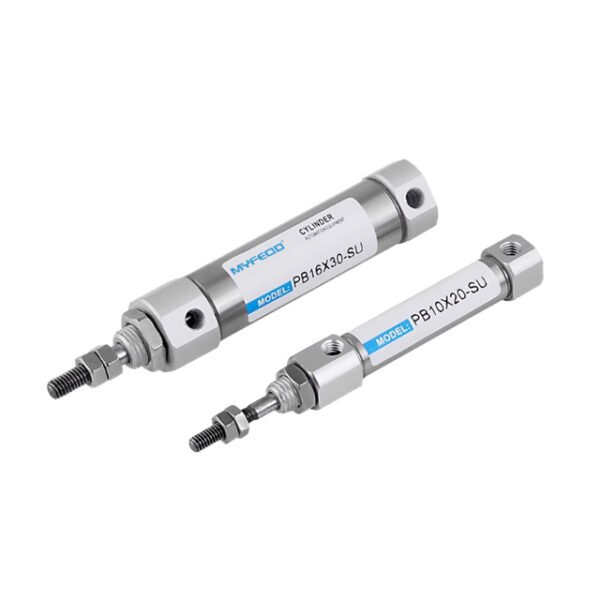

PB Series small pneumatic cylinders consists of miniature pen-style cylinders featuring a slender, pen-like profile and a stainless steel barrel and piston rod. Compact in size and capable of high-frequency reciprocating motion, they are the standard choice for short-stroke, precision pushing and lifting applications.

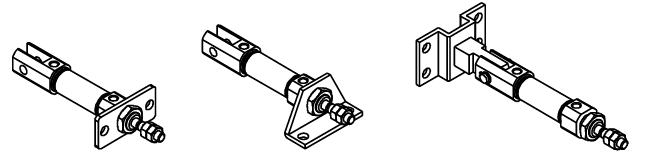

Various mounting accessories: FA front flange, LB axial mounting bracket, and CJ foot mount.

Standard front-cover mounting is used, but front-cover mounting types (PSBR, PTBR) are also available as options.

Multiple rear cover configurations are available: CB (double clevis), U (radial air inlet), and R (axial air inlet).

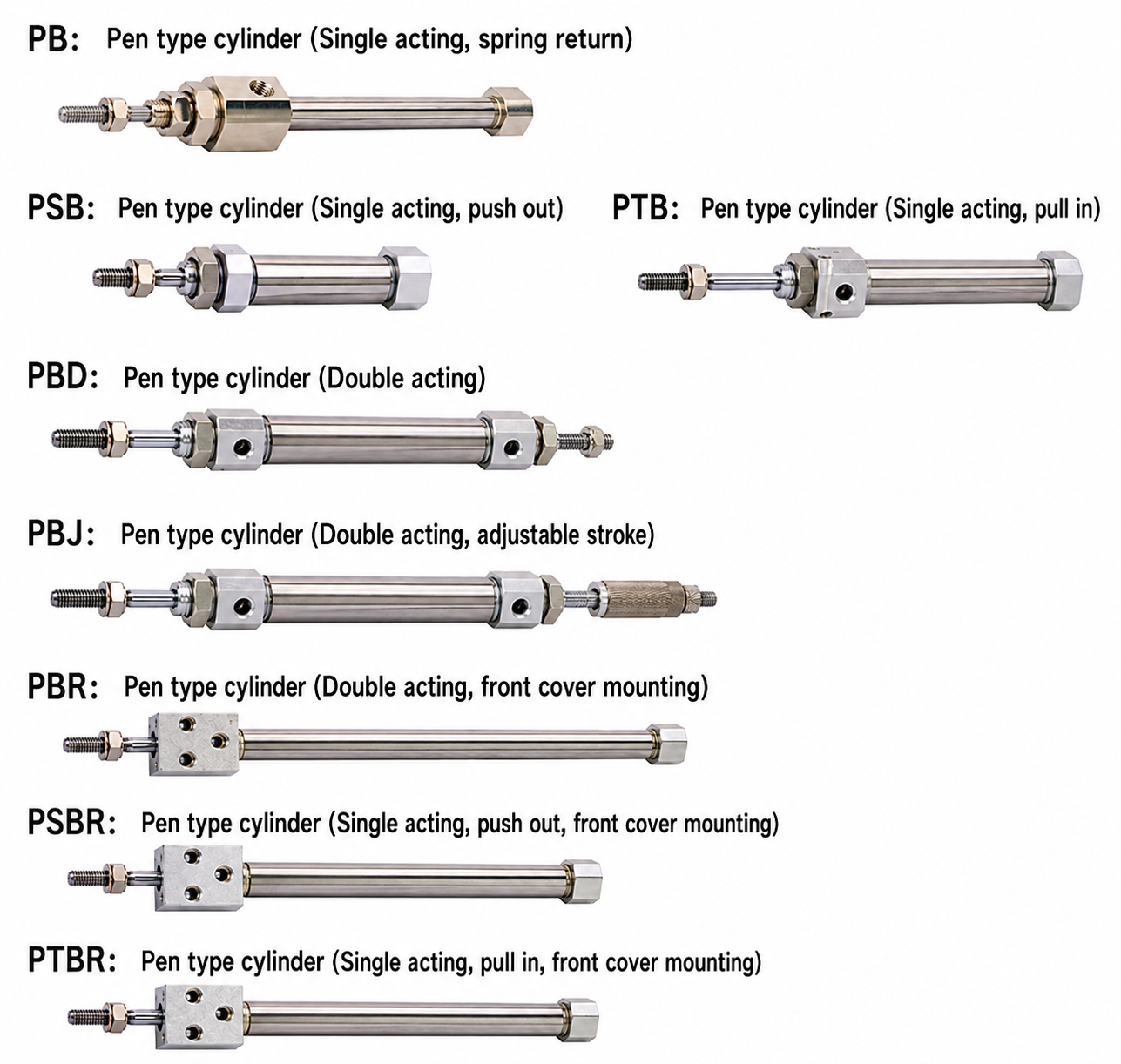

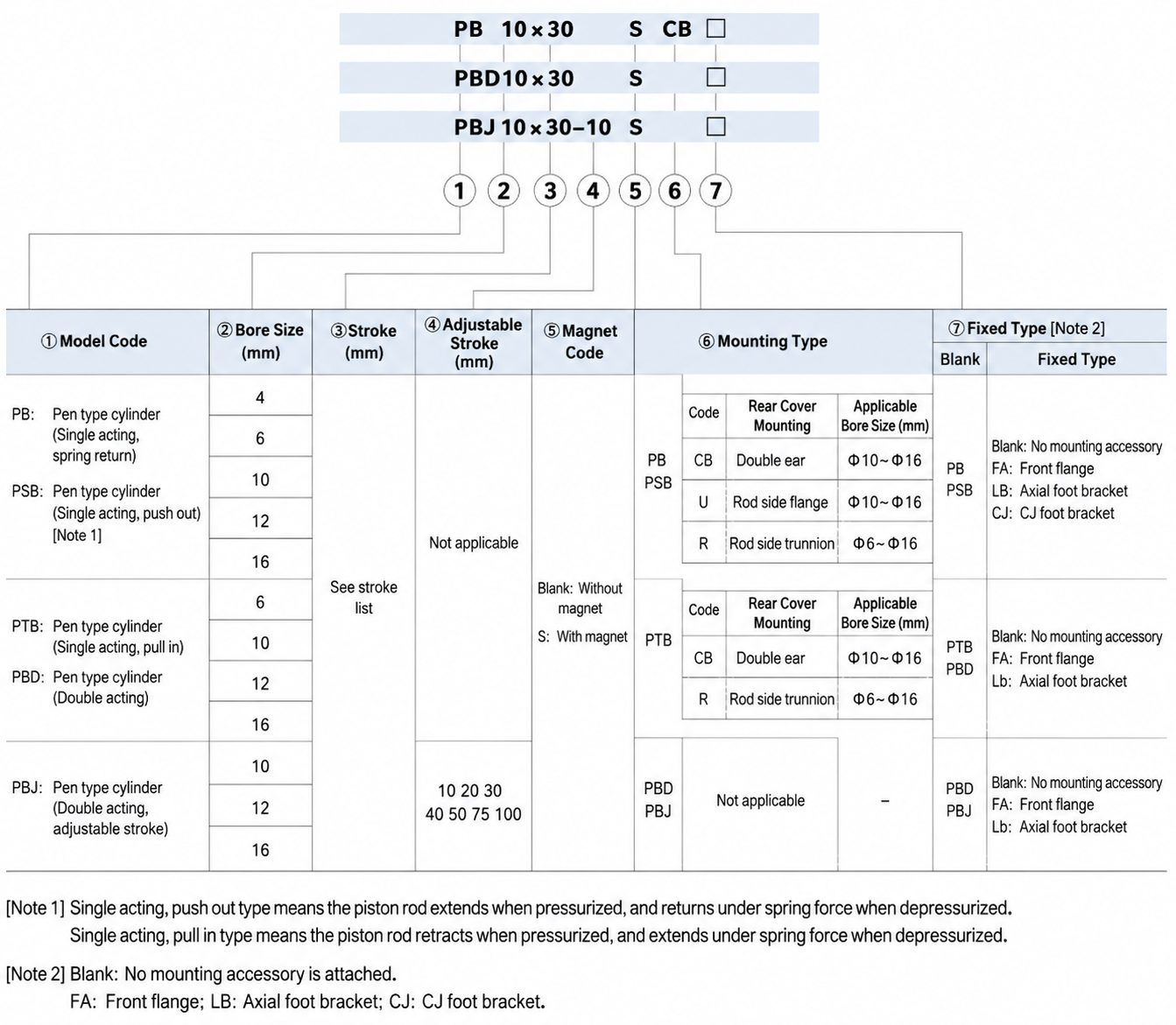

Various cylinder specifications available:
PB Pen-type cylinder (double-acting)
PSB Pen-type cylinder (single-acting, push type)
PTB Pen-type cylinder (single-acting, pull type)
PBD Pen-type cylinder (double-rod, double-acting)
PBJ Pen-type cylinder (double-rod, double-acting, adjustable stroke)

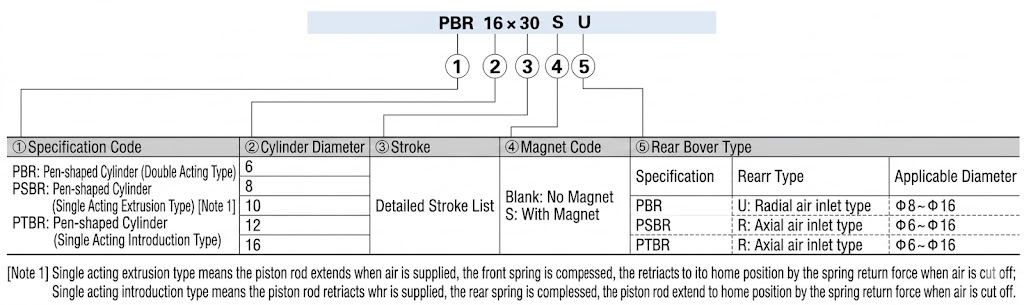

PBR Pen-type cylinder (double-acting, front-cap mount)
PSBR Pen-type cylinder (single-acting, push type, front-cap mount)
PSBR Pen-type cylinder (single-acting, pull type, front-cap mount)

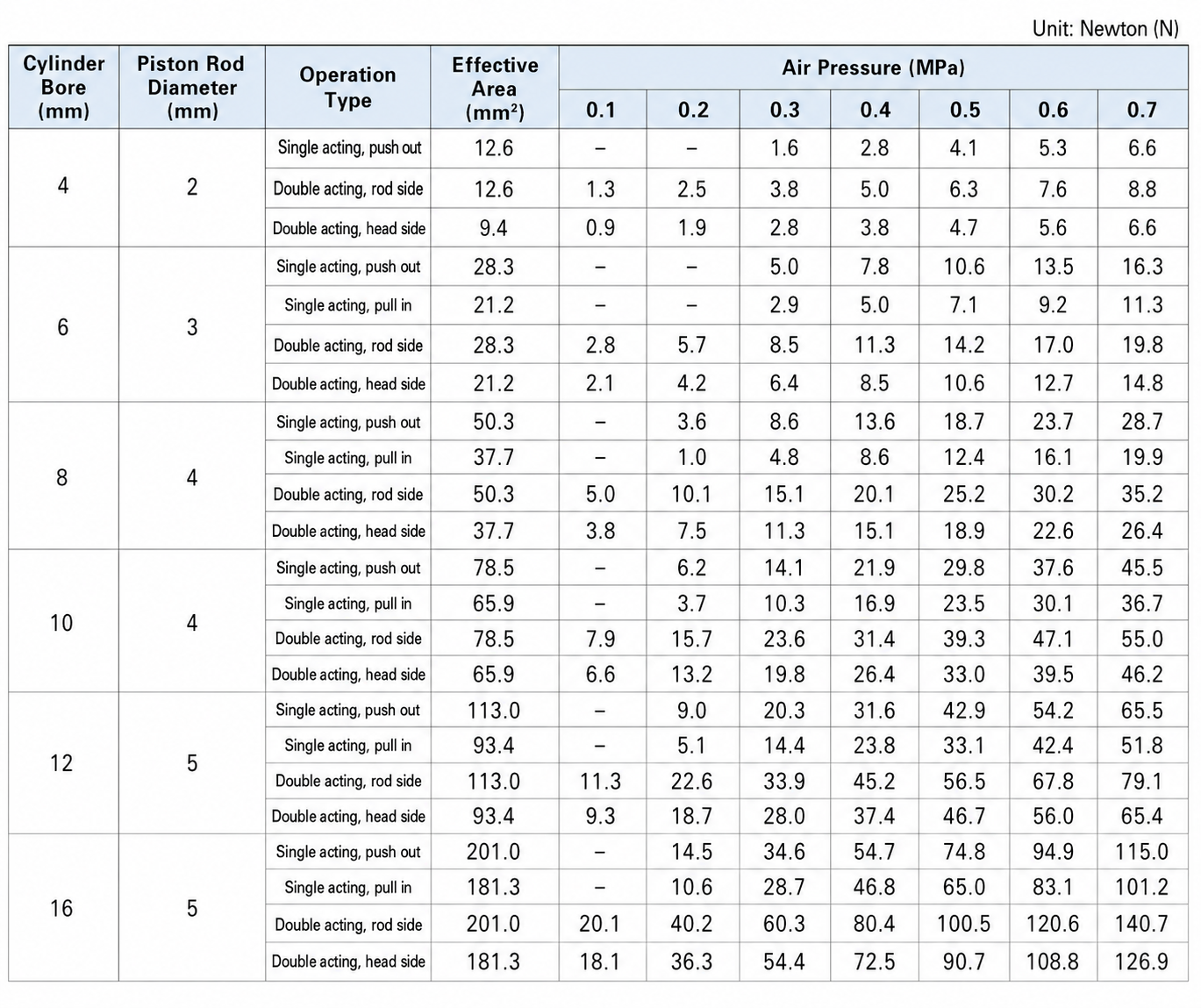

Theoretical Output Force Chart for Pneumatic Cylinders

Technical Specifications

Inner diameter mm (bore diameter)			4	6	8	10	12	16
PB Series Action Form			Double-acting type, single-acting push type	Double-acting type, single-acting push type, single-acting pull type	Bore size not available	Double-acting type, single-acting push type, single-acting pull type
PBR Series Action Form			Bore size not available	Double-acting type, single-acting push type, single-acting pull type
Working Medium			Air (filtered through a 40 µm mesh screen)
PB Series Operating Pressure Range	Double-acting type	4	0.2~0.7Mpa(28~100psi)(2.0~7.0bar)
		6	0.15~0.7Mpa(22~100psi)(1.5~7.0bar)
		10/12/16	0.15~0.7Mpa(22~100psi)(1.5~7.0bar)
	Single-acting type	4	0.3~0.7Mpa(45~100psi)(3.0~7.0bar)
		6	0.3~0.7Mpa(45~100psi)(3.0~7.0bar)
		10/12/16	0.2~0.7Mpa(28~100psi)(2.0~7.0bar)
PBR Series Operating Pressure Range	Double-acting type		Bore size not available	0.15~0.7Mpa(22~100psi)(1.5~7.0bar)
	Single-acting type			0.3~0.7Mpa(45~100psi)(3.0~7.0bar)	0.2~0.7Mpa(28~100psi)(2.0~7.0bar)
Guaranteed Pressure Resistance			1.2Mpa（175Psi）（12bar）
Operating Temperature			-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
PB Series Operating Speed Range			50~500mm/s	50~800mm/s	Bore size not available	50~800mm/s
PBR Series Operating Speed Range			Bore size not available	50~800mm/s
PB Series Stroke Tolerance Range			+0.5	0~150 +1.0 ＞150 +1.5	Bore size not available	0~150 +1.0 ＞150 +1.5
PBR Series Stroke Tolerance Range			Bore size not available	0~150 +1.0 ＞150 +1.5
Buffering Form			PB series No buffering device	Anti-collision pad (rubber gasket)
Connection Thread Type			PB series Pipe-connection type	Thread M5×0.8

Standard Stroke

Inner diameter mm (bore diameter)		Standard Stroke（mm）	Maximum Stroke	Allow Stroke
PB	4	5 10 15 20	20	20
	6	10 15 20 25 30 40 50 60	60	60
	10	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	200
	12	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	300
	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	300
PBD	6	5 10 15 20 25 30 40 50	50	..
PBD PBJ	10	10 15 20 25 30 40 50 60 75 80 100	100	..
	12	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	..
	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	..
PSB	4	5 10 15 20	..	..
PSB PTB	6	5 10 15 20 25 30 40 50 60	..	..
	10	5 10 15 20 25 30 40 50 60	..	..
	12	5 10 15 20 25 30 40 50 60	..	..
	16	5 10 15 20 25 30 40 50 60	..	..
PBR	6	10 15 20 25 30 40 50 60	60	60
	8	10 15 20 25 30 40 50 60 75 80 100 125 150	150	200
	10	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	200
	12	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	200	300
	16	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	300
PSBR PTBR	6	5 10 15 20 25 30 40 50 60	..	..
	8	5 10 15 20 25 30 40 50 60	..	..
	10	5 10 15 20 25 30 40 50 60	..	..
	12	5 10 15 20 25 30 40 50 60 75	..	..
	16	5 10 15 20 25 30 40 50 60 75 100	..	..
