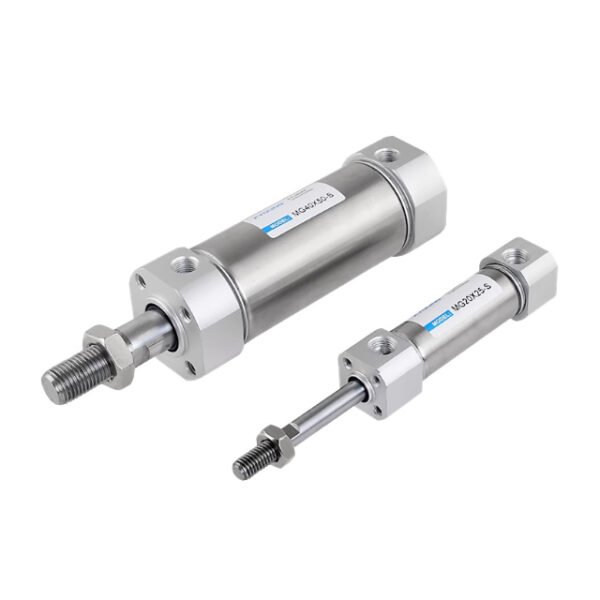

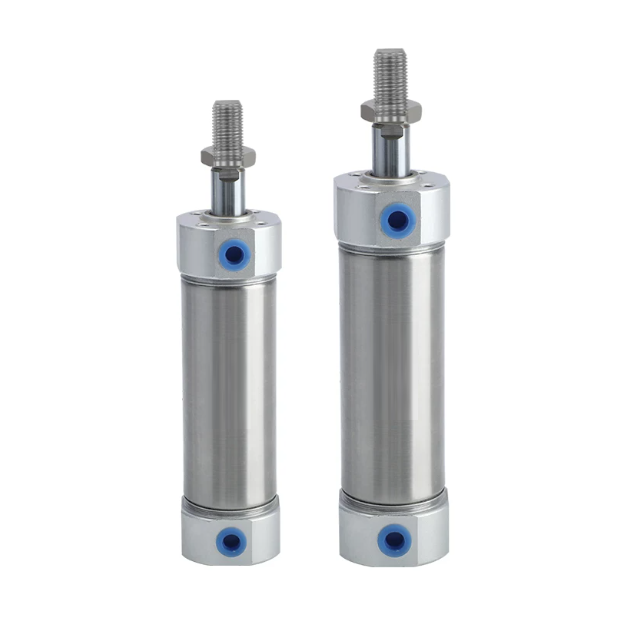

MG Series Mini Air Cylinder

Complies with JIS standards;
The piston seal features a specialized double-acting design that is compact and offers oil-retention capabilities;
Fixed bumpers on the front and rear caps reduce impact during cylinder reversal;
The front and rear caps are securely joined to the stainless steel body via a reliable riveted/crimped structure;
The cylinder barrel is made of high-precision stainless steel tubing, ensuring high strength and corrosion resistance;
A wide range of mounting accessories is available for customer selection.

Share with friends:

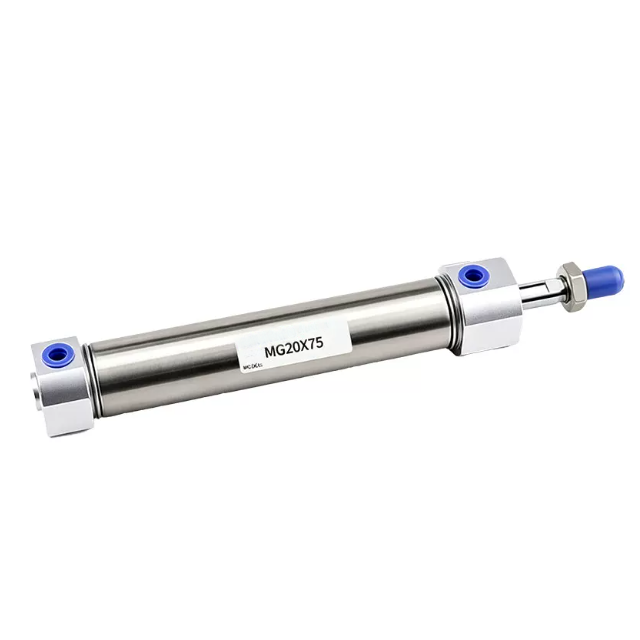

Introduction to the MG Series Mini Air Cylinder

The MG series consists of stainless steel mini-cylinders with large bores that comply with JIS standards. Classified as heavy-duty round pneumatic actuators, they differ from the MA (ISO6432 small-bore) and MF compact mini-cylinder series; the MG series focuses on larger bore sizes ranging from 20 mm to 63 mm, offering higher thrust and greater load-bearing capacity. They are well-suited for medium-load push-pull applications in small-to-medium automation equipment. Featuring a fully stainless steel cylinder barrel for rust resistance and durability, the series supports various configurations, including single-acting, double-acting, adjustable air cushioning, and double-rod versions.

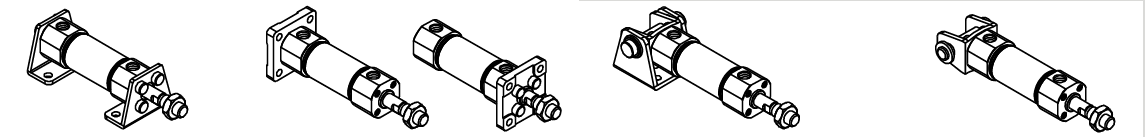

Various mounting accessories: axial mounting bracket (LB), flange mounting plate (FA), clevis bracket (for use with SDB and CB), and clevis mount (CB).

Riveted and rolled-seam structure: The front and rear end caps are joined to the stainless steel pneumatic cylinder barrel using a riveted and rolled-seam structure, ensuring a reliable connection.

A wide range of cylinder specifications available:

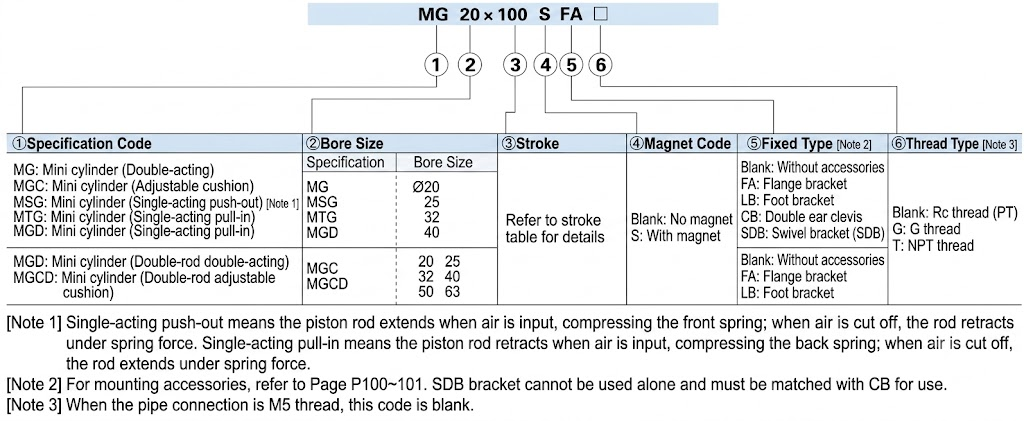

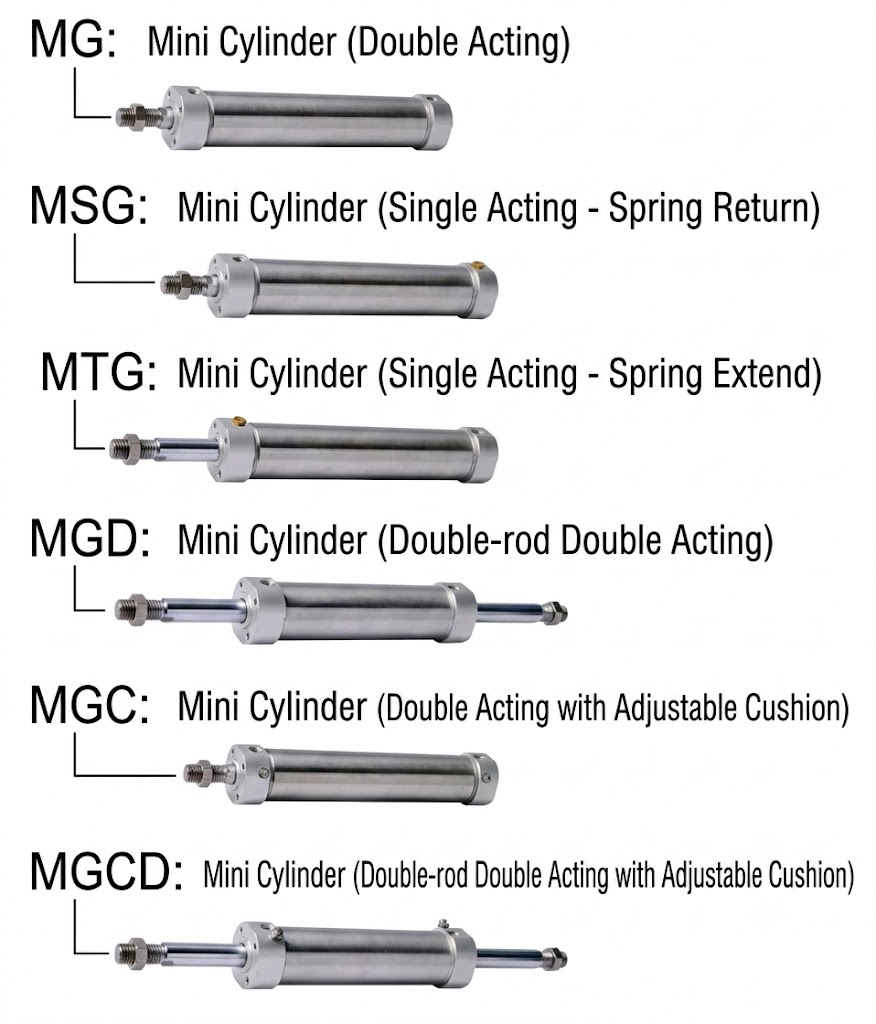

MG (double-acting), MSG (single-acting, push type), MTG (single-acting, pull type), MGD (dual-rod, double-acting), MGC (double-acting with adjustable cushioning), and MGCD (dual-rod, double-acting with adjustable cushioning).

Multiple cushioning types: fixed shock-absorbing pads on the front and rear caps, with adjustable pneumatic cushioning.

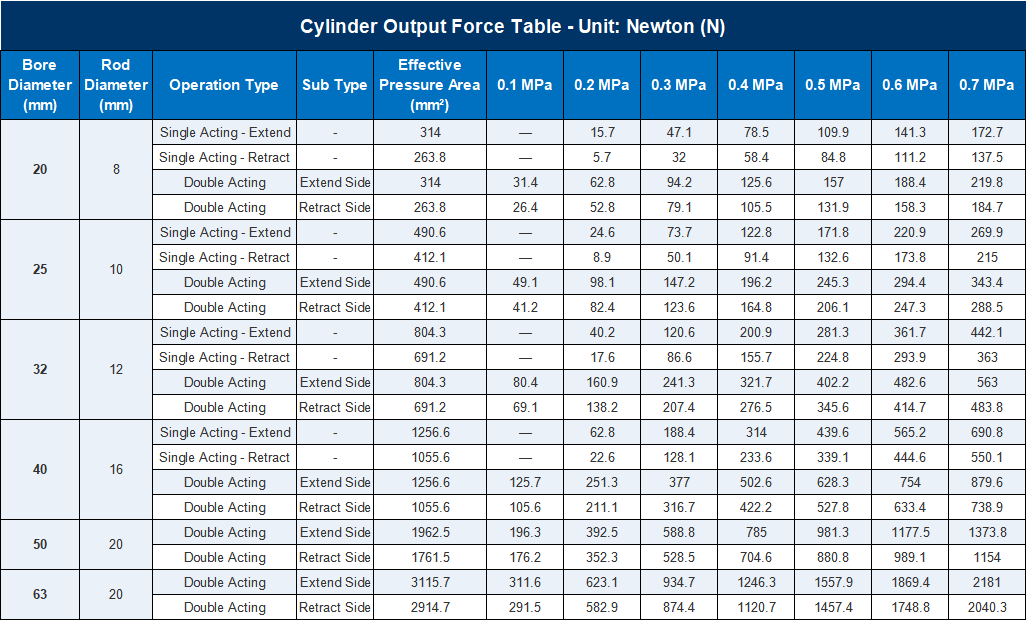

Theoretical Cylinder Output Force Table

Technical Specifications

Inner diameter mm (bore diameter)		20	25	32	40	50	63
Cylinder action type	MSG MTG	Single-acting type				..
	MG MGD	Double-acting type				..
	MGC MGCD	Double-acting cushioned type
Working Medium		Air (filtered through a 40 µm mesh screen)
Operating pressure range	Double-acting type	0.15~1.0Mpa(22~145psi)(1.5~10bar)
	Single-acting type	0.2~1.0Mpa(28~145psi)(2.0~10bar)
Guaranteed pressure resistance		1.5Mpa(215psi)(15bar)
Operating Temperature		-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Operating Speed Range		Double-acting type: 30–800 mm/s Single-acting type: 50–800 mm/s
Stroke Tolerance Range		0~150 +1.0 ＞150 +1.5
Buffering Form		Adjustable pneumatic cushioning and impact-absorbing bumper cushioning.				Adjustable air cushioning
Interface thread size	Adjustable air cushioning	M5*0.8	PT1/8			PT1/4
	Cushioning-type anti-collision pad	PT1/8				..
Compatible with magnetic switch sensors		Airtac-style CS1 series, Airtac-style DMS series, SMC-style D-Z73/A93 series

Available thread types for the connection include PT, G, and NPT.

Standard Stroke

Inner diameter mm (bore diameter)		Stroke（mm）		Maximum Stroke	Allow Stroke
Inner diameter mm (bore diameter)		Standard Stroke（mm）	Long stroke	Maximum Stroke	Allow Stroke
MG MGC	20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200	201~500	500	800
	25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	301~500	500	800
	32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	301~500	500	800
	40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	301~500	500	800
	50	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	301~500	500	800
	63	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	301~500	500	800
MGD MGCD	20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	..	500	..
	25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	..	500	..
	32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	..	500	..
	40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	..	500	..
	50	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	..	500	..
	63	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	..	500	..
MSG MTG	20	10 15 20 25 30 40 50 60 75 80 100 125 150	..	..	..
	25	10 15 20 25 30 40 50 60 75 80 100 125 150	..	..	..
	32	10 15 20 25 30 40 50 60 75 80 100 125 150	..	..	..
	40	10 15 20 25 30 40 50 60 75 80 100 125 150	..	..	..
