ACK series Swing clamp cylinder

ACK series Swing clamp cylinder is a rotary-downward clamping cylinder (also known as a swing-clamp cylinder) that combines rotary and linear downward motions. Its operating sequence involves first rotating, then clamping via a vertical downward stroke; the return stroke involves first lifting, then rotating to retract. It is used in tooling fixtures to clamp workpieces while clearing the space required for loading and unloading.

Operating Principle: The piston rod features an internal helical guide groove structure, and the action consists of two stroke stages:
1. Rotation Stroke: The piston rod descends while rotating, swinging the clamp arm to the preset angle (90°/180°) and positioning it over the workpiece;
2. Clamping Stroke: The piston rod moves vertically downward in a straight line to clamp the workpiece;

Note: Clamping force is generated only during the vertical downward stroke; the workpiece must not be clamped during the rotation phase.
This is a double-acting cylinder without a mechanical self-locking function; it will release the workpiece if the air supply is cut off, so continuous air supply is required to maintain clamping pressure.

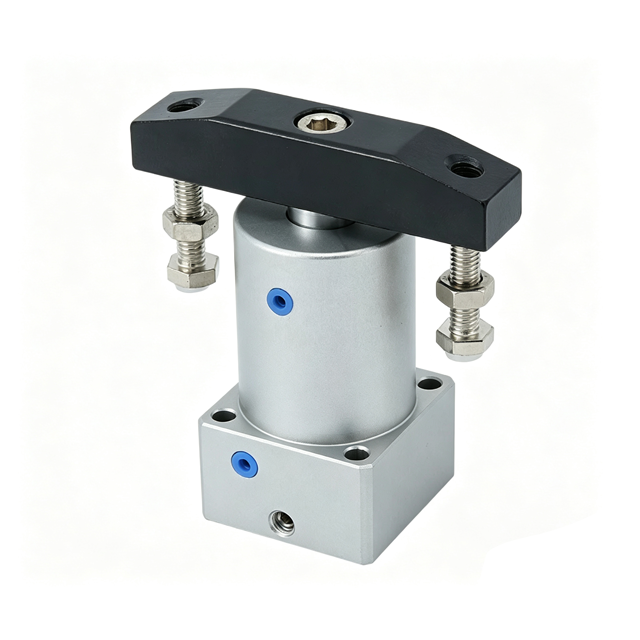

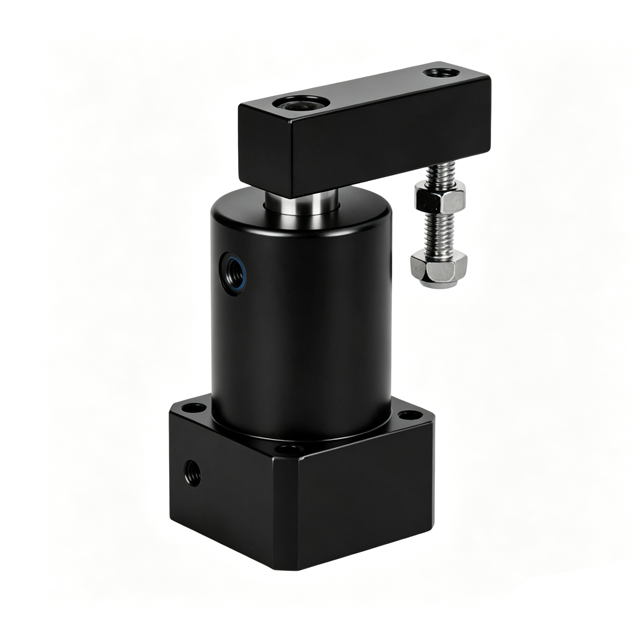

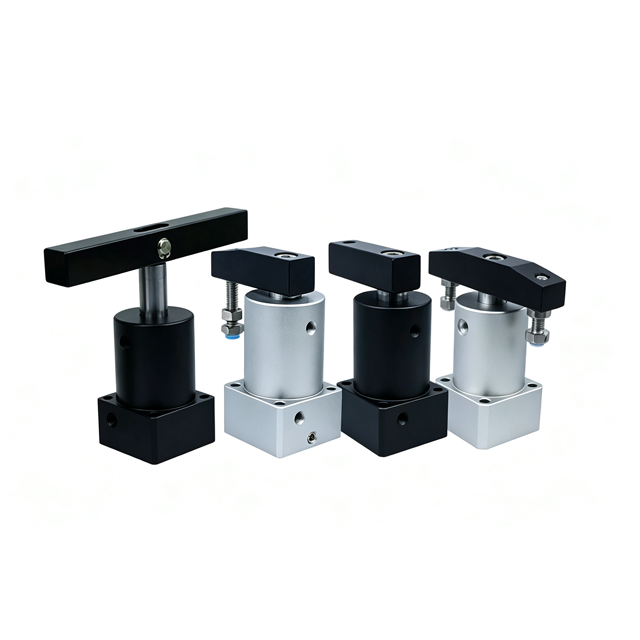

Single-sided clamping plate (ACK) and double-sided clamping plate (ACKD) options available.

Push-to-turn left (L) and push-to-turn right (R) options available.

Long service life: The piston rod is made of special alloy steel and undergoes heat treatment to ensure an extended service life.

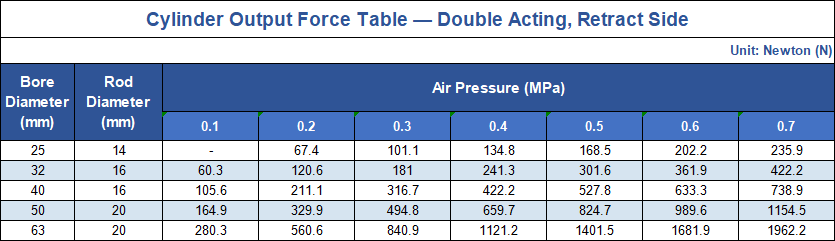

Cylinder Theoretical Clamping Force Chart

Technical Specification

Available thread types for the connection include PT, G, and NPT.

Standard Stroke

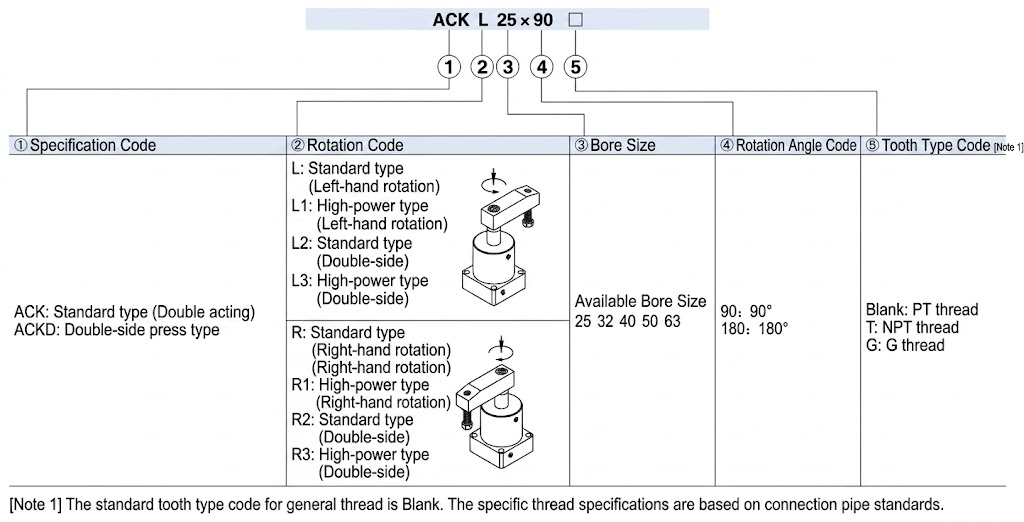

ACK series Swing clamp cylinder Finished Product Order Code

To learn more about the internal structure, material specifications, external dimensions, and accessories,

click “Contact Us.”
