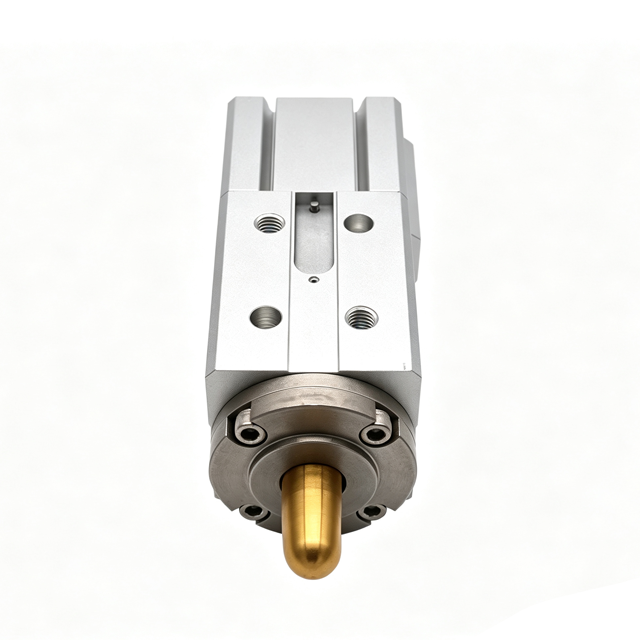

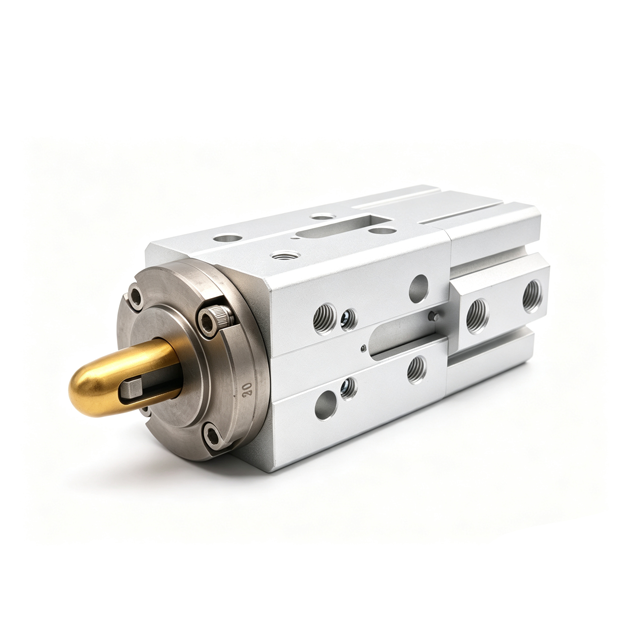

AQK/BAQK series pin clamp cylinder

AQKseries pin clamp cylinder: Standard pin clamping cylinder; BAQK series pin clamp cylinder: Cylinder with two-way locking pin, special for automobile welding fixtures, positioning + clamping two-in-one, the pin is first inserted into the positioning hole of the workpiece to complete positioning, the built-in clamping arm synchronously compresses the workpiece, mostly used for body-in-white welding tooling

Operating principle: A double-acting cylinder drives the head’s guide pin to extend, inserting it into the workpiece’s positioning hole for high-precision alignment. Once in position, the internal multi-piece clamping arms expand to clamp the workpiece from the inside. During retraction, the clamping arms withdraw first, followed by the pin retracting from the workpiece.

1. AQK Standard Model: Non-locking; the locking pin retracts upon air supply loss, rendering the positioning and clamping function ineffective.

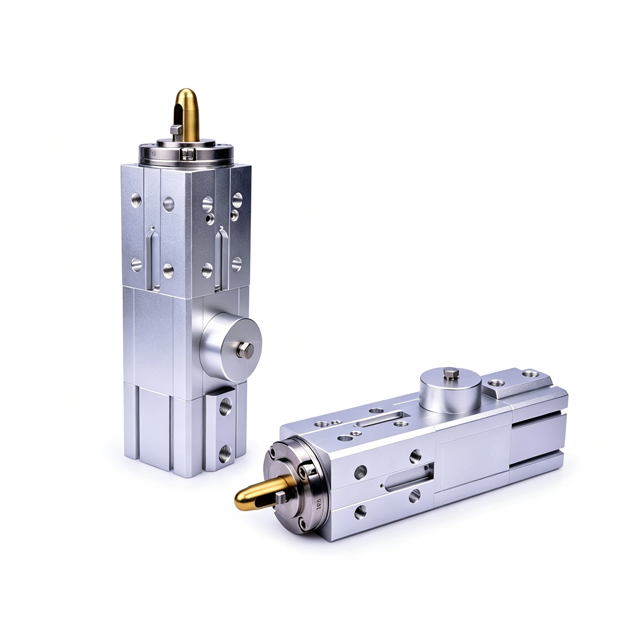

2. BAQK Locking Model: Features an internal spring-loaded clamping mechanism that locks in both extended and retracted positions; maintains the piston rod in a locked state during air supply or pressure loss to prevent pin disengagement; supports both pneumatic and manual emergency unlocking methods.

Four selectable clamping arm positions: 0°, 90°, 180°, and 270°.

Clamping position height adjustable via shims: adjustment range of 0.5~2 mm.

Features built-in sensor mounting grooves.

Combines positioning and clamping functions: positioning via the pin’s outer diameter and clamping via an integrated clamping arm.

Various pin outer diameters accommodate a range of workpiece outer diameters.

Multi-directional mounting: Locating pin holes and mounting screw holes are provided on all four sides; Types A, B, C, and D are available.

Technical Specification

Available thread types for the connection include PT, G, and NPT.

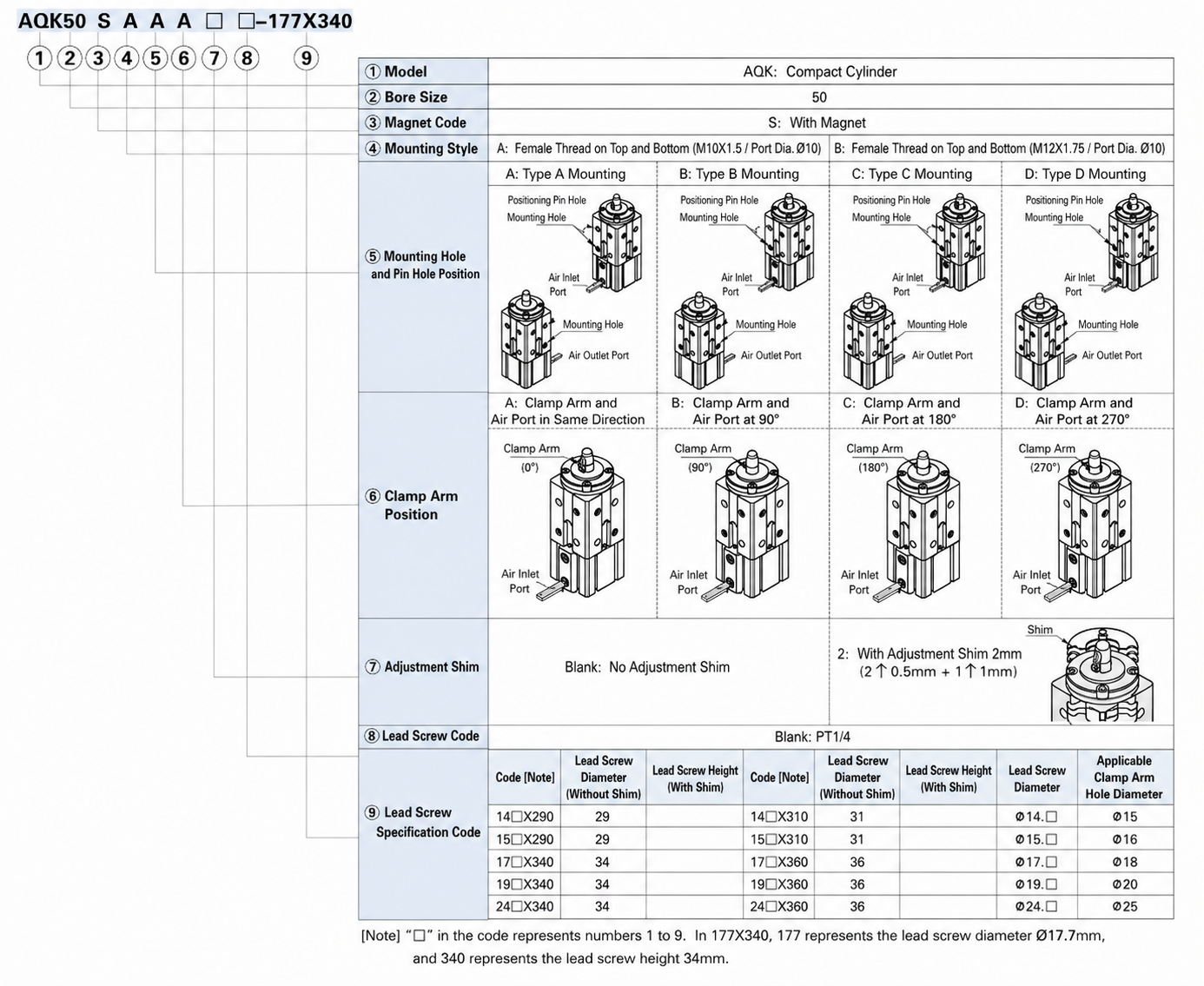

AQK series pin clamp cylinder Finished Product Order Code

To learn more about the internal structure, material specifications, external dimensions, and accessories,

click “Contact Us.”
