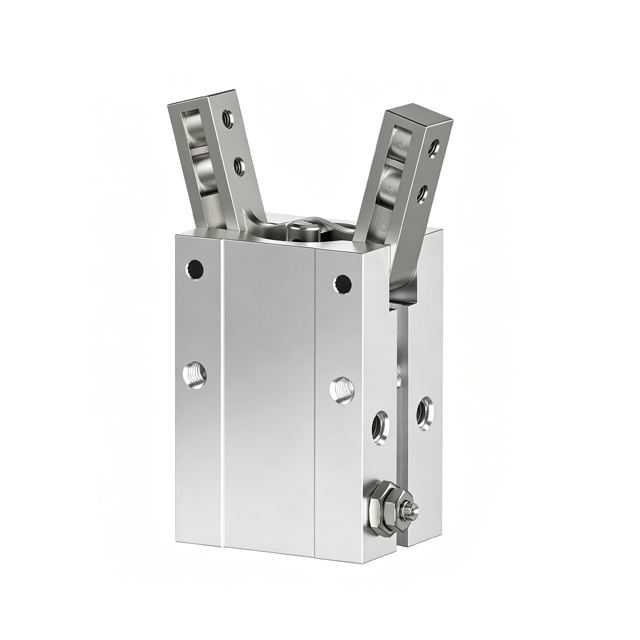

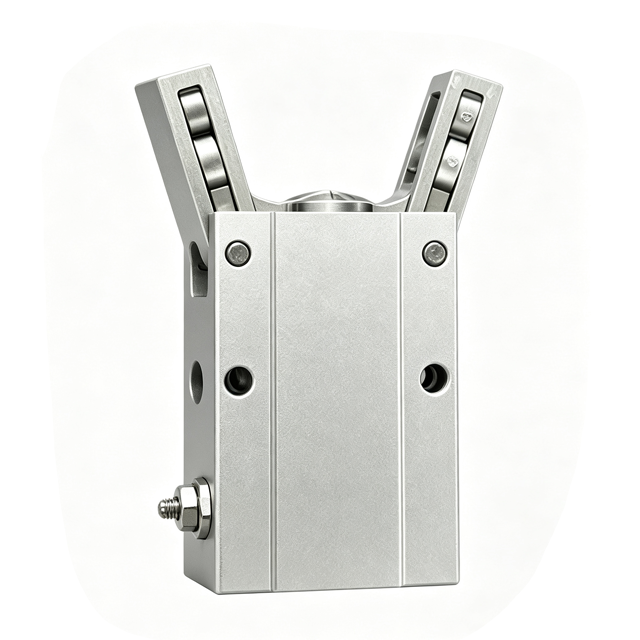

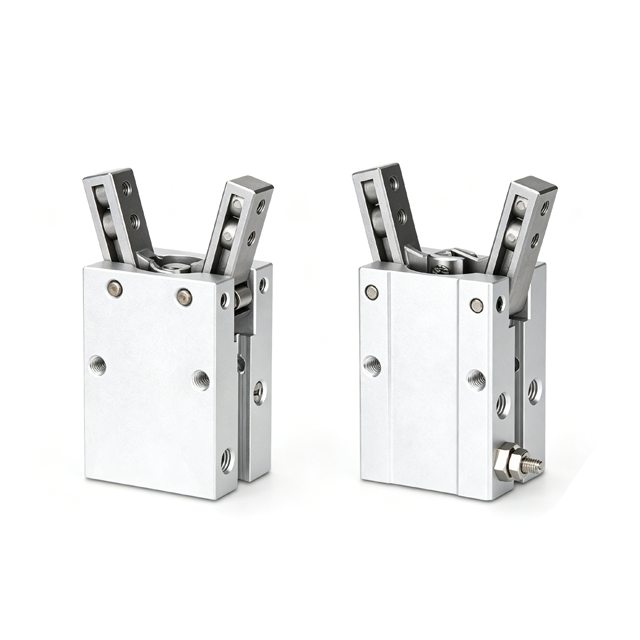

HFY series pneumatic parallel gripper

Single-piston lever mechanism, high clamping torque.
Swinging opening and closing action with excellent obstacle-clearing capability.
Stable positioning and good repeatability.
Rubber buffer pads are used for cushioning to reduce impact noise.

Share with friends:

HFY series pneumatic parallel gripper is a pivot-style (Y-type/angular) pneumatic gripper cylinder that utilizes a hinged lever mechanism to actuate the opening and closing of the gripper jaws; this differs from the parallel-style HFD and HFP models. Air pressure drives the piston, and a linkage mechanism causes the two jaws to rotate around a pivot point, opening and closing in a Y-shaped motion. It is classified as an angular gripper; a single-acting, normally open version (HFTY) is also available.

An internal single-piston drive mechanism actuates two sets of gripper jaws, causing them to pivot around a bottom fulcrum;
HFY (Double-acting): Controlled by dual air supply lines; air pressure drives both opening and clamping actions; no return spring;
HFTY (Single-acting, normally open): Springs hold the jaws open; air pressure engages clamping; the workpiece is automatically released when air pressure is cut off.

An optimal clamping angle ensures a wide range of practical applications.

Single-piston structure; high clamping torque.

Equipped with a built-in variable throttle valve, allowing for convenient adjustment of the gripper’s opening and closing speed.

Precise positioning accuracy ensures greater accuracy and reliability when gripping workpieces.

Three-sided mounting: Mounting holes are provided on both the sides and the bottom, facilitating installation and use under various conditions.

Built-in mounting grooves for sensors (magnetic switches).

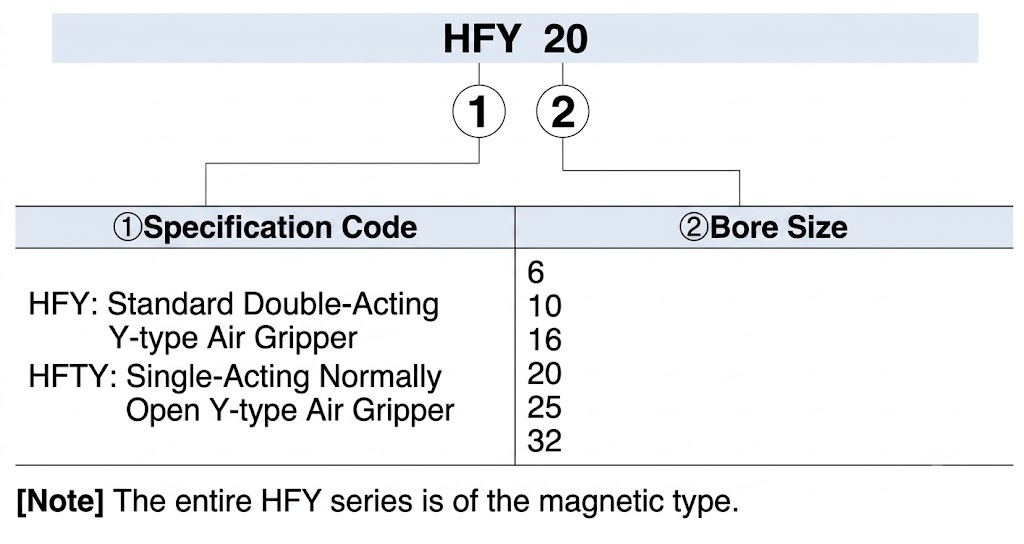

Technical Specification

Bore diameter (mm)		6	10	16	20	25	32
Cylinder action type		Double-acting type, single-acting normally open type
Working Medium		Air (filtered through a 40 µm mesh screen)
Operating pressure range	Double-acting type	0.2~0.7Mpa(29~100psi)		0.15~0.7Mpa(22~100psi)
	Single-acting type	0.3~0.7Mpa(45~100psi)	0.25~0.7Mpa(36~100psi)
Operating Temperature		-20°C~70°C
Apply oil / Add oil / Lubricate		Cylinder section: Not required; Gripper moving parts: Required (apply grease to parts with relative motion).
Cushioning type		Anti-collision pad
Maximum operating frequency		180 （C.P.M）
Installation Method		Side mounting, front threaded hole mounting, front through-hole mounting, rear mounting
Interface thread size		M3*0.5		M5*0.8
Magnetic sensor switch		CMSG.DMSG.EMSG.CMSH.DMSH.EMSH

Theoretical clamping torque

Cylinder action type		Double-acting type （HFY）						single-acting normally open type（HFTY）
Bore diameter (mm)		6	10	16	20	25	32	6	10	16	20	25	32
Theoretical clamping torque (N·cm)	closure	7.4*P	17.6*P	90*P	152*P	304*P	637*P	5.7*P	11.8*P	71.2*P	122.4*P	252*P	589*P
Theoretical clamping torque (N·cm)	Open wide	10.6*P	29.4*P	129*P	252*P	473*P	904*P	—	—	—	—	—	—
Maximum gripping point length (L) (mm)		30	30	40	60	70	85	30	30	40	60	70	85
Opening angle (°)		30 +3
Closing angle (°)		-10 -3
