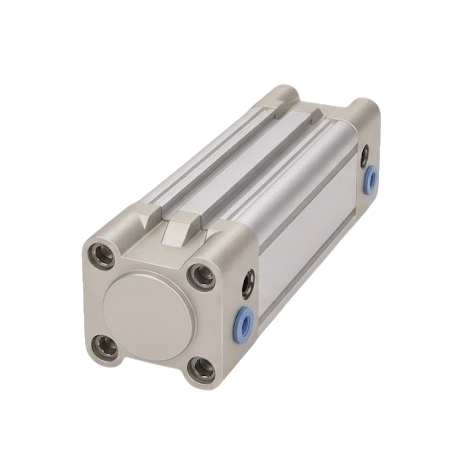

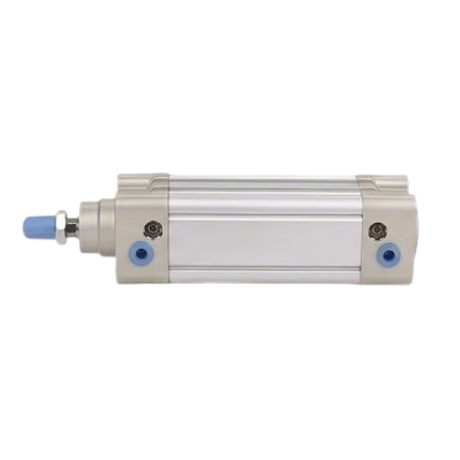

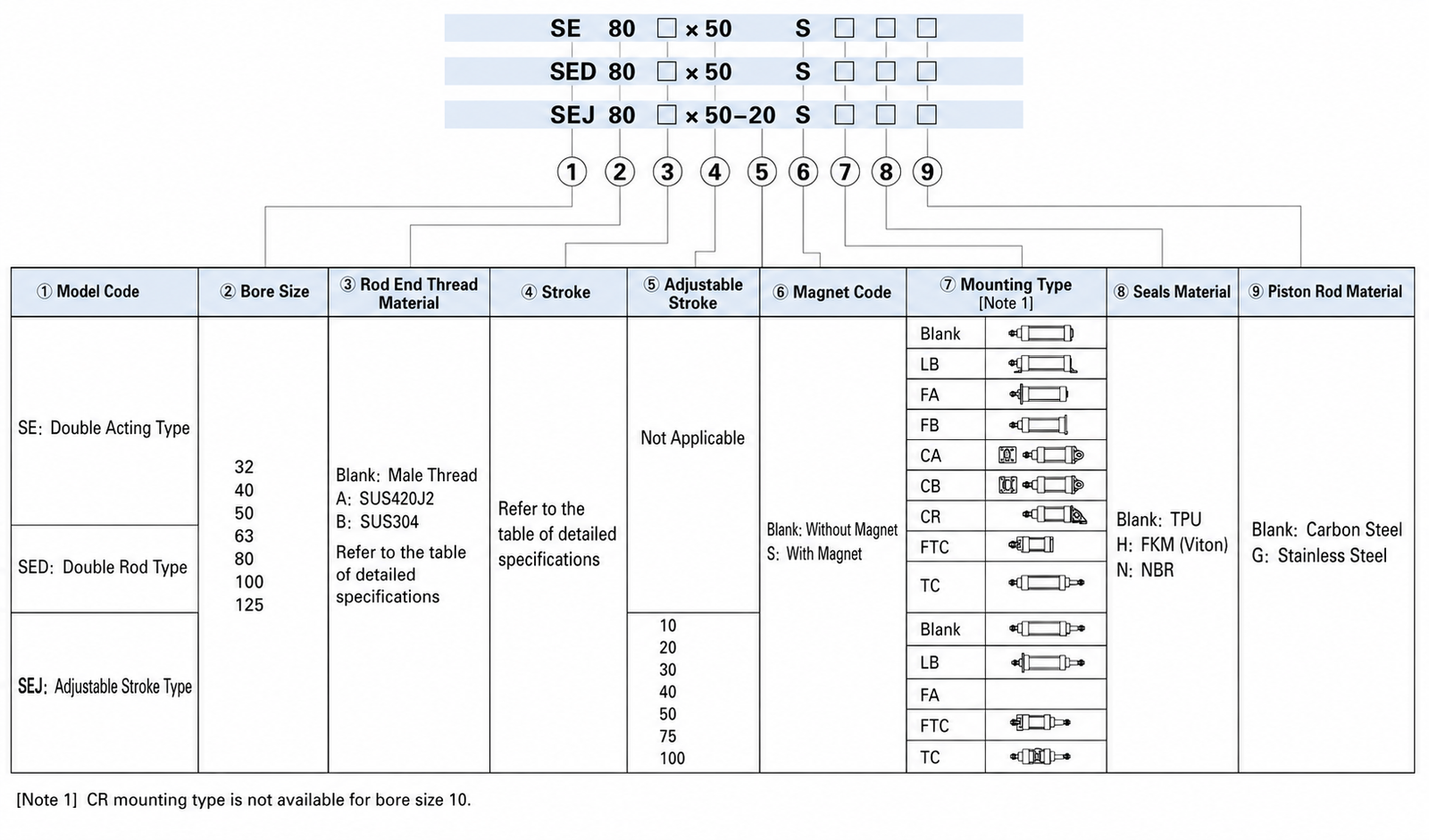

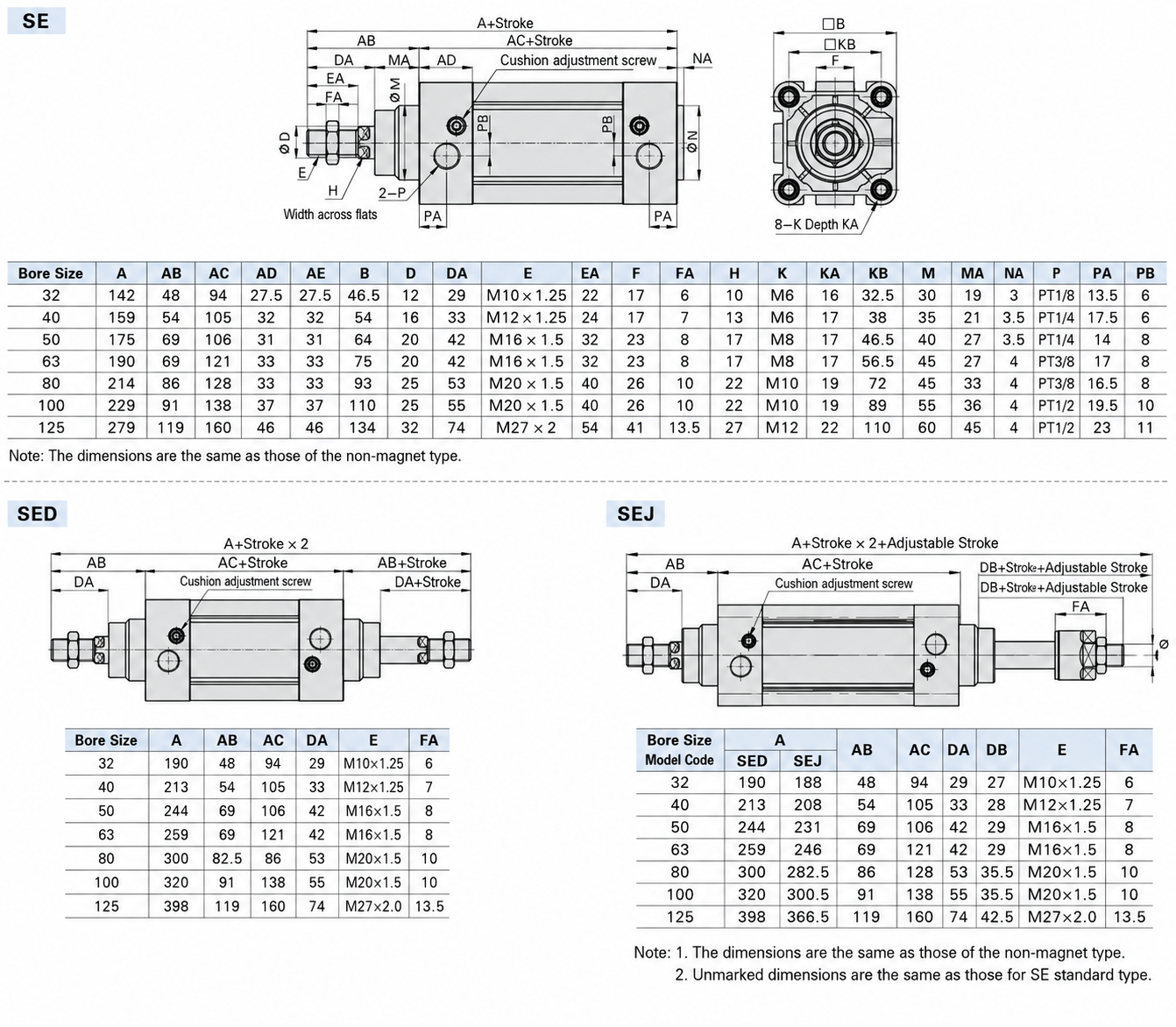

SE Series Standard Pneumatic Cylinder

ISO15552.VDMA24562 Standard Pneumatic Cylinder
No tie rods; features square aluminum tubing with excellent corrosion resistance.
Various Piston Rod End Fittings: I-Type, Y-Type, Floating, and Fish-Eye Joints.
Various Cylinder Types: SE (Double-Acting), SED (Double-Shaft Double-Acting), SEJ (Double-Shaft Double-Acting with Adjustable Stroke), and BSE (Clamping Unit Type).
The front and rear end covers feature adjustable air cushioning.
Integrated Sensor Mounting Grooves: The cylinder barrel features mounting grooves on three sides, eliminating the need for additional mounting accessories.
Various Mounting Accessories: LB, FA, FB, CA, CB, CR, FTC, TCM1, TCM2, TC.

Share with friends:

Manufactured in China, SE Series Standard Pneumatic Cylinder adheres strictly to AirTAC’s technical standards and specifications.
Piston Seal: Features a dual Y-ring unidirectional seal design, offering self-compensating capabilities, extended service life, and low start-up pressure.
Directly Interchangeable with:

AirTAC SAI Series Standard Cylinders,
Festo DNC Series and DSBC Series Standard Cylinders,
SMC CP96 Series, C96 Series, and MBB Series Standard Cylinders.

Typical Applications: Medium-load scenarios with standard installation space requirements, such as automated production lines, conveyor lines, fixtures, packaging machinery, and electronic equipment.

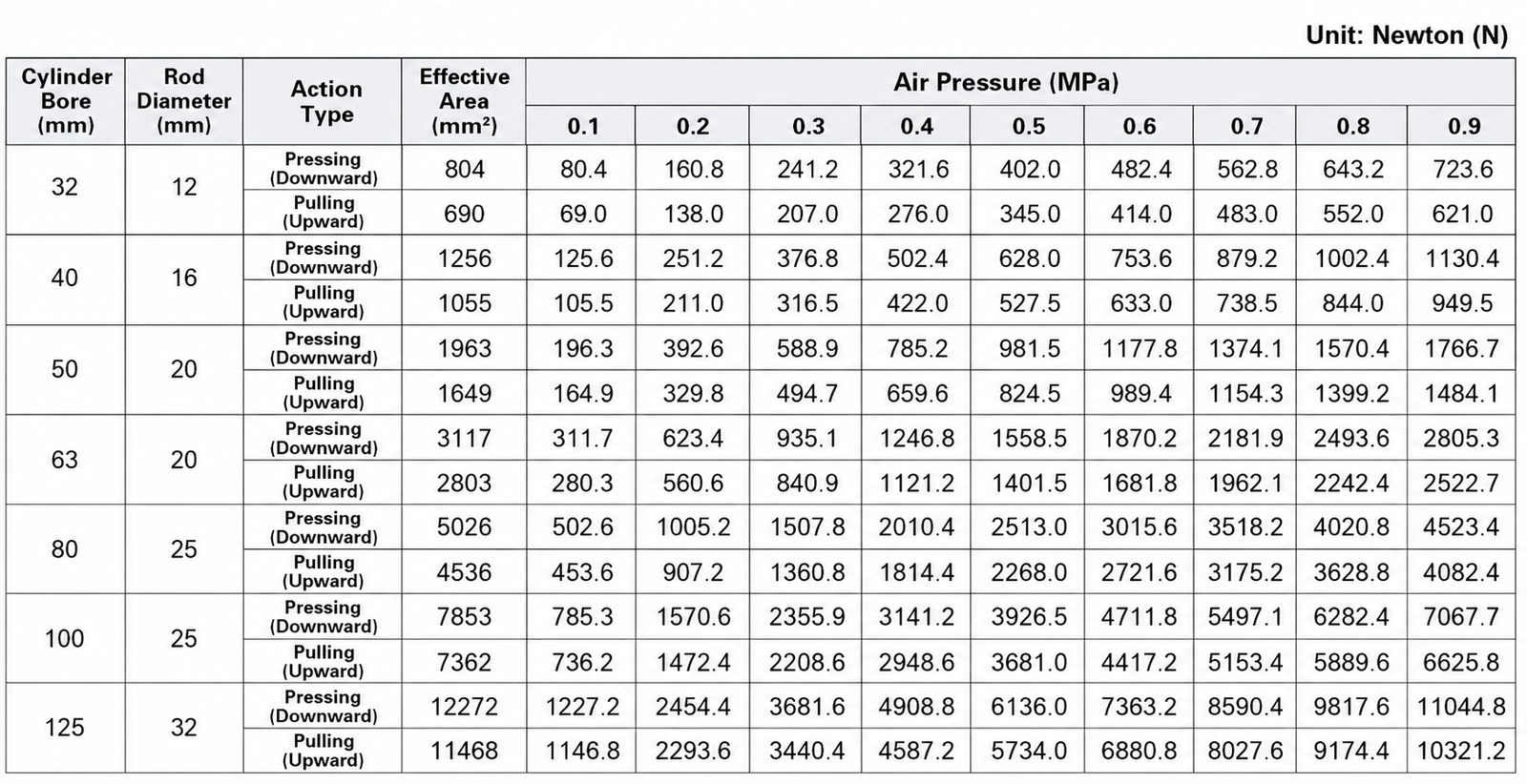

Pneumatic Cylinder Theoretical Output Force Table

Piston Rod End Connectors: I-Type Joint, Y-Type Joint, Floating Joint, Fish-Eye Joint.

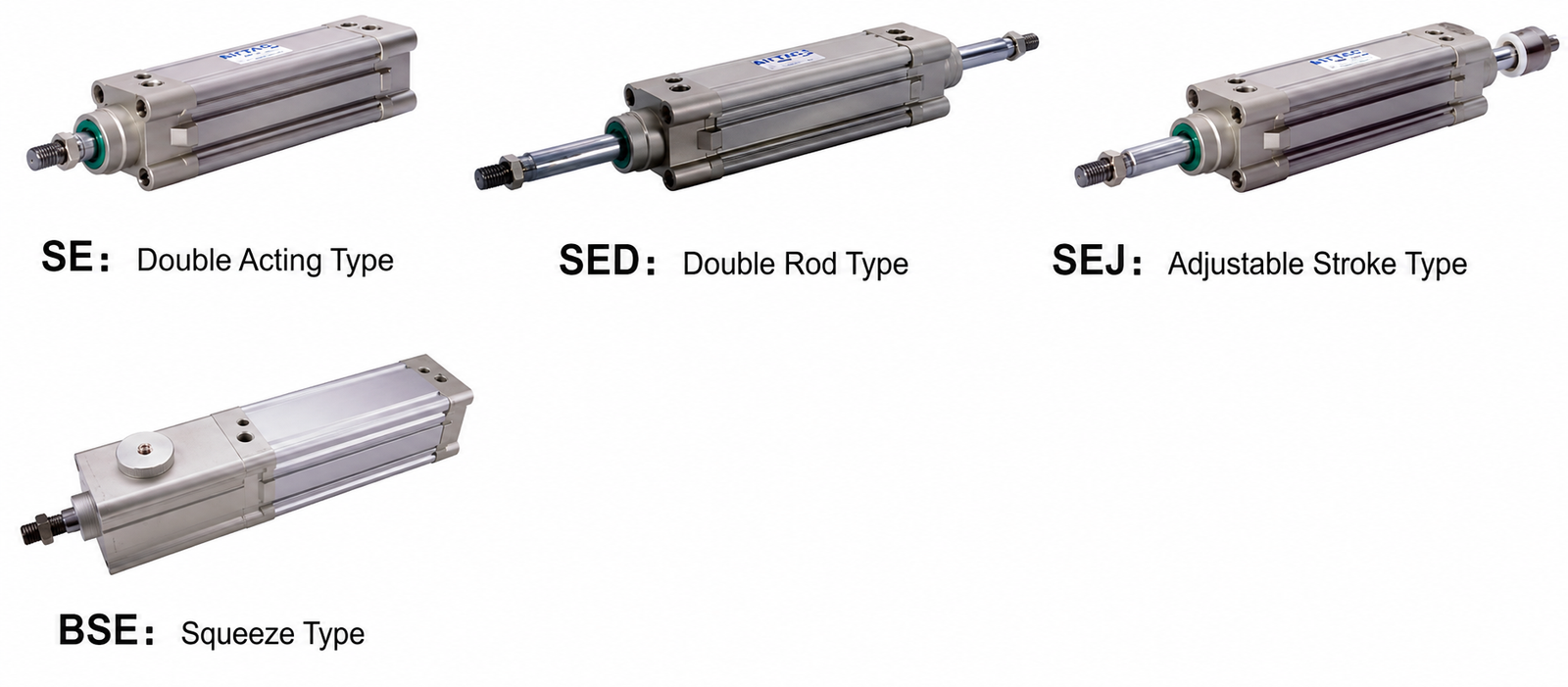

Cylinders with Various Action Modes

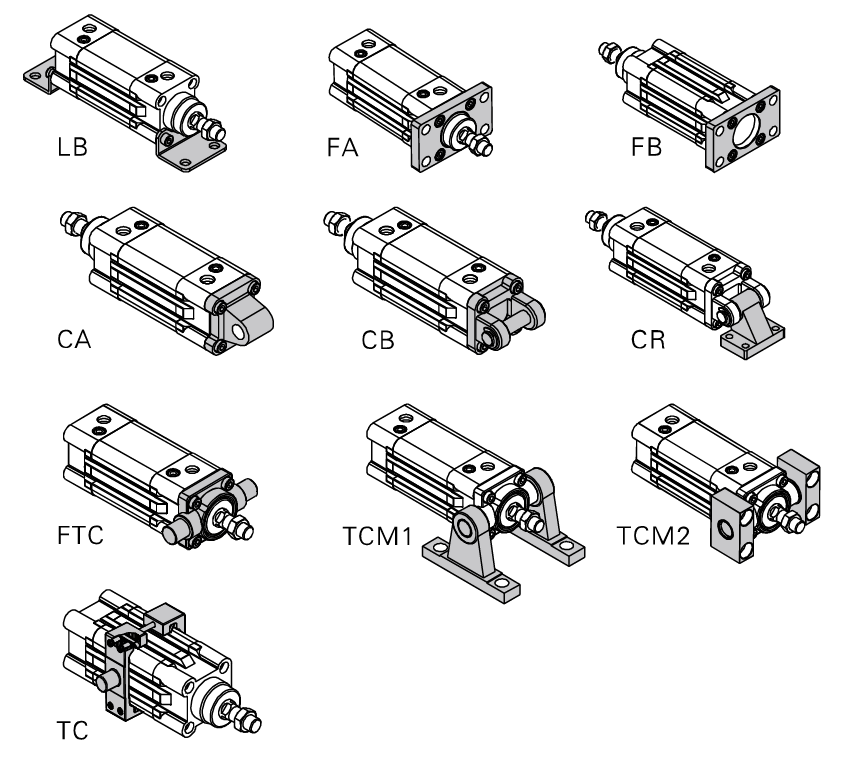

Installation Diagram for Accessories

Technical Parameters

Inner diameter mm (bore diameter)		32	40	50	63	80	100	125
Action Form		Double-acting type
Working Medium		Air (filtered through a 40 µm mesh screen)
Fixed Form	SE	Basic Type FA, FB, CA, CB,CR, LB,TC,FTC,TCM1,TCM2
	SED/SEJ	Basic Type FA, LB,TC,FTC,TCM1,TCM2
Operating Pressure Range		0.15~1.0Mpa（22~145Psi）（1.5~10.0bar）
Guaranteed Pressure Resistance		1.5Mpa（215Psi）（15bar）
Operating Temperature		-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Operating Speed Range		30~800mm/s						30~500mm/s
Stroke Tolerance Range		（0~250 +1.0）（250~1000 +1.5）（1001~1500 +2.0）
Buffering Form		Adjustable Cushioning (Air Cushioning)
Cushion Stroke （mm）		27		30		36		40
Connection Thread Type		PT1/8	PT1/4		PT3/8		PT1/2
Compatible with Magnetic Switches		DMS Series, CMS Series, CS1-E-020, SME-8 Series

Connection threads are available in PT and G options.

Standard Travel Stroke

Inner diameter mm (bore diameter)	Standard Stroke（mm）	Maximum Stroke	Allow Stroke
32	25.50.75.80.100.125.150.160.175.200.250.300.350.400.450.500.	1000	1800
40	25.50.75.80.100.125.150.160.175.200.250.300.350.400.450.500.600.700.800.	1200	1800
50	25.50.75.80.100.125.150.160.175.200.250.300.350.400.450.500.600.700.800.900.1000	1200	1800
63	25.50.75.80.100.125.150.160.175.200.250.300.350.400.450.500.600.700.800.900.1000	1500	1800
80	25.50.75.80.100.125.150.160.175.200.250.300.350.400.450.500.600.700.800.900.1000	1500	1800
100	25.50.75.80.100.125.150.160.175.200.250.300.350.400.450.500.600.700.800.900.1000	1500	1800
125	25.50.75.80.100.125.150.160.175.200.250.300.350.400.450.500.600.700.800.900.1000	1500	1800
