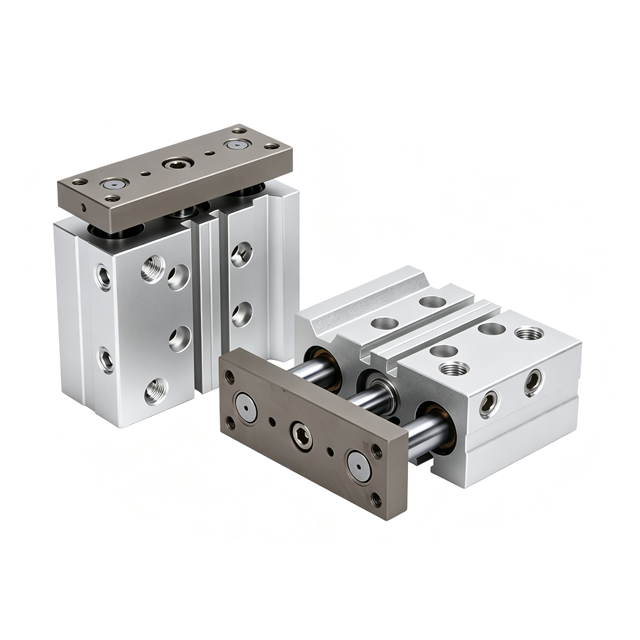

TCL TCM Series guide rod pneumatic cylinder

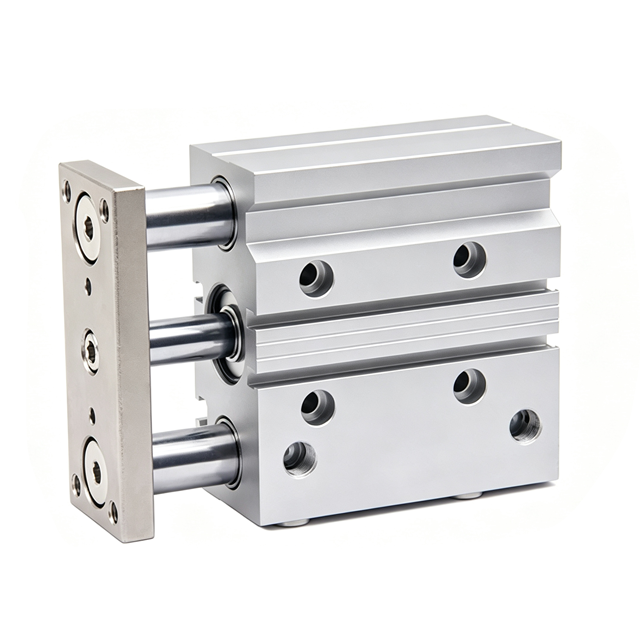

TCL TCM Series guide rod pneumatic cylinder - Image 2

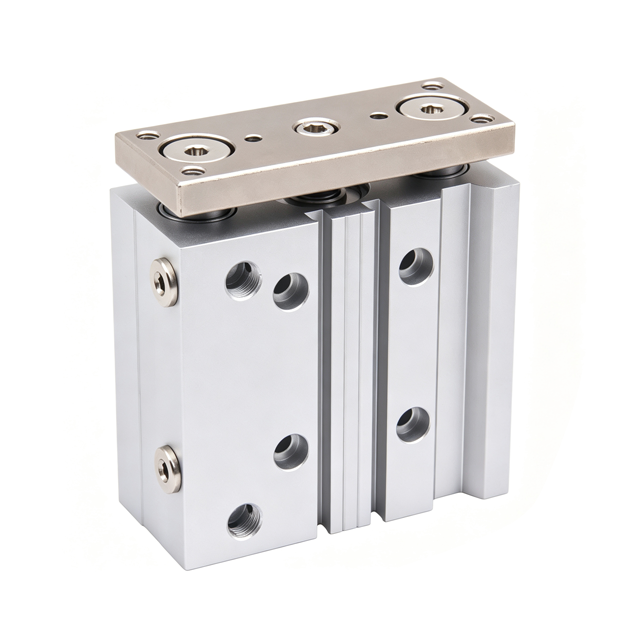

TCL TCM Series guide rod pneumatic cylinder

Complies with JIS standards;
Features two guide rods made of special bearing steel, guided by either linear ball bearings or brass sliding bearings, offering high resistance to torsional and lateral loads. Note: Linear ball bearings are suitable for lifting applications or scenarios requiring high precision and load capacity, particularly where low-friction movement is essential. Brass sliding bearings are suitable for applications involving radial loads, such as braking; they offer more than double the lateral impact resistance of standard brake cylinders and provide superior torsional rigidity.
The drive and guide units are integrated into a single body, eliminating the need for extra accessories and minimizing space requirements; selectable air ports facilitate convenient installation;
Precision positioning holes are provided on the bottom and rear faces of the body as well as on the mounting plate (see holes marked “PA” and “XX” in the dimensional drawing), enabling high-precision mounting for demanding applications;
Four sensor grooves on the body allow for versatile sensor mounting options;
The body’s unique design supports mounting and fixation from multiple directions:

Share with friends:

TCL TCM Series guide rod pneumatic cylinder are three-rod, non-rotating, three-axis pneumatic cylinders (commonly referred to as compact three-axis cylinders with guide rods). Structurally, they integrate a piston rod, two parallel guide rods, and a top load-mounting plate; this design counteracts lateral forces and prevents piston rod rotation, making them suitable for applications such as workpiece lifting, clamping, stopping, and precision pushing. While the two models share identical external mounting dimensions and profiles, the key difference lies in the type of internal guide bearings used, allowing them to meet diverse operating requirements; they are highly versatile, compact pneumatic components widely used in the automation industry.

Optional guide bearings: steel ball linear bearings (TCL) and brass sliding bearings (TCM).

Guide rod structure: Two guide rods made of special bearing steel, featuring high resistance to torsional and lateral loads.

The top and side surfaces of the unit are each equipped with a set of air inlet and outlet ports, facilitating use under various operating conditions.

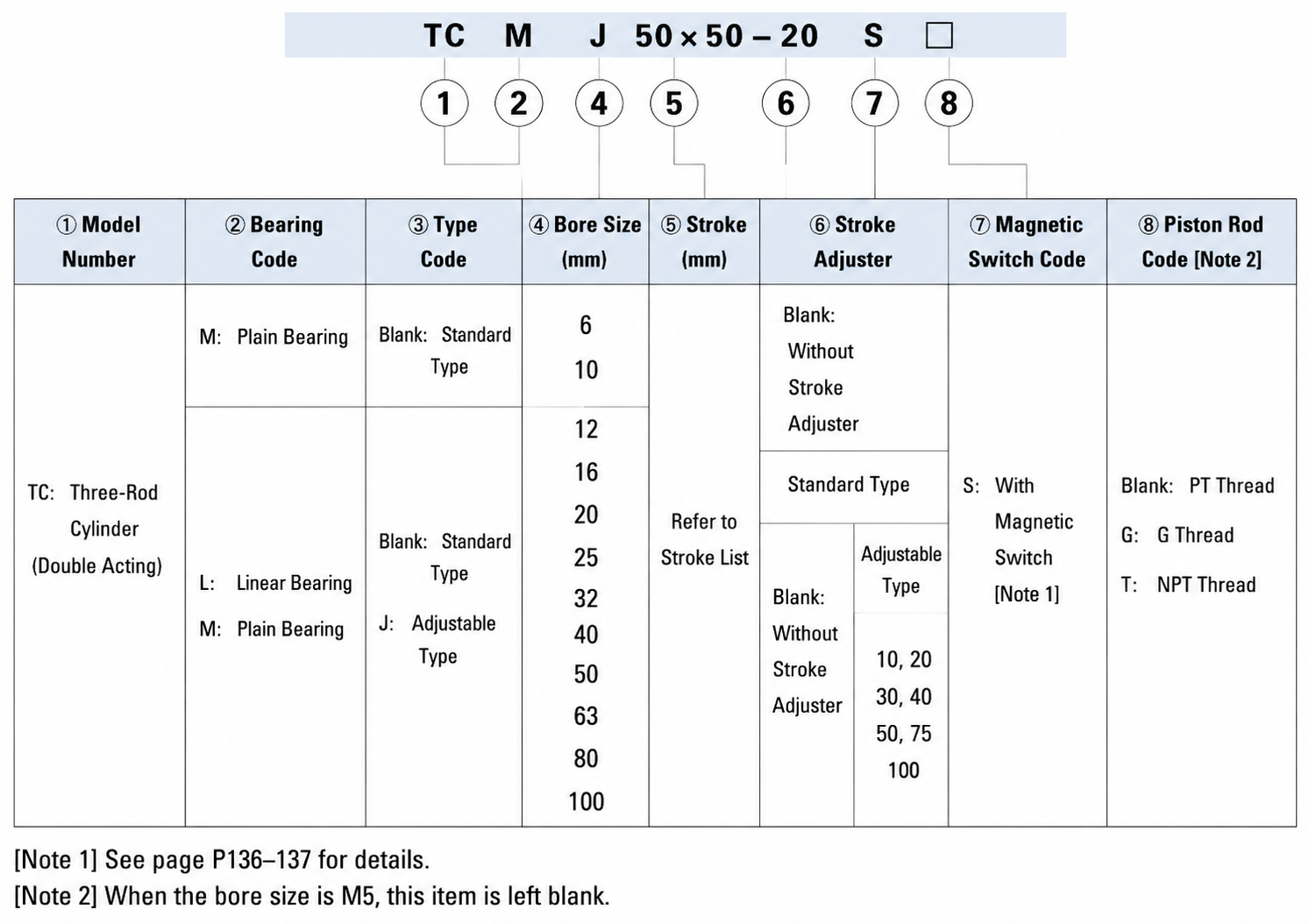

Available in TCL(M) standard and TCL(M)J adjustable models.

The cylinder body features mounting slots for magnetic sensors along its periphery.

Mounting holes are provided on the top, bottom, and rear surfaces of the unit, allowing for various installation and mounting methods.

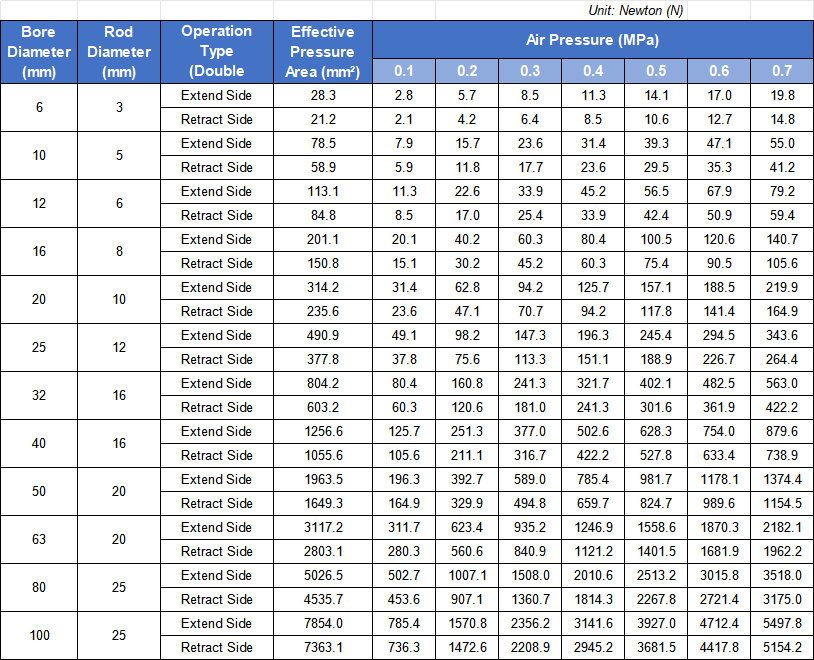

Cylinder Theoretical Output Force Chart

Technical Specifications

Bore diameter (mm)

100

Form of action

Double-acting type

Working Medium

Air (filtered through a 40 µm mesh screen)

Operating pressure range

0.2~0.7Mpa(29~100psi)

0.15~1.0Mpa(22~145psi)

Guaranteed pressure resistance

1.2Mpa(175psi)

1.5Mpa(215psi)

Operating Temperature

-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)

Operating Speed Range

50~500mm/s

30~500mm/s

50~400mm/s

Stroke Tolerance Range

≼100 +1.0 ＞100+1.5

Buffering Form

Anti-collision pad

Non-reversal accuracy

Linear bearing

±0.08°

±0.07°

±0.06°

±0.05°

±0.04°

Bronze sleeve bearings

±0.1°

±0.10°

±0.09°

±0.08°

±0.06°

±0.05°

Interface thread size

M3*0.5

M5*0.8

PT1/8

PT1/4

PT3/8

Compatible with magnetic switch sensors

DS1 Series, CS1 Series, DMSG Series, DMSE Series, DMSH Series, CMS Series, D-A93 Series, D-Z73 Series, D-C73 Series

Available thread types for the connection include PT, G, and NPT.

Standard Stroke

Inner diameter mm (bore diameter)	Standard Stroke（mm）	Maximum Stroke
6	5.10.15.20	20
10	5.10.15.20.25.30	30
12	10.20.25.30.40.50.60.70.75.80.90.100.125.150	150
16	10.20.25.30.40.50.60.70.75.80.90.100.125.150.175.200	200
20/25	20.25.30.40.50.60.70.75.80.90.100.125.150.175.200.225.250	250
32/40/50/63	25.30.40.50.60.70.75.80.90.100.125.150.175.200.225.250	250
80/100	25.30.40.50.60.70.75.80.90.100.125.150.175.200.225.250	250
