Миниатюрный пневматический цилиндр серии MF

Complies with JIS standards;
The piston seal features a specialized double-acting design that is compact and offers oil-retention capabilities;
Fixed bumpers on the front and rear covers reduce impact during cylinder reversal;
Various rear cover configurations facilitate convenient installation;
A reliable connection is achieved by mechanically crimping the front and rear covers to the stainless steel cylinder barrel;
The cylinder barrel is made of high-precision stainless steel tubing, offering high strength and corrosion resistance;
For the same bore size and stroke, the MF series cylinder is more compact in length than ISO 6432 standard cylinders.

Поделитесь с друзьями:

Миниатюрный пневматический цилиндр серии MF is a JIS-standard, compact stainless steel pneumatic actuator—a widely used miniature round cylinder characterized by its small size and lightweight design, making it ideal for the restricted installation spaces found in automation equipment.

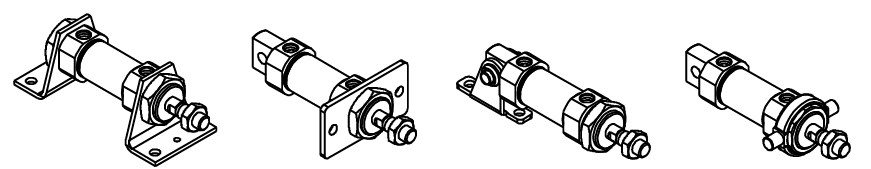

Various mounting accessories: axial mounting bracket (LB), front flange (FA), rear clevis bracket (SDB), and intermediate trunnion bracket (TC).

Riveted and rolled-seam structure: The front and rear covers are joined to the stainless steel cylinder body using a riveted and rolled-seam structure, ensuring a reliable connection.

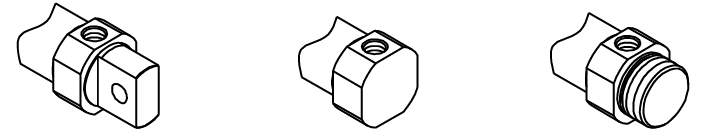

Multiple rear cover configurations are available:
CA (clevis mount), U (radial air inlet), and CM (round end cap) options facilitate installation and use across various operating conditions.

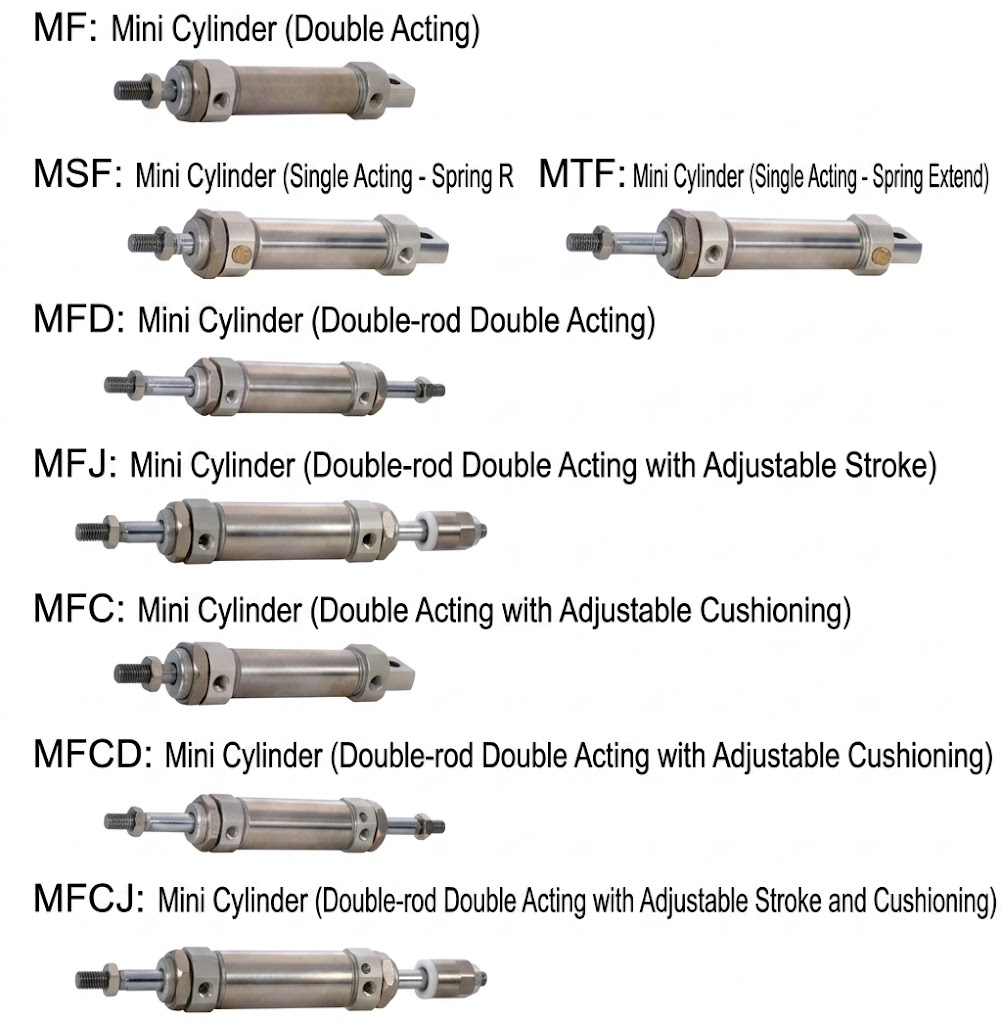

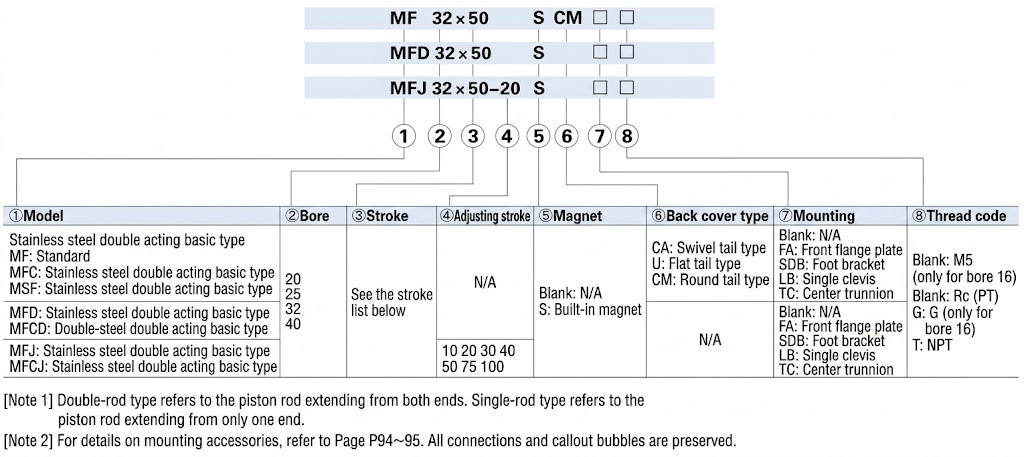

A wide range of cylinder specifications is available: MF (double-acting), MSF (single-acting, push type), MTF (single-acting, pull type), MFD (dual-shaft, double-acting), MFJ (dual-shaft, double-acting, adjustable stroke), MFC (double-acting, adjustable cushioning), MFCD (dual-shaft, double-acting, adjustable cushioning), and MFCJ (dual-shaft, double-acting, adjustable stroke and cushioning).

The front and rear covers feature fixed anti-collision cushioning pads, and the adjustable cylinder utilizes an air-cushioning mode.

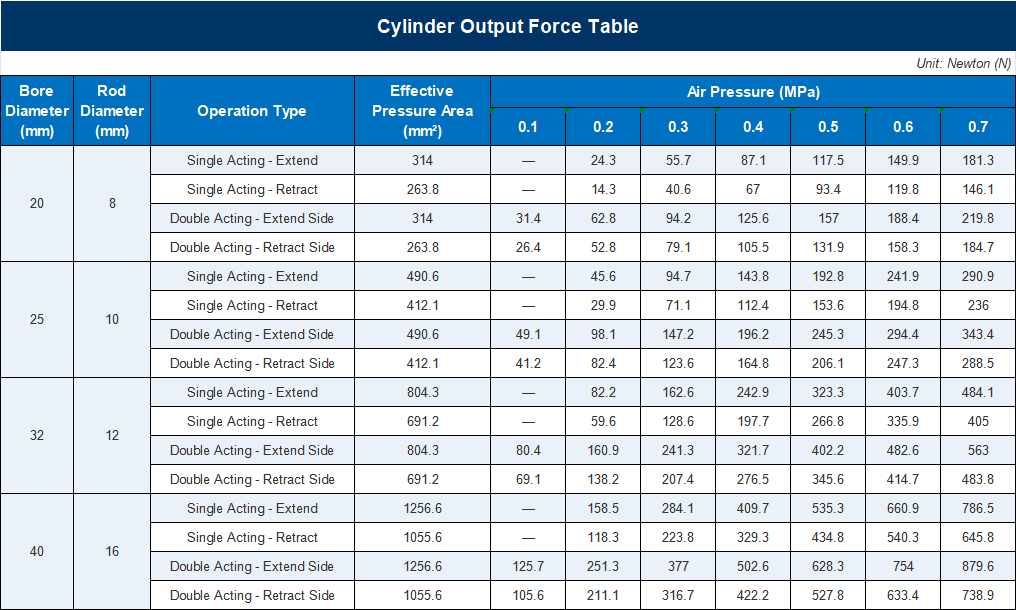

Theoretical Output Force Chart for Pneumatic Cylinders

Technical Specifications for MF Pneumatic Cylinders

Inner diameter mm (bore diameter)		20	25	32	40
Cylinder action type		Double-acting, double-acting with cushioning, single-acting (push type), single-acting (pull type)
Working Medium		Air (filtered through a 40 µm mesh screen)
Operating pressure range	Double-acting type	0.15~1.0Mpa(22~145psi)(1.5~10bar)
	Single-acting type	0.2~1.0Mpa(28~145psi)(2.0~10bar)
Guaranteed pressure resistance		1.5Mpa(215psi)(15bar)
Operating Temperature		-20°C~70°C (Select high-temperature-resistant sealing materials. Operating temperature range: 0–150°C.)
Operating Speed Range		Double-acting type: 30–800 mm/s Single-acting type: 50–800 mm/s
Stroke Tolerance Range		0~150 +1.0 ＞150 +1.5
Buffering Form		MFC, MFCD, and MFCJ series feature adjustable air cushioning, while other series utilize rubber bumpers for cushioning.
Interface thread size		PT1/8			PT1/4
Compatible with magnetic switch sensors		Airtac-style CS1 series, Airtac-style DMS series, SMC-style D-Z73/A93 series

Standard Stroke

Inner diameter mm (bore diameter)		Standard Stroke（mm）	Maximum Stroke	Allow Stroke
MF MFC	20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
	40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	800
MFD MFCD MFJ MFCJ	20	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	..
	25	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300	300	..
	32	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	..
	40	10 15 20 25 30 40 50 60 75 80 100 125 150 160 175 200 250 300 350 400 450 500	500	..
MSF MTF	20	10 15 20 25 30 40 50 60 75 80 100 125 150	..	..
	25	10 15 20 25 30 40 50 60 75 80 100 125 150	..	..
	32	10 15 20 25 30 40 50 60 75 80 100 125 150	..	..
	40	10 15 20 25 30 40 50 60 75 80 100 125 150	..	..
